Recoiler – Horizontal Cable Out

£229.00£404.99 excl. vat

The compact recoiling mechanism allows for the smooth retraction of armoured headphone cables when not in use.

Description

Easy Cable Retraction

The Recoiler is a simple yet robust mechanism that smoothly retracts your headphone cable when not in use. It combines with our range of headphone/handset options to create a cable free and tidy installation.

Recoiler - Horizontal Cable Out, Right Cable Recoil Direction

Easy to Install

The unit is supplied pre-wound for easy installation. Once fitted cut off the cable tie and your Recoiler will be ready to use. Simply follow our instructional video for a step-to-step installation guide.


Play Options

The Desktop Heavy Duty Handset comes in two play options.

Standard – Works like any other handset, simply connect to your audio playback device and listen to the audio.

AutoPlay – When coupled with a compatible device (such as our SoundClip range of audio players) audio can be triggered when lifted from the mount, and then stopped when replaced.

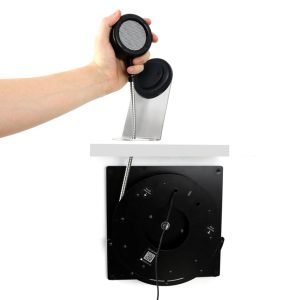

Recoiler - Horizontal Cable Out, Heavy Duty Handset in use

Recoiler Horizontal Cable Out, Heavy Duty Handset

Heavy Duty Handset

Use alongside our Heavy Duty Handset and Magnetic Hanger

Single Cup Headphone

Use alongside our Single Cup Headphones and Magnetic Hanger.

Recoiler Horizontal Cable Out, Single Cup Headphones
Recoiler - Horizontal Cable Out, Double Cup Headphones

Double Cup Headphones

Use alongside our MKII Headphones and Modern Hanger


Hearing Loop Version

We offer a Hearing Loop version of the Heavy Duty Handset which provides the same high quality audio as the standard HDH but with included T-Coil technology, making it compatible with hearing aids. This version comes with a branding label as standard, depicting the universal T-Coil symbol.

Select this option during checkout and somebody will be in touch to discuss your label requirements after purchase.



Hearing Loop Heavy Duty Handset Black Label Hand Model

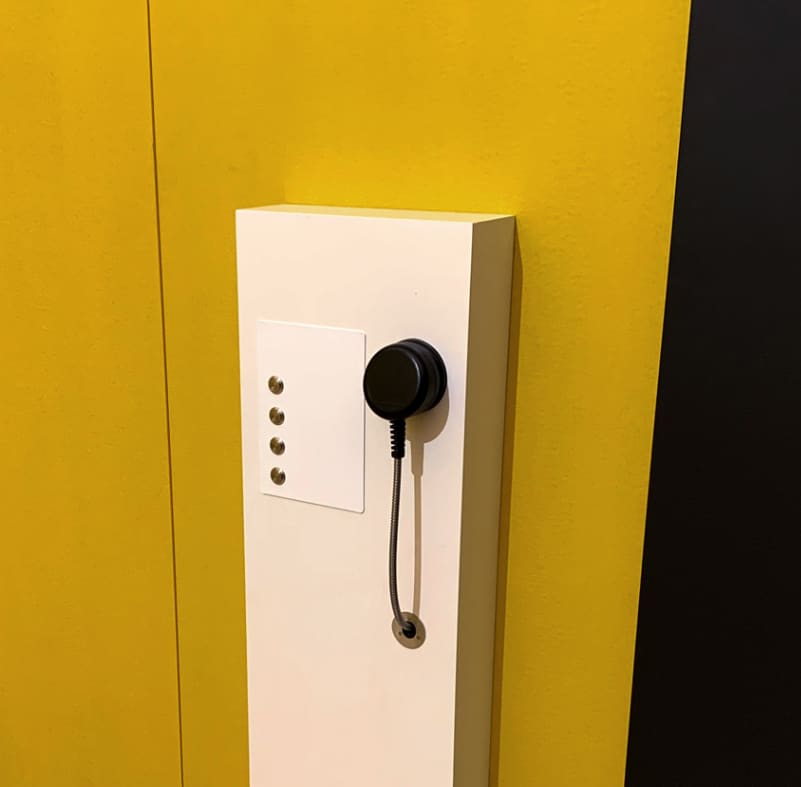

Recoiler Horizontal Cable Out at The Hold

Adjustable Cable Length

Easily determine how much excess cable is available for users with the supplied Cable Lock Clamp. You can use up to 1200mm of armoured cable.


Cable Recoil Direction

The unit can be used to recoil in either a left or right direction (refers to the cable position) – which direction you require will depend on the installation space available.


Recoiler - Horizontal Cable Out with Cable Roller Protection

Extra Cable Protection

The Recoiler is supplied with a Cable Guide & Cable Roller to further protect and lead the armoured conduit into the correct horizontal direction.




SoundClip/VideoClip Configuration

Use the unit alongside our range of audio & video players. Simply fit your player to either side of the Recoiler & connect the 3.5mm jack to the player.



SoundClip 12 Angled

Custom Branding Labels

Custom Branding Labels

If using a standard HDH you may want to add a logo, instructions or just some colour to your Heavy Duty Handset. You can thanks to the optional Customised Branding Labels. Choose this option at checkout, simply send us your artwork or logo and we’ll supply your handset(s) with a label attached plus spares.

Additional information

Weight2 kg
Dimensions40.3 × 240 × 240 mm
Pulling Force

5-9N

Hole Cut Out Size

Cable Guide: Ø35mm

Colour

Black, Silver Conduit

Armoured Cable Length

1350mm – Full Cable
1200mm – Available Cable after Cable Clamping

3.5mm Cable Length

500mm (+/- 10mm)

Downloads

Downloads

Recoiler – Horizontal Cable Out Manual

0.6MB – March 2022 V1.0

Autoplay Setup Guide (Not applicable to MKII Headphones)

0.1MB – October 2022
