VideoClip HD6

VideoClip HD6 – Illuminated 6 Buttons/PIR/Looping

£175.00£190.00

Full High definition solid state video player, button activation, PIR or looping playback possible. Illuminated buttons supported.

Clear
SKU: N/A Categories: , Tag:

Description

HD Media Player

VideoClip HD6 (VC-HD6) is our custom manufactured High Definition digital media player designed to offer amazing quality and functionality at a reasonable price. With the VC-HD6 you are able to display videos, images and audio through a screen/monitor via HDMI input. It can play content in a looping fashion or be programmed for push button activation, allowing users to select what to watch. Media files are played from either an SDHC card or USB stick (card included with test content preloaded) with buttons configured through the use of a simple ‘Autoplay.txt’ file.

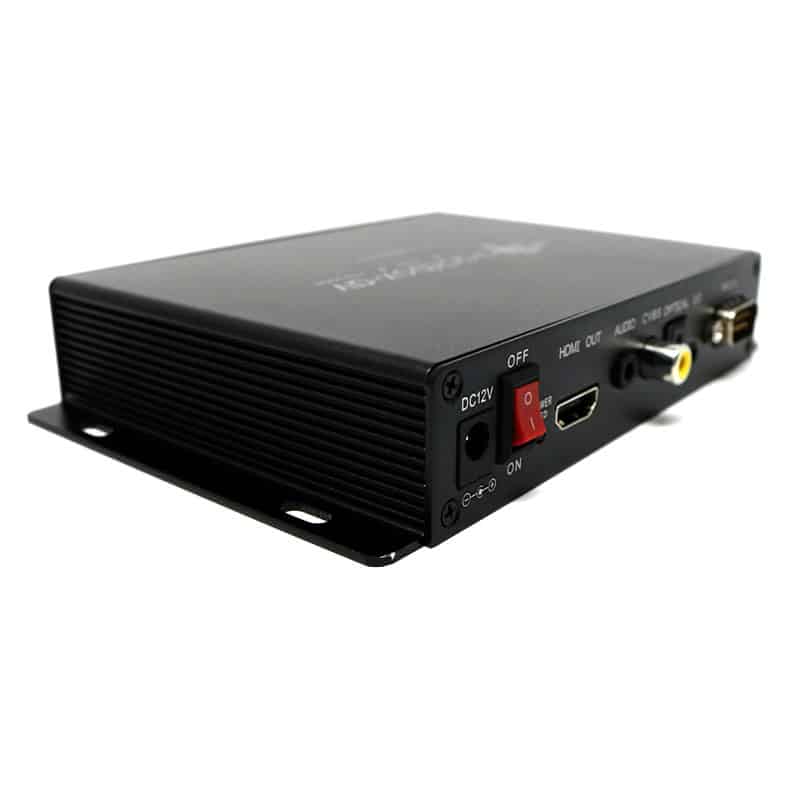

Video Clip HD6 Player Audio Inputs Side Angle

Video Clip HD6 Player Audio Inputs

Ease of Use

The primary application for the VideoClip HD6 is high definition video or image exhibits within museums and the retail sector. It’s designed to offer a great quality image on even the largest displays. What stands the VC-HD6 apart from the competition is its ease of use, high quality for such a reasonable price and the ability to allow users various controls through button programming, including Volume /- and Next/Previous commands (see manual for more information on programming the VC-HD6).


Key Features

  • Full HD, high quality on even the largest screens
  • Highly programmable button inputs
  • Looping content or 6 button activation
  • Illuminated button support
  • Can allow users volume up/down control
  • Easily programmed attracta screen
  • Display Audio, video or images
  • Compatible with multiple media formats
  • Slideshow with multiple transition options
  • Multiple storage options
Video Clip HD6 What You Get

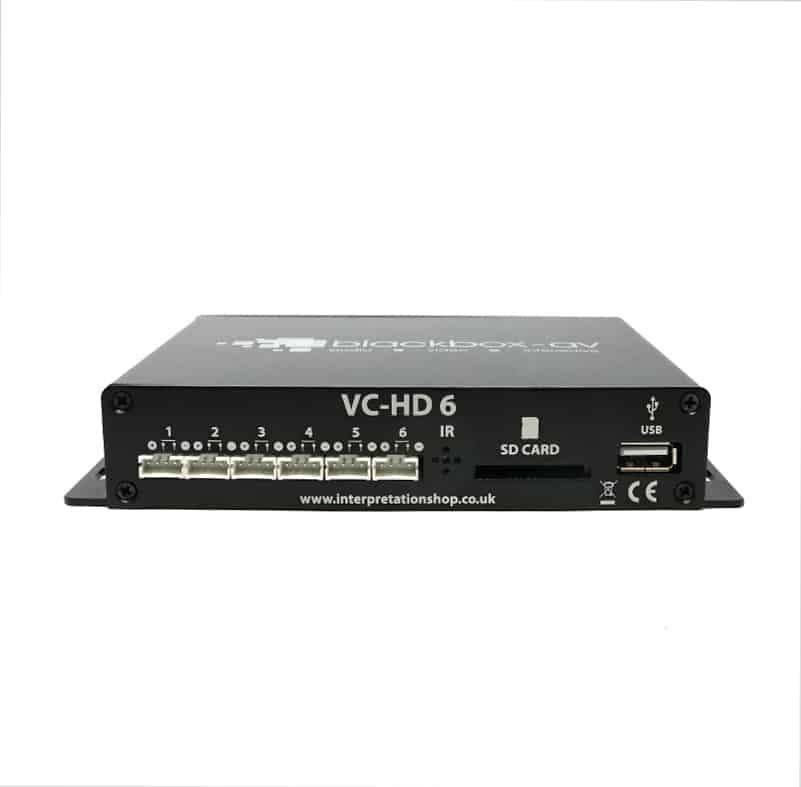

Video Clip HD6 Button Inputs

Button Connections

The VideoClip HD6 is provided with 6 x 1 Meter button connection cables which allows you to solder buttons on. If buttons are purchased from us alongside the VCHD-6 they will be provided pre-soldered.


Illuminated Buttons

When used with illuminated buttons the buttons will remain on when waiting to be triggered, once triggered only the button currently playing content stays on. Buttons programmed to allow users volume control will remain constantly on no matter what.

HDMI – VGA Converter

If you intend to use the VC-HD6 via a VGA cable (and screen) then you will need the additional HDMI – VGA Converter. Simply select this from the dropdown above.

Coming Soon: VC-HD 16 Button with amp!

Additional information

Weight 0.2 kg
Dimensions 100 × 132 × 27 mm
Output resolution

1080p Full HD, 1920×1080, 25-30fps

Output

1 x HDMI, 3.5mm jack

Power

DC12V

Video formats supported

AVI, MOV, DIVX, MP4, RM/RMVB, TS, M2TS, MTS, MKV, FLV, DVD-ISO, BD-ISO, VOB, MPG, DAT, ASF, TP, TRP, WMV, IFO, SWF, 3GP, EVO, OGM

Audio formats supported

MP3, WMA, WAV, OGG, FLAC, AAC, LC-AAC, AP (under 128KHz)

Image formats supported

JPEG, BMP, GIF, PNG, TIFF

Included in the box

VideoClip HD, 12v power supply, HDMI cable 1 Meter in length, Remote Control, 6 x button cable adapters (included only with button activation type), SDHC Card

VESA Card Support

100mm x 75mm

Memory Card Support

SDHC, USB (Max Size 32GB)

Downloads

Manual(s)

VC-HD6 Manual v2.1

0.7MB – July 2017


Downloads

Button Templates

60.5MB – May 2018

VC-HD Formatting Instructions

1.2MB – August 2014
