22 Inch Open Framed Screen

HD 22″ Open Frame Video Screen & Media Player

£499.00

21.6″” Open Frame HD Video Player – with inbuilt player and easily mounted via wing mounts. Can play button activated content via 12 buttons.

Clear

Description

22VS

The 22″ Open Frame Video Screen (22VS) is an all in one media player and screen. It’s used to display HD video, images and audio. It can play content in a looping fashion or be programmed for push button activation (up to 12 activation). Media files are played from an SDHC card (card included with test content preloaded) or USB with buttons configured via placing content in appropriately named folders. It has inbuilt stereo speakers and also features a 3.5mm audio out. The open frame design allows it to be easily mounted within custom built cases or other such installations.

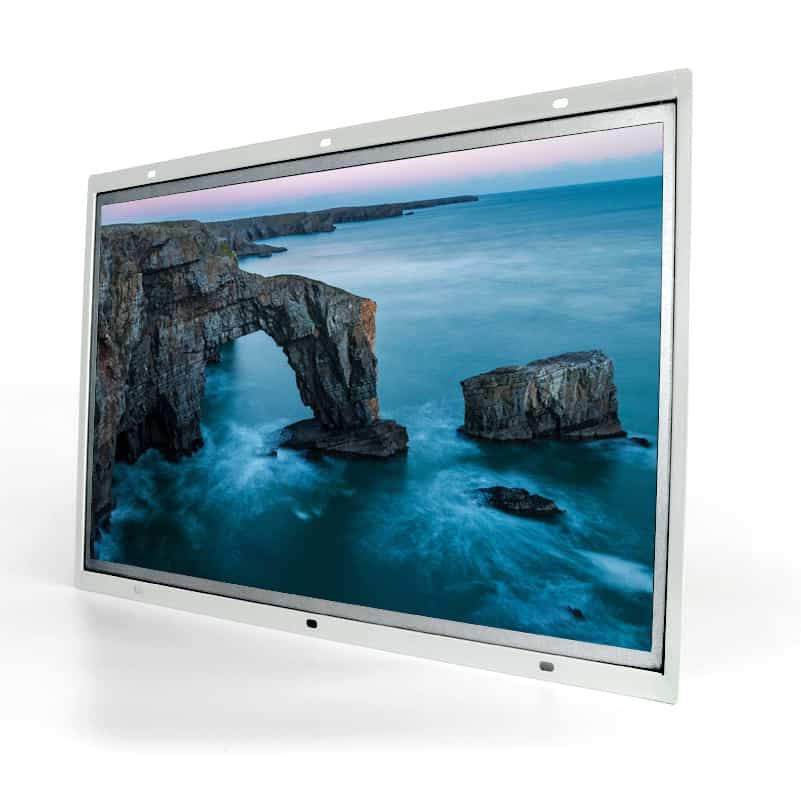

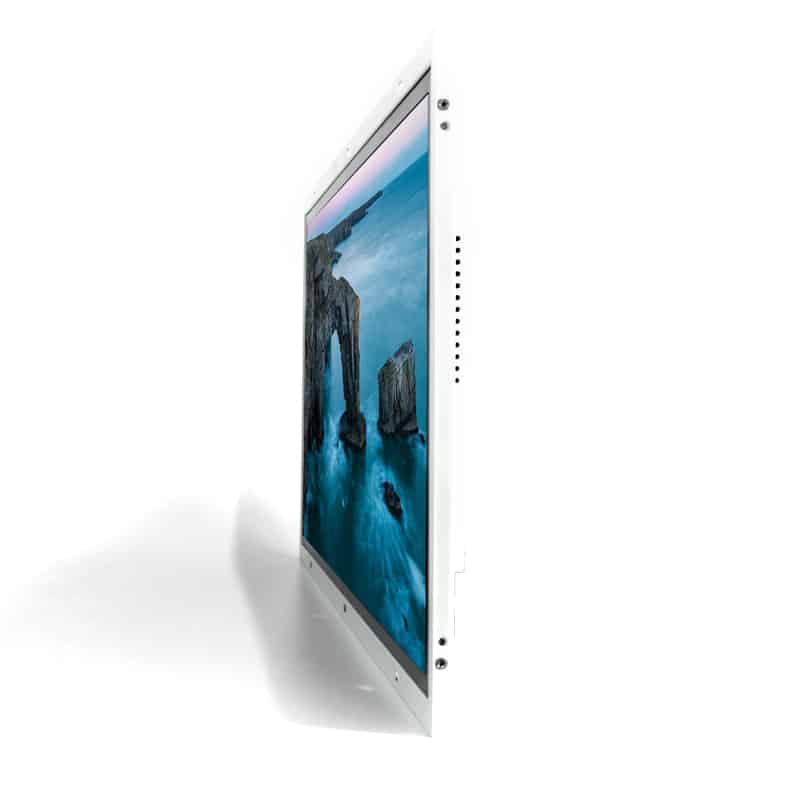

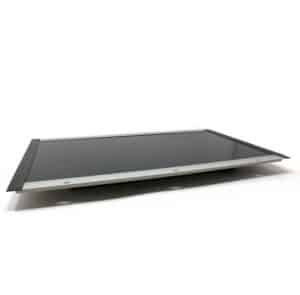

22 Inch Open Framed Screen Low Angle

3.5mm Audio Out

It has inbuilt stereo speakers and also features a 3.5mm audio out. The open frame design allows it to be easily mounted within custom built cases or other such installations.


HD Video

The 22″ Open Frame Video Screen (22VS) is an all in one media player and screen. It’s used to display HD video, images and audio. It can play content in a looping fashion or be programmed for push button activation (up to 12 activation). Media files are played from an SDHC card (card included with test content preloaded) or USB with buttons configured via placing content in appropriately named folders.

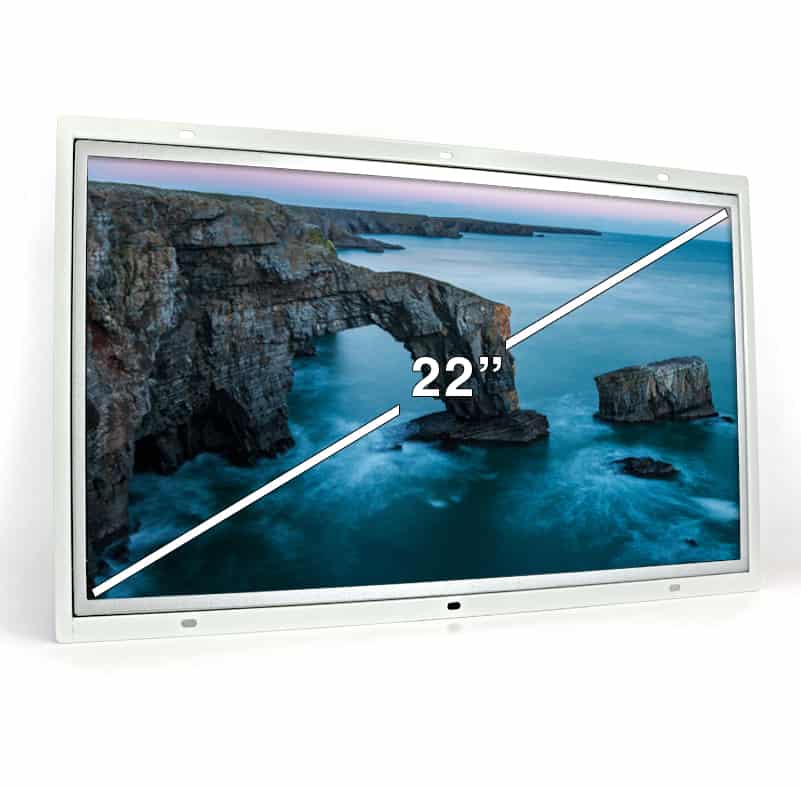

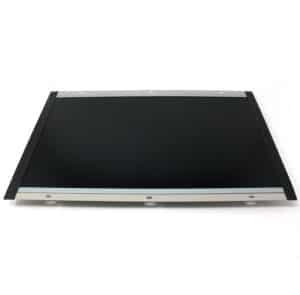

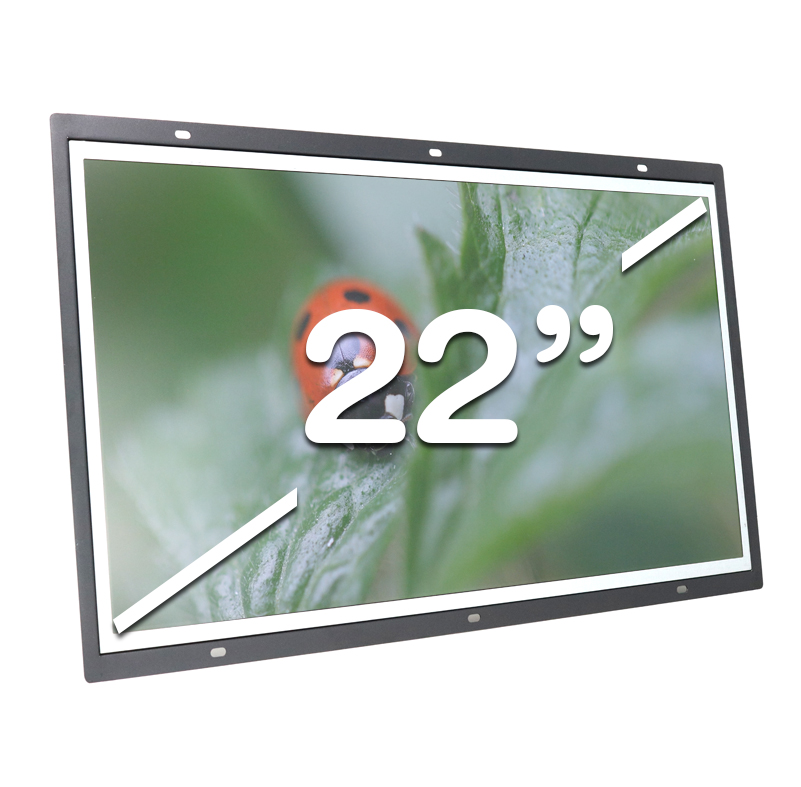

22 Inch Open Framed Screen Front View

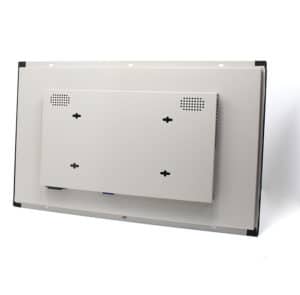

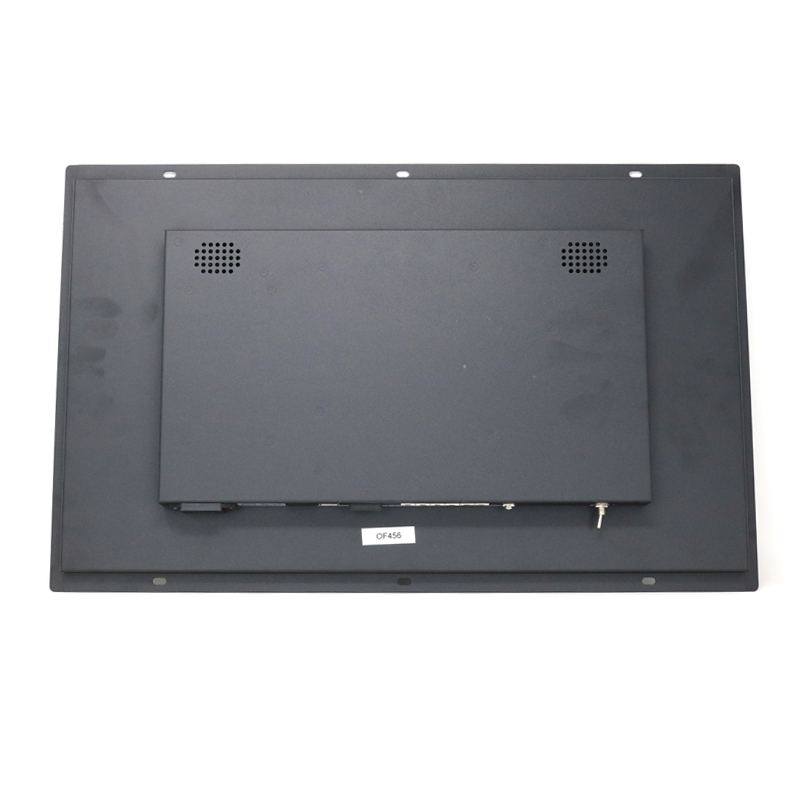

Back of 22 Inch Open Framed Screen

Key Features

  • 1080p Video player built in
  • Open frame with fixing wings for easy mounting
  • Plays video, images or audio
  • Looping or 12 button activated
  • Buttons can be programmed for different controls including volume
  • Built in speakers
  • 3.5mm Audio Out

Buttons

The 22VS is supplied with button connection cables however no buttons.

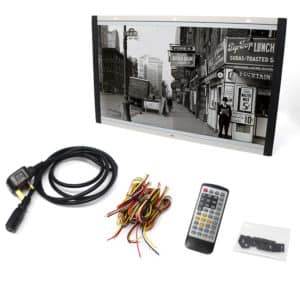

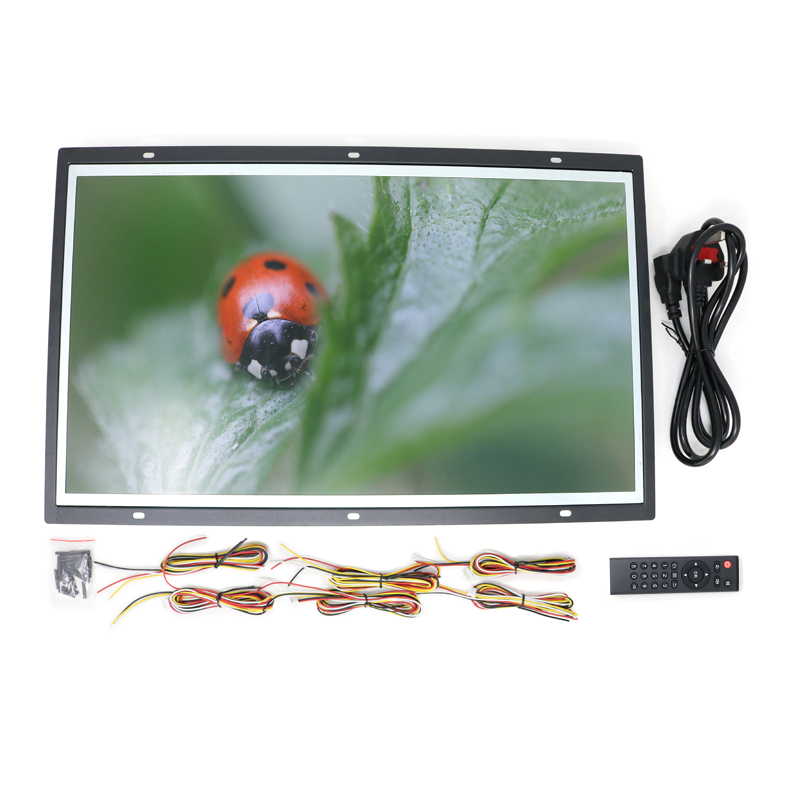

What You get With 22 Inch Open Framed Screen

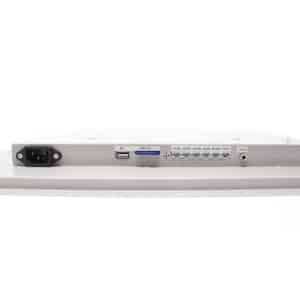

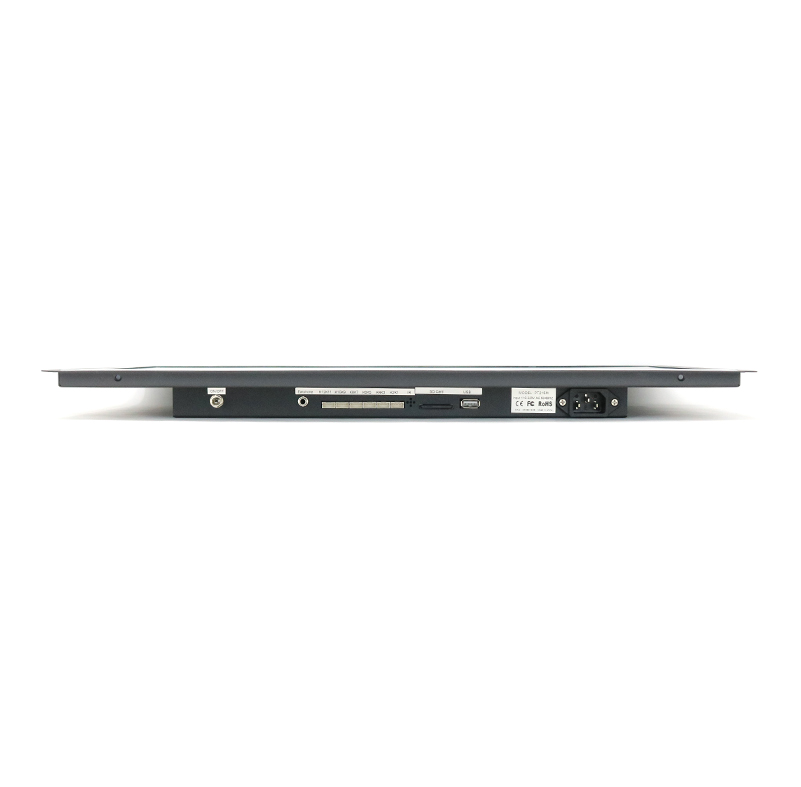

Button Inputs for 22 Inch Open Framed Screen

Options

The 22VS can output to the included speakers, or if you would rather use headphones please specify this in the options above. As standard the 22VS will output to both speakers and headphones at the same time, which means disabling the speakers is necessary if you wish to output to only headphones (something we need to do here).

Additional information

Weight 3 kg
Dimensions 517 x 41 x 324 mm
Screen Size

21.6"

Fixing Options

Fixing Wings and Vesa Mounting Holes

Button Inputs

12 Content Activation (Buttons can be programmed for other functions)

Storage Medium

SDHC or USB

Playable Format

Video: MPEG1, MPEG2, AVI, Audio: MP2, MP3, PCM (.wav) AC3 WMA, Images: JPG

Video Resolution

1920 x 1080 Full HD

Output Type

With Speakers, With 3.5mm Out

Downloads

Manual(s)

22VS User Manual v1.3

1.7mb – November 2017


Downloads

22VS Line Drawing

0.03mb – August 2015

22VS Line Drawing

0.08mb – Oct 2018
