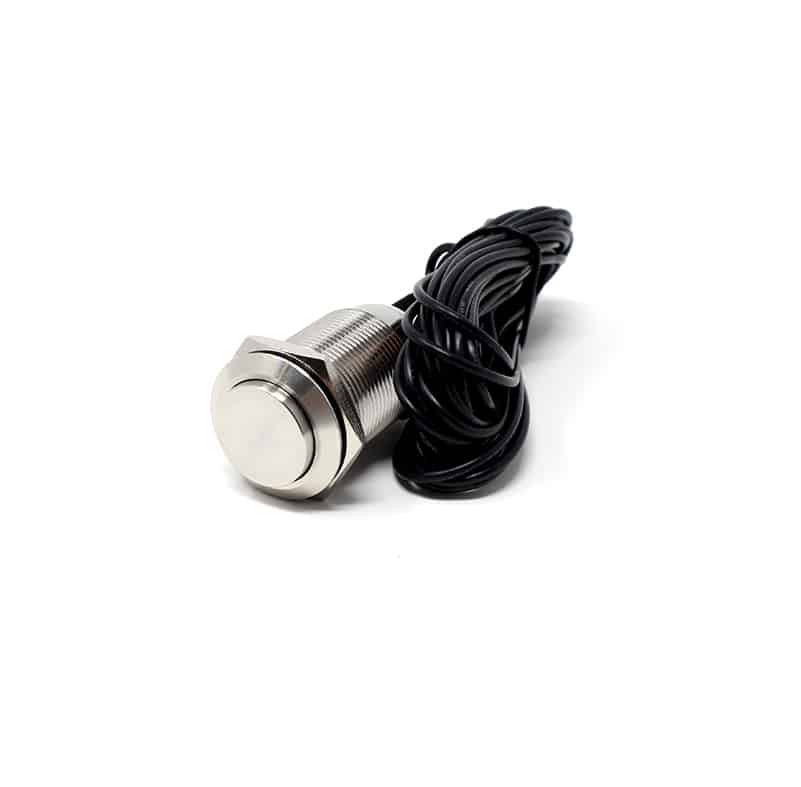

19mm Stainless Steel Push Button

£10.00£12.00 excl. vat

The 19mm Stainless Steel Push Button is a contact switch. It can be connected to our range of audio or video players, simply press the button to activate a video or audio file.

Clear

Description

Stylish and Reliable

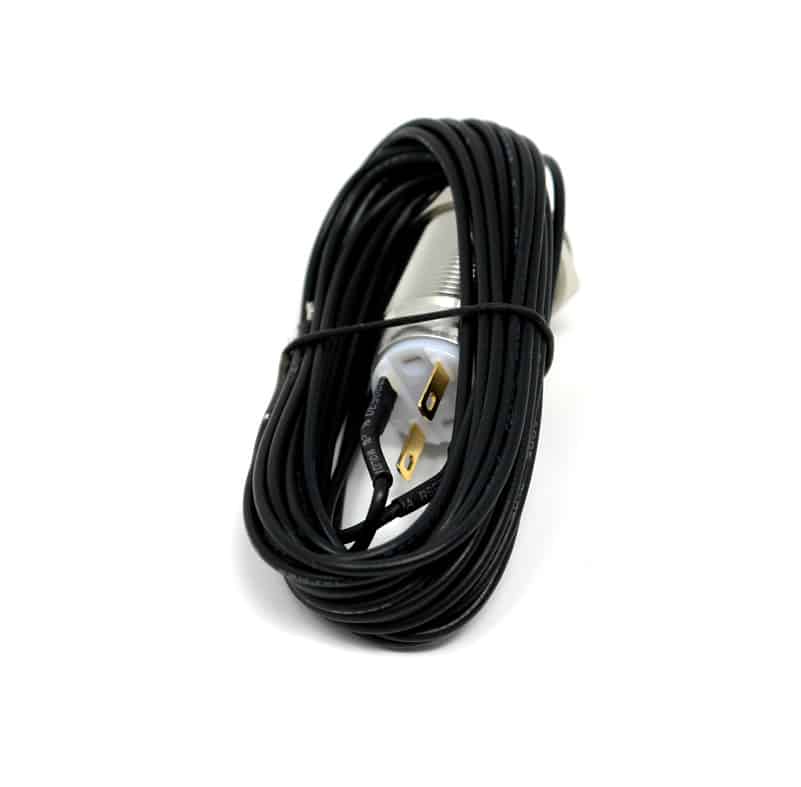

This style of button has become a classic in heritage applications. It’s style and reliability are legendary – the obvious choice for an indoor exhibit. Push buttons are used alongside multiple blackbox-av products, such as the SoundClip, to activate audio or visual content. Each button is supplied with a cable length of 2 meters.


Perfect for Installations

Provide visitors with an easy method of activating content. Simply choose the thread size suited to your panel/bespoke build and install.

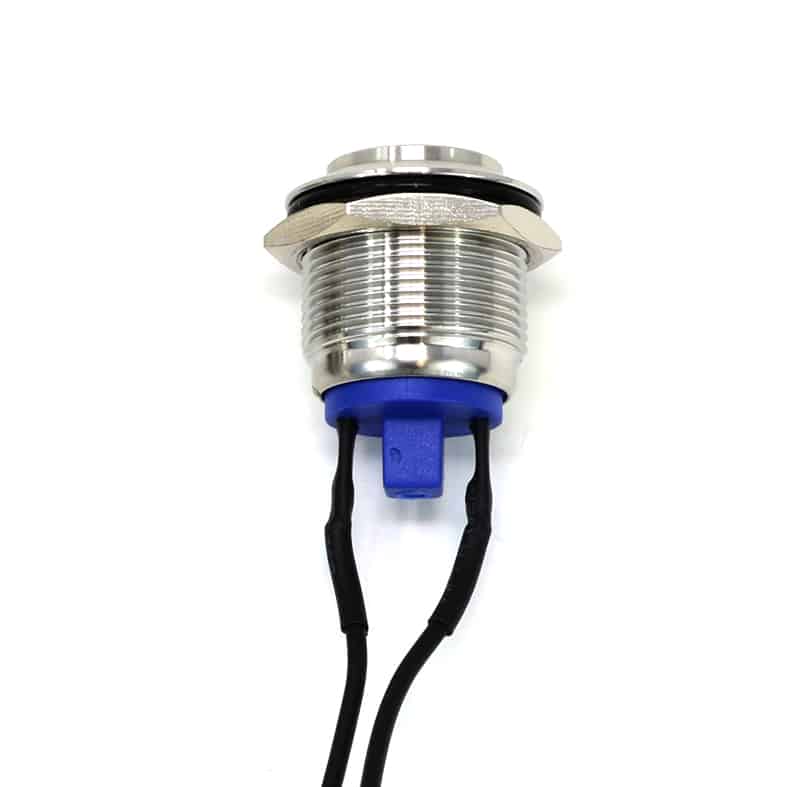

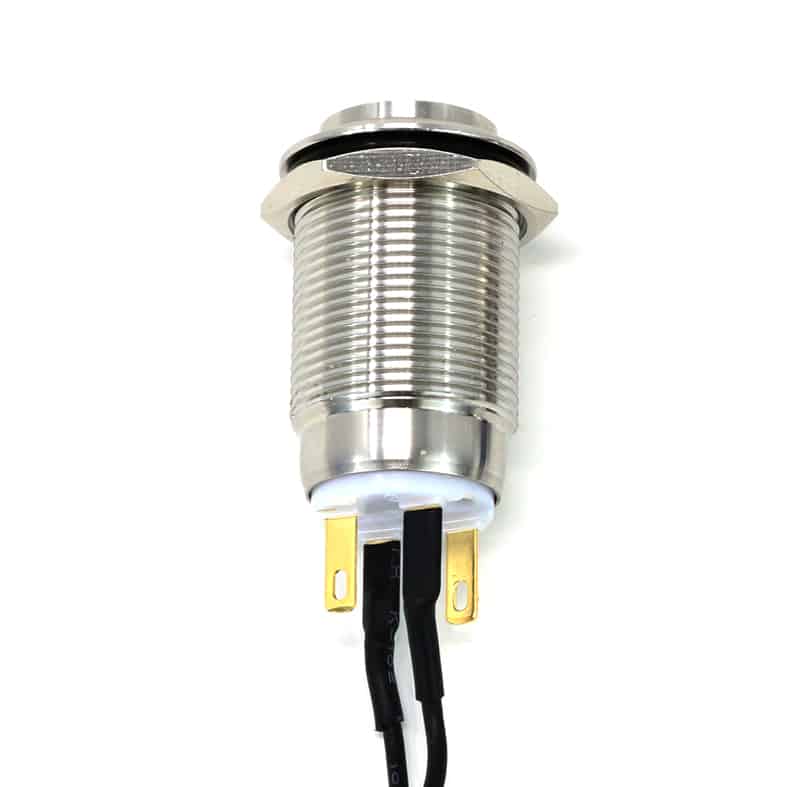

Button Thread Options

The Stainless Steel Push Button supports two thread sizes, 11 & 21mm.


SoundClip & VideoClip Compatible

Push buttons are used alongside multiple blackbox-av products, such as the SoundClip & VideoClip, to activate audio or visual content.

Additional information

Weight0.1 kg
Dimensions22 × 22 × 42 mm
Cable length

2M

Thread Size

11 mm Thread, 21 mm Thread

Terminal

Screw and Pin (2.8×0.5)

Max. Switch Rating

11mm: 2A 48VDC
21mm: Ith-5A UI-250VAC

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000m Ω

Dielectric Strength

2000VAC

Operational Temperature

-20°C ~ +55°C

Mechanical Life

1,000,000 Cycles

Electrical Life

11mm: 200,000 Cycles
21mm: 50,000 Cycles

Contact Material

Silver Alloy

Max. Panel Thickness

11mm Thread: 10mm
21mm Thread: 20mm

Suggested Panel Cutout

19.2mm

Torque

5 ~ 14Nm

Operational Pressure

≈4N

Downloads

Downloads

Push Buttons Spec Sheet

0.5MB – March 2019
