SoundClip-V2, 2 Button, Looping or PIR

£145.00 excl. vat

SoundClip-v2, the 2 button solid-state stereo audio playback device. (Buttons are not included with the product).

If you need an extension cable for this device purchase one here.


Solid State Audio

The SoundClip-V2 is the first in our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via the screw terminals.

SoundClip V2 and 12 Outputs

Play Modes

.mp3 files are stored on an SD card (included) or USB Stick which is then inserted into the SC-V2.

The SC-V2 can be programmed to play up to 99 files in a number of ways via a Mode.txt file:

  • 1 file activated by each button (interruptible / non-interruptible)
  • Autoplay on headphone pickup (with our autoplay range)
  • PIR activation
  • Looping / holding track with additional button activation
  • Next / Previous track mode
  • 1 Button triggers a folder of tracks, same button to skip through

The SC-V2 can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation).

Output Options

  • Up to two handsets / headsets
  • Up to two speakers
  • Lighting – lights will activate when content plays, and deactivate when content stops

Note: Only 1 Autoplay device can be paired with the SC-V2

SoundClip V2 Inputs

SoundClip V2 Components

Easy Fitting

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-V2’s design and its two fixing wings means it can be installed securely into any suitable space.

Key Features

  • Supports 2 button inputs
  • Inbuilt 10w dual channel Amp
  • Dedicated button volume inputs
  • Easy to programme via SD card or USB Stick
  • Simple lighting controller (on with content, off when silent)
  • PIR compatible
  • Piezo button compatible
  • Looping / Holding track mode
  • Compatible with our AutoPlay handsets
SoundClip V2 Bird's Eye View

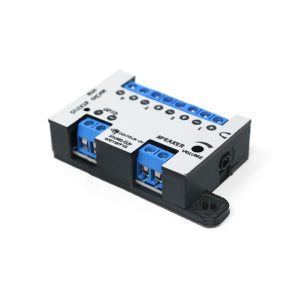

Battery Audio Player

Battery Audio Player
  • Battery Audio Player 24 Left Angle.3
  • .mp3
  • Up to 4 files
  • Looping / 1 message per button
  • 4x Button Inputs
  • 1x (Mono) Speaker Terminal
  • 1x (Stereo) 3.5mm Jack
  • Battery Powered
  • Swappable Batteries
  • PIR Compatible
  • No user volume control


  • SoundClip 8
  • .mp3
  • Up to 99 files
  • 1 message per button
  • Next / Previous track mode
  • Holding / Looping Track
  • Autoplay Headphone Support
  • 12 x Button Inputs
  • Stereo Speaker Terminals
  • 2 x 3.5mm Jacks
  • 1 x Lighting Output
  • Mains Powered
  • PIR Compatible
  • Dedicated Volume Inputs

Additional information

Weight0.4 kg
Dimensions130 × 155 × 28 mm
Message storage medium

SD Card / USB Stick

Maximum number of audio Files

The SC-2 can play a maximum of 99 files

Number of Buttons/Trigger Inputs


Number of Lighting Outputs

1 via the 'GPIO / 12V Out' terminal

Lighting Power Output


Message encoding format


Speaker audio output

10W per channel into 8Ω Speakers

Headphone audio output

2 x 3.5mm audio jack (headphones / handsets etc,)

Speaker connector

2 x screw terminals

12v Out

Power accessories such as low power LED’s or PIR Sensors

Power Consumption

Standby – 0.75W, Playback – 0.9W

Power Supply

External 5.5 x 2.1 DC12V 2A Power Connector



SoundClip-V2 Manual

0.2MB – February 2024

SoundClip-V2 Spec Sheet

0.5MB – March 2023


Button Templates

1.3MB – March 2023

Previous Model (pre2023)

SoundClip 2 Manual

1.1MB – June 2021

SoundClip 2 Spec Sheet

0.5MB – January 2019
