Battery Audio Player

£135.00 excl. vat

The Battery Audio Player is designed for installations where a permanent mains supply is not available. It is powered by an in-built rechargeable battery and can be used with speakers or headphones and triggered using a variety of buttons and sensors.

Description

Battery Powered Solid State Audio

The BatteryAP is a unique battery powered option in our flexible range of high quality audio players. It can be used to present audio through headphones via a single 3.5mm audio jack or a single speaker via a wired terminal.

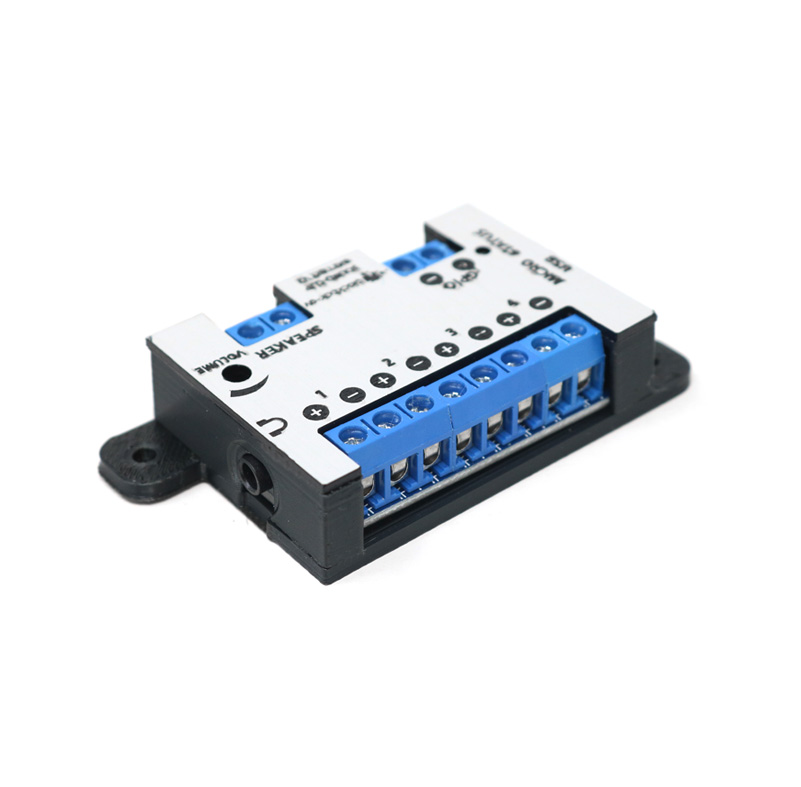

SoundClip Battery right angle

SoundClip Battery with wire

Rechargeable Batteries

The BatteryAP is easily recharged via the supplied charging cable and in-built Lipo battery. After the unit is fully charged it will play continuous audio for around 40 hours (varies depending on content and output type).


Easily Programmed with multiple Play Modes

The BatteryAP is easily programmed via USB with a simple Read file and the correct naming of audio files.

.mp3 files are stored to the internal 8MB Flash Storage Drive via a USB Charge and Sync Cable. The BatteryAP can be programmed to play up to 4 files in a number of ways;

  • 1 file activated on each button press (Interruptible or Non-interruptible)
  • Looping play all (plays on power up)
  • Hold to Play (Loops single track)
  • Hold to Play (Stops at end of single track)

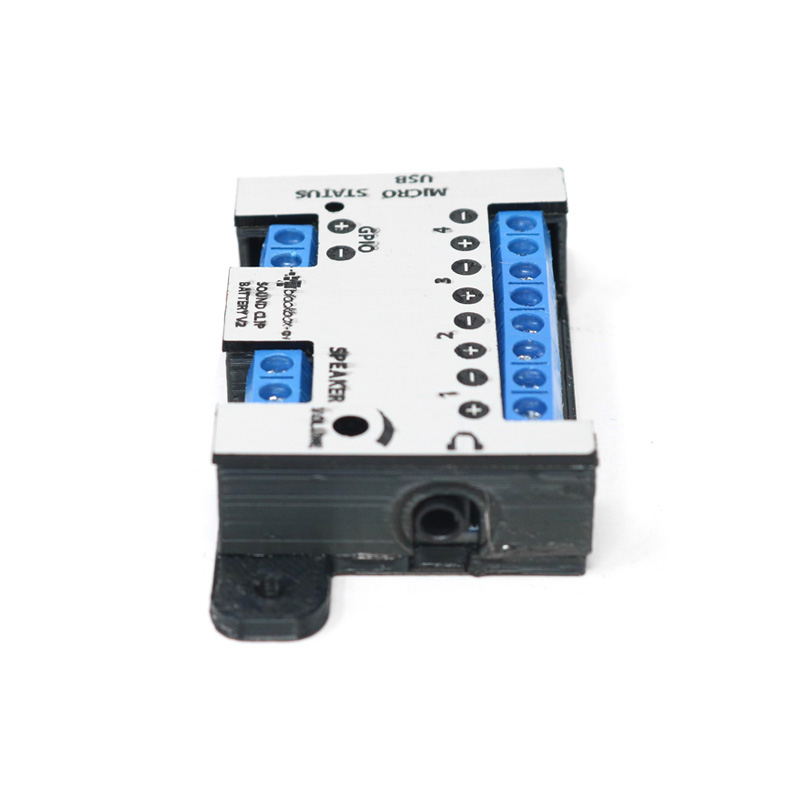

SoundClip Battery front

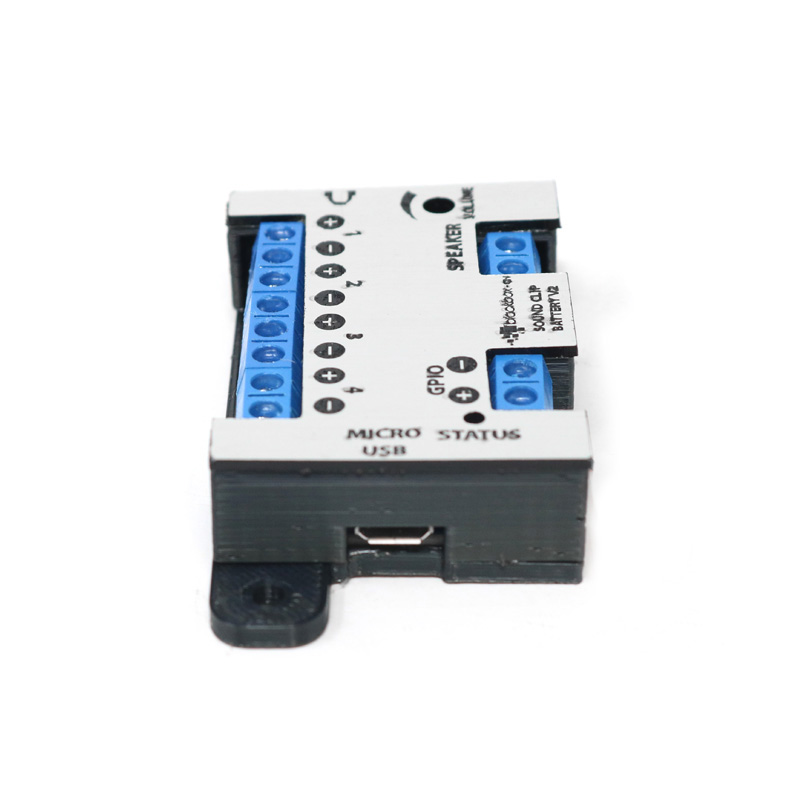

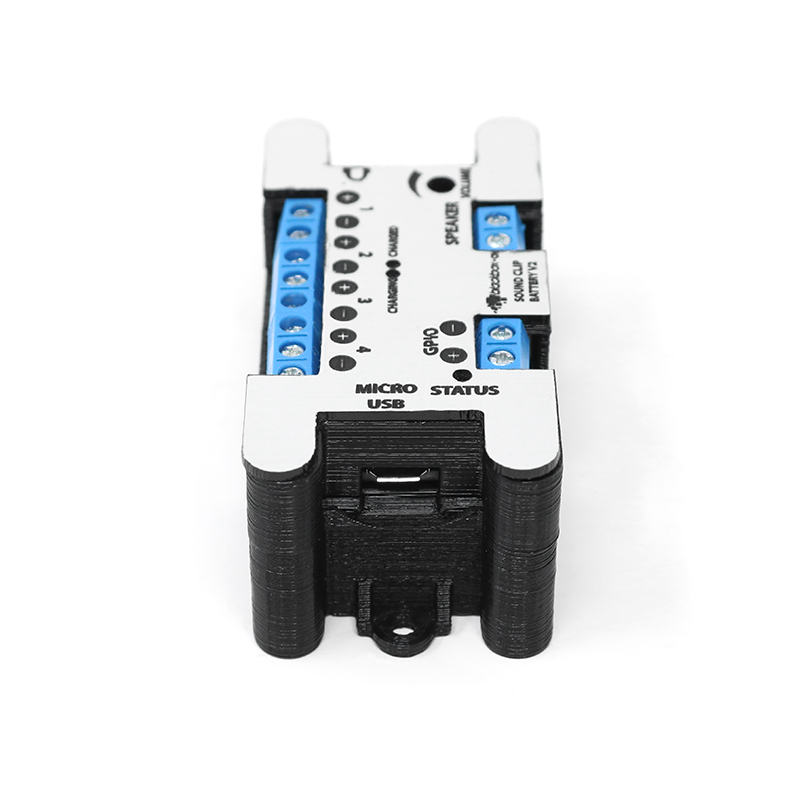

SoundClip Battery with micro-usb port

Key Features

  • 1 x 3W into 4/8ohm Speakers (Mono)
  • 1 x 3.5mm Headphone Output (Stereo)
  • Easy to programme via USB Charge and Sync Cable
  • Supports 4 button / other trigger devices
  • Multiple different Play Modes to choose from

Activated via buttons

The BatteryAP can be activated via buttons (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation). It’s important to note that the BatteryAP does not support our Illuminated Buttons.

View our range of buttons here.


Output Options

  • Up to one handset / headset
  • Up to one speaker

Fitting Options

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the BatteryAP design and its two fixing wings means it can be installed securely into any suitable space.

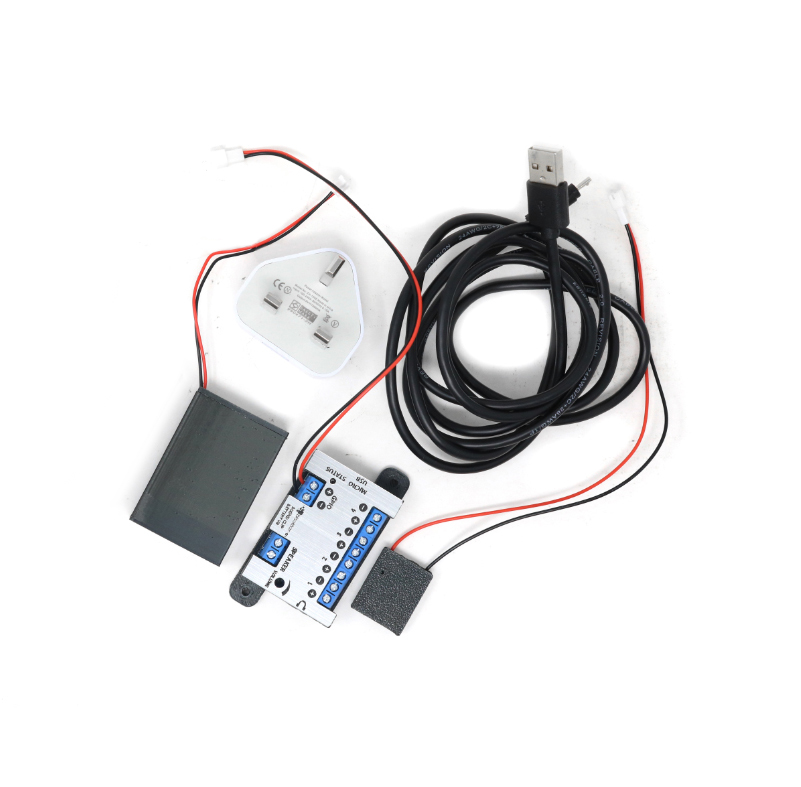

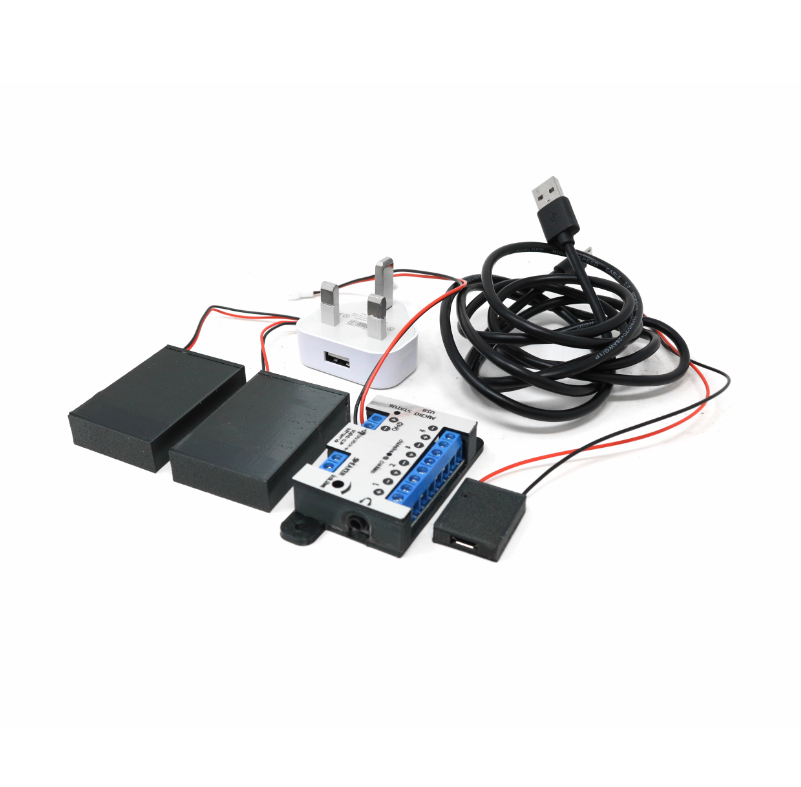

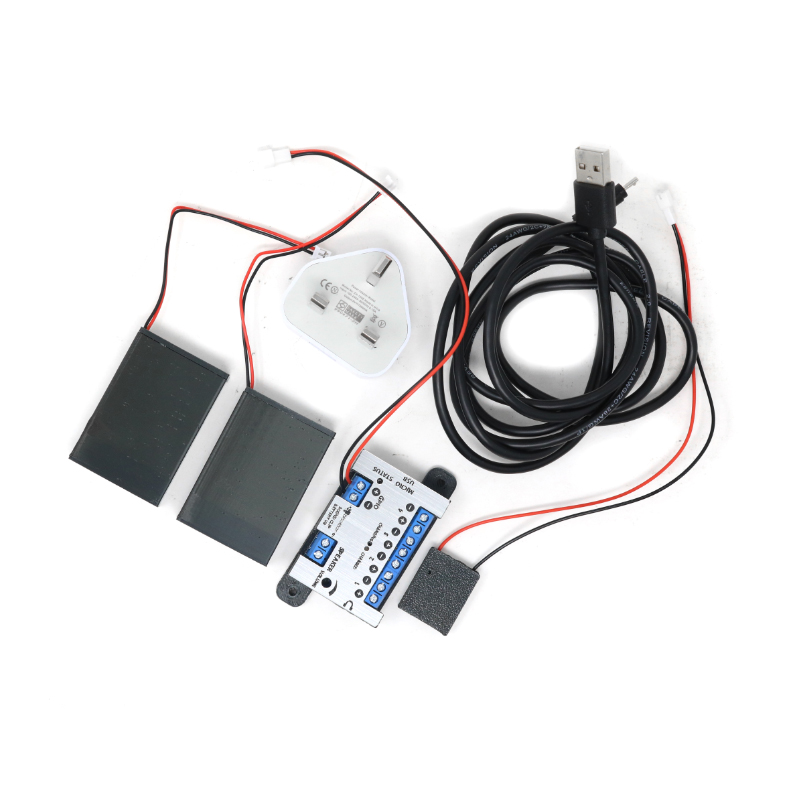

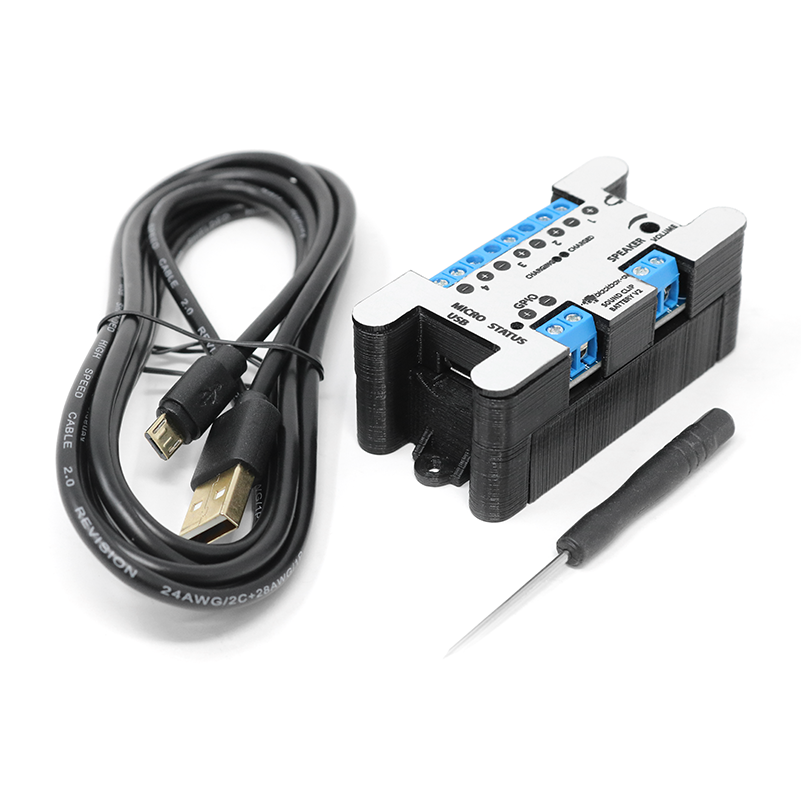

SoundClip Battery with all accessories

SC-2

SC-2
£145
  • SoundClip 2 (2)
  • .mp3 / .wav
  • Up to 99 files
  • Looping / 1 message per button / Next – Prev
  • 2x Button Inputs
  • 2x (Stereo) Speaker Terminals
  • 2x 3.5mm Jacks
  • 1x Lighting Output
  • Mains Powered
  • PIR Compatible
  • Dedicated Volume Inputs

SC-8

SC-8
£185
  • SoundClip 8
  • .mp3/.wav
  • Up to 99 Files
  • Looping / 1 message per button / Next – Prev
  • 8x Button Inputs
  • 2x (Stereo) Speaker Terminals
  • 2x 3.5mm Jacks
  • 1x Lighting Output
  • Mains Powered
  • PIR Compatible
  • Dedicated Volume Inputs

SC-16

SC-16
£225
  • SoundClip 16
  • .mp3/.wav
  • Up to 99 Files
  • Looping / 1 message per button / Next – Prev
  • 16x Button Inputs
  • 2x (Stereo) Speaker Terminals
  • 2x 3.5mm Jacks
  • 1x Lighting Output
  • Mains powered
  • PIR Compatible
  • Dedicated Volume Inputs

SC-8L

SC-8L
£250
  • SoundClip8L
  • .mp3/.wav
  • Up to 99 files
  • Looping / 1 message per button / Next – Prev
  • 8x Button Inputs
  • 2x (Stereo) Speaker Terminals
  • 2x 3.5mm Jacks
  • 8x Lighting Output
  • Mains Powered
  • PIR Compatible
  • Dedicated Volume Inputs

Additional information

Weight0.1 kg
Dimensions75 × 37 × 29 mm
Message storage medium

8MB Flash Memory = 8 minute MP3 files @ 128Kbps

Maximum number of audio files

4 Files

Number of buttons

Triggered by up to 4 Buttons

Message encoding format

.MP3

Speaker audio output

1 x 3 Watts RMS (mono)

Headphone audio output

1 x 3.5mm audio jack (stereo)

Speaker connector

Screw terminals

Battery Life Duration

40 Hours (with full charge)

Power supply

Micro USB 5V

Battery

1 x 2000mah Lipo Battery

Stand-by Consumption

0mA

Playback Consumption

~50mA

Downloads

Manual(s)

Battery Audio Player Manual

0.9MB – Feb 2022 V1

Battery Audio Player Spec Sheet

0.1MB – Feb 2022
