Audio Frame

£399.00£1,180.00 excl. vat

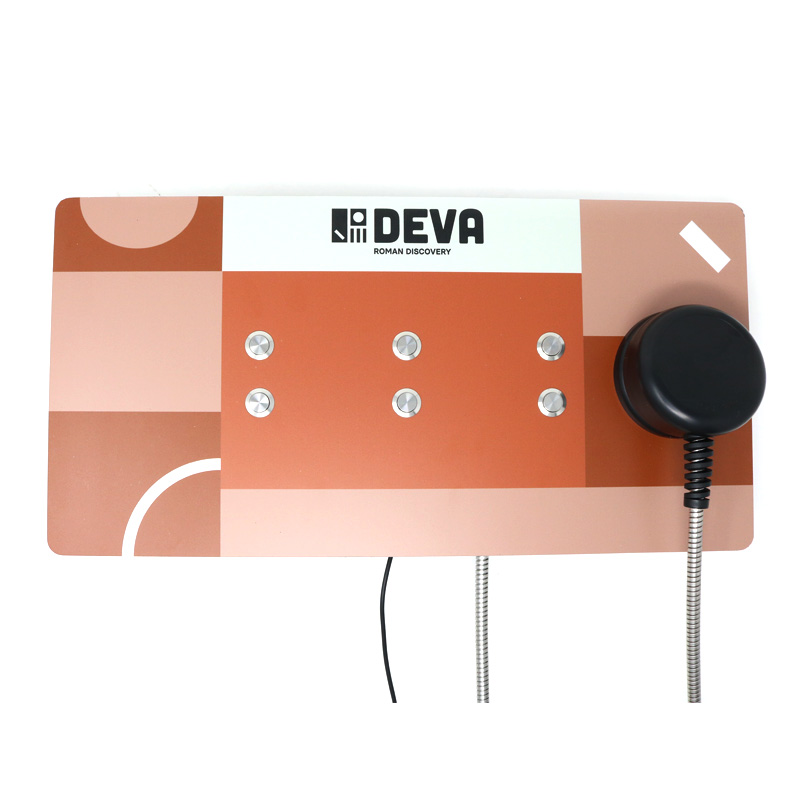

The Audio Frame is our highly customisable plug and play audio point – Complete with 1 or 2 robust Heavy Duty Handsets or 2 x Speakers and a full colour graphic front. Use between 1-12 activation buttons, with 2 separate volume buttons.

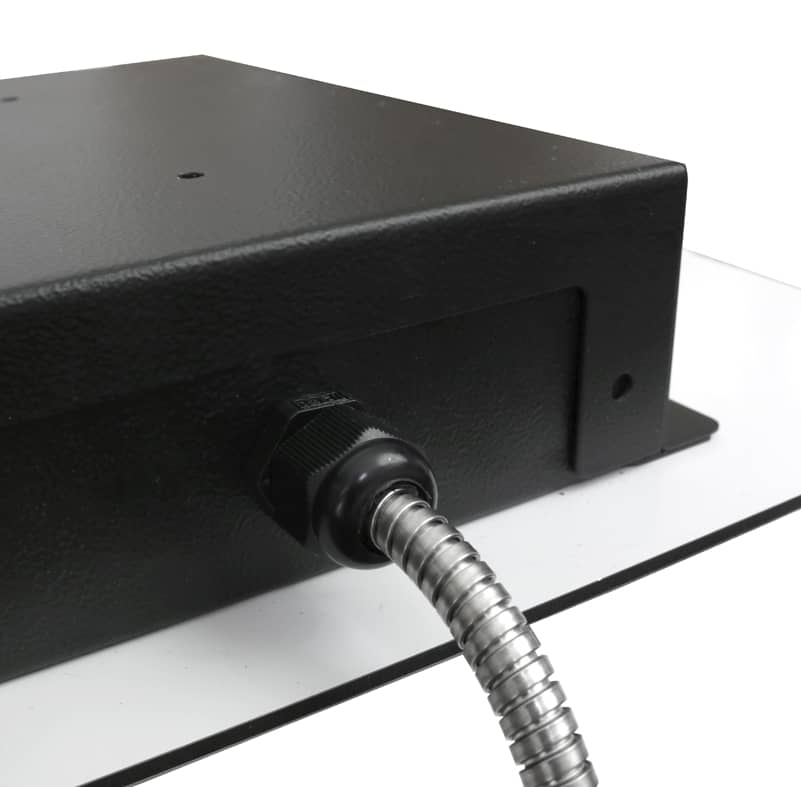

If you need an extension cable for this device purchase one here.


All-in-One Audio Solution

The Audio Frame is the ideal customisable plug-and-play listening point. Use up to 12 buttons (with 2 separate volume + / -), personalise the full-colour graphics panel and output to Handsets or Speakers.

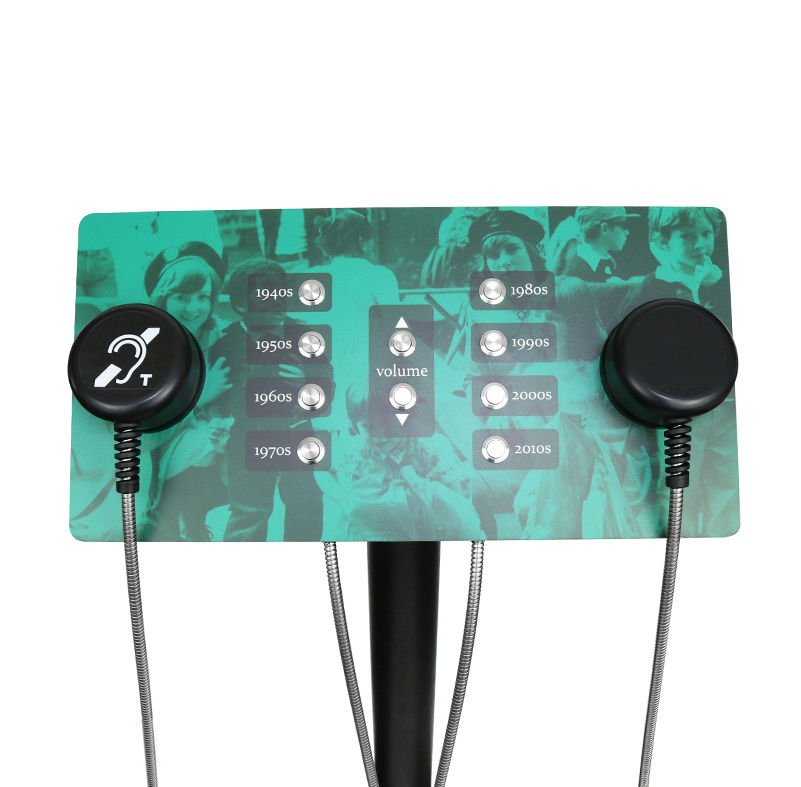

St John's Ambulance Audio Frame with Standard and Hearing Loop HDH

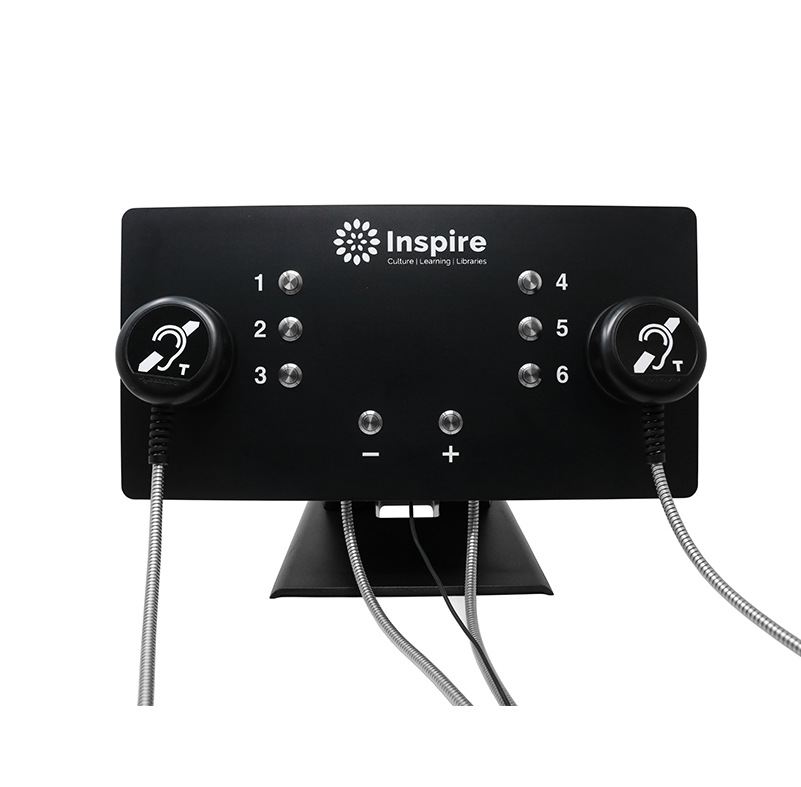

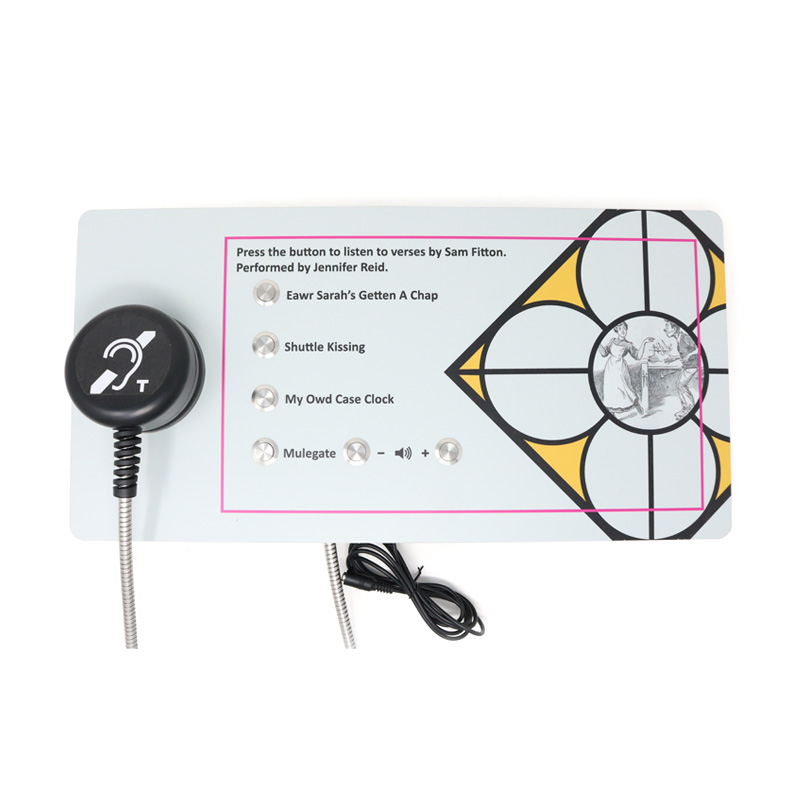

Audio Frame with Button Activation and Audio Playback

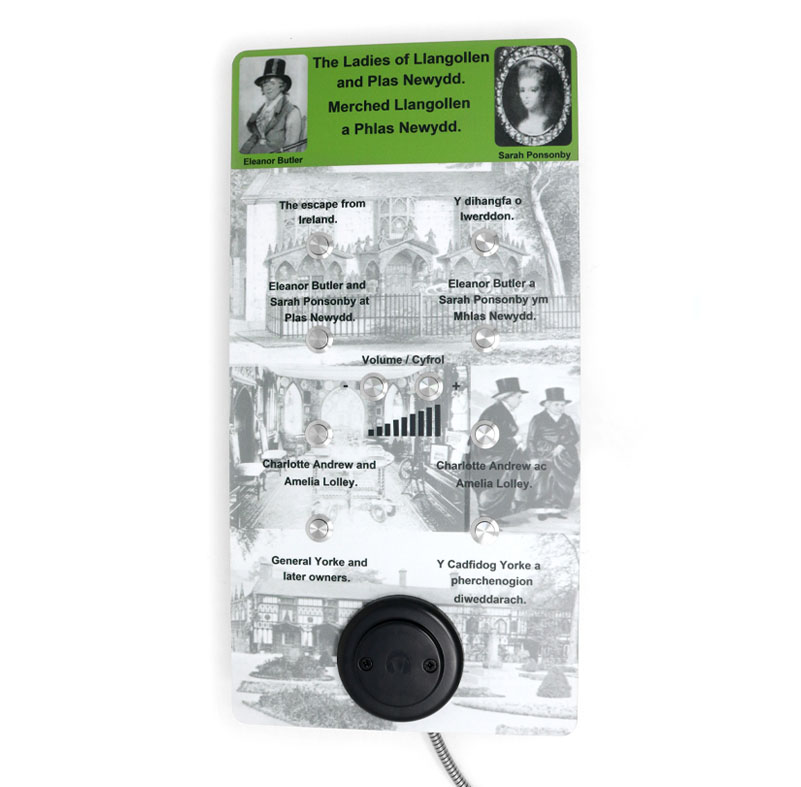

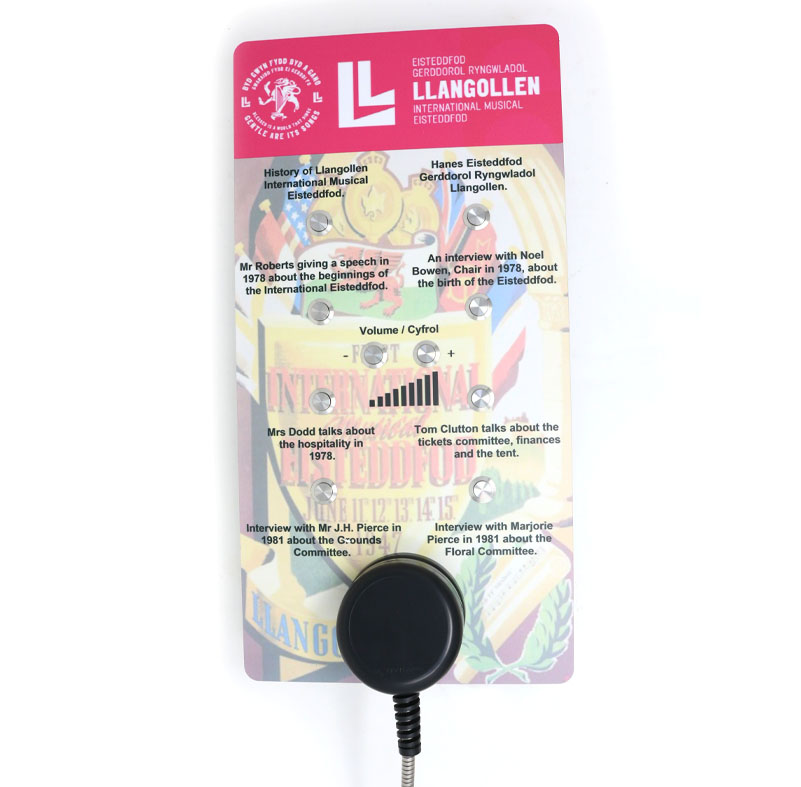

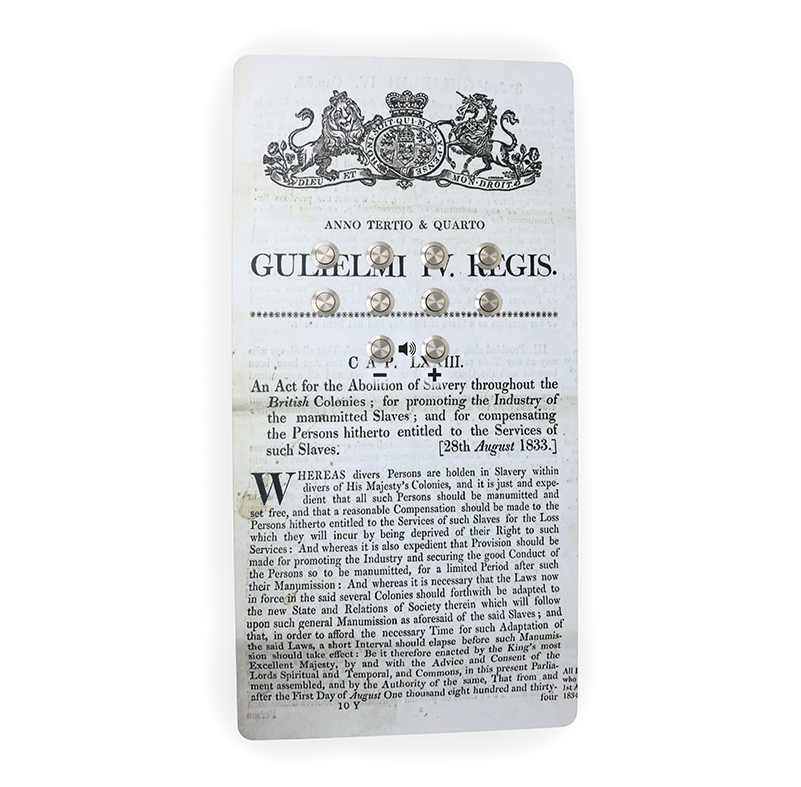

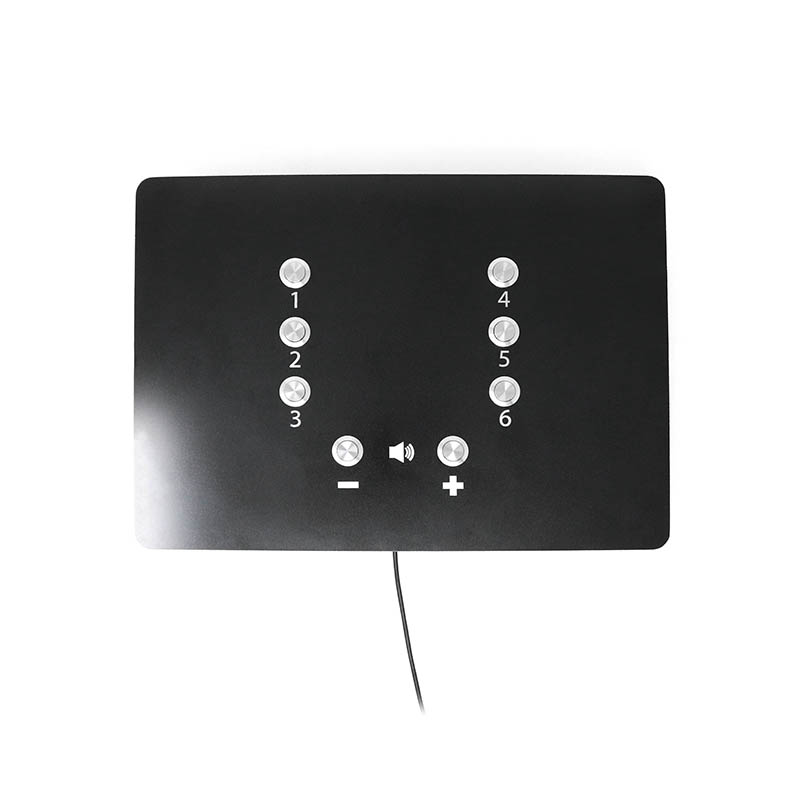

Use anything from 1 – 12 Push Buttons

The Audio Frame offers up to 12 buttons for audio playback (supporting up to 99 tracks if used in ‘next / previous’ or ‘multiple track in folders’ mode), with 2 separate buttons for volume control. The inbuilt audio player also supports a variety of play modes including;

  • Interruptible Playback
  • Non-Interruptible Playback
  • Next/Previous
  • Looping Track

Easy to Update

Update your audio tracks with the rear SD Card port (SD Card supplied). Secure the connection by fitting the included cap. (USB is also an option, requiring you to open up the Audio Frame).

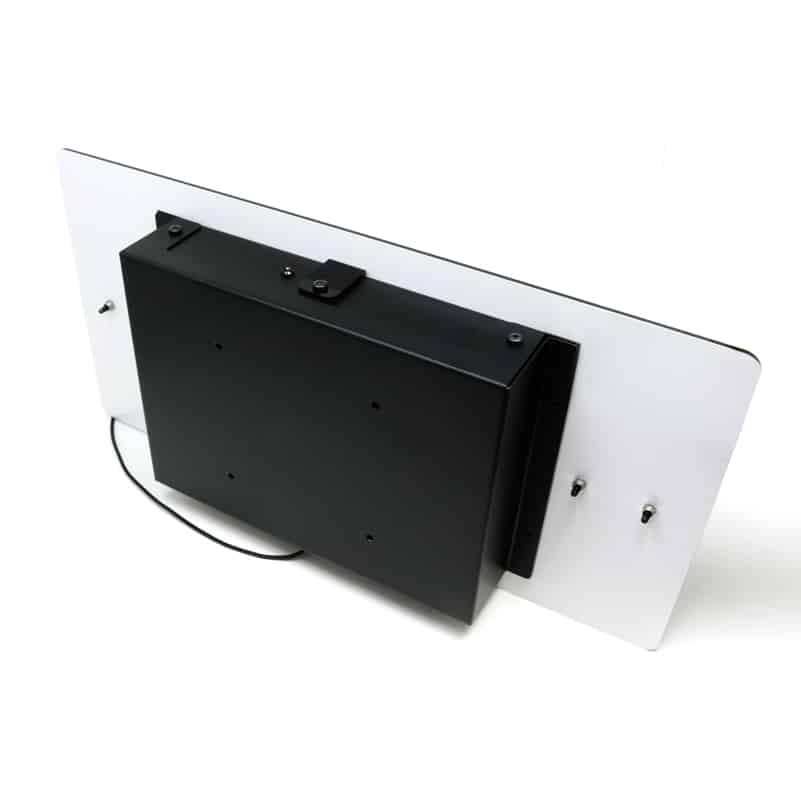

Back of Audio Frame with in-built speakers on top

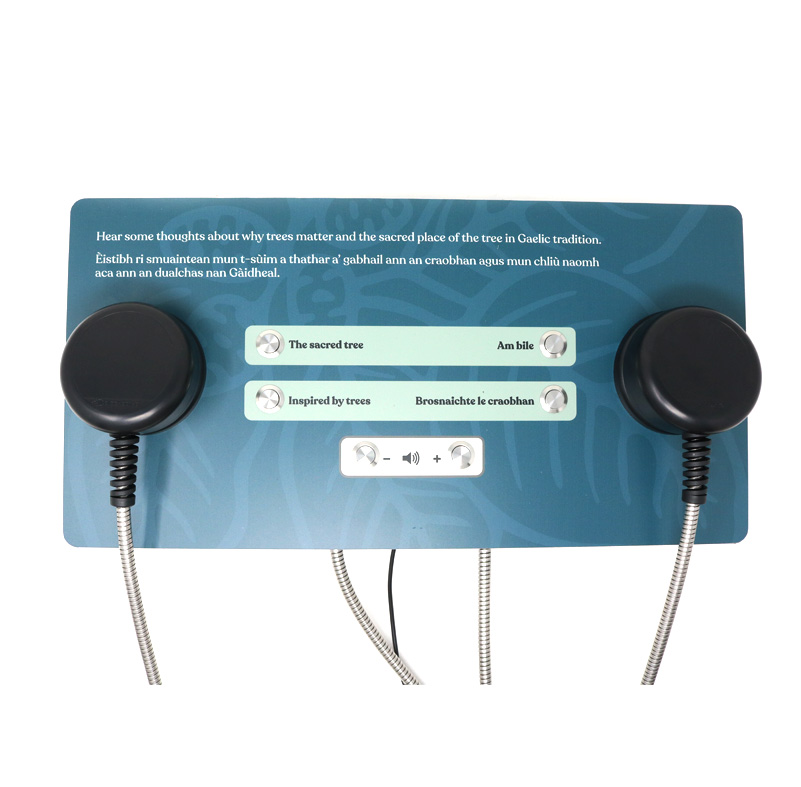

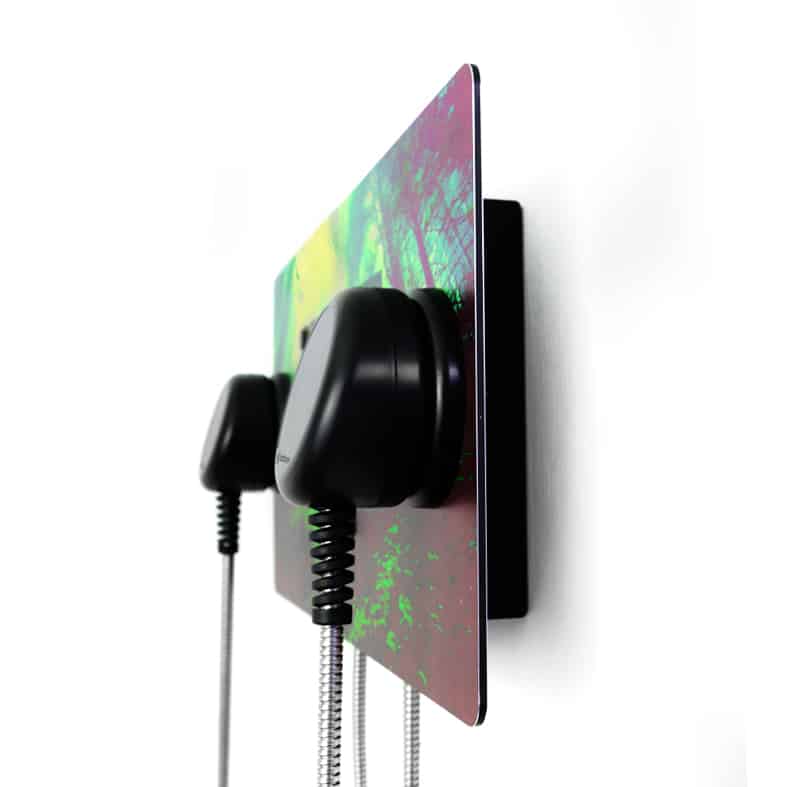

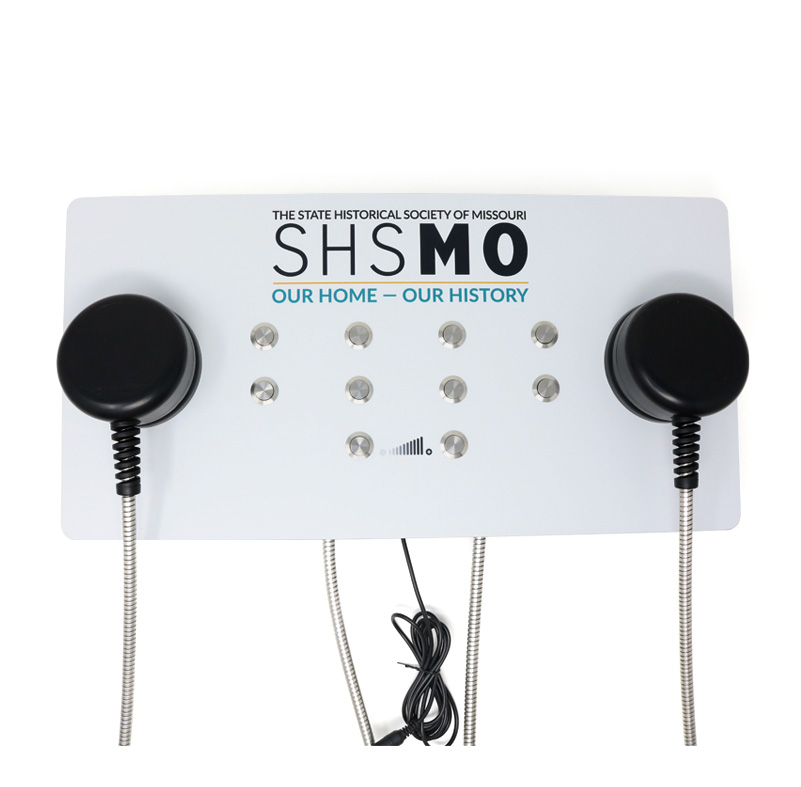

Audio Frame with Armoured Cable Heavy Duty Handsets

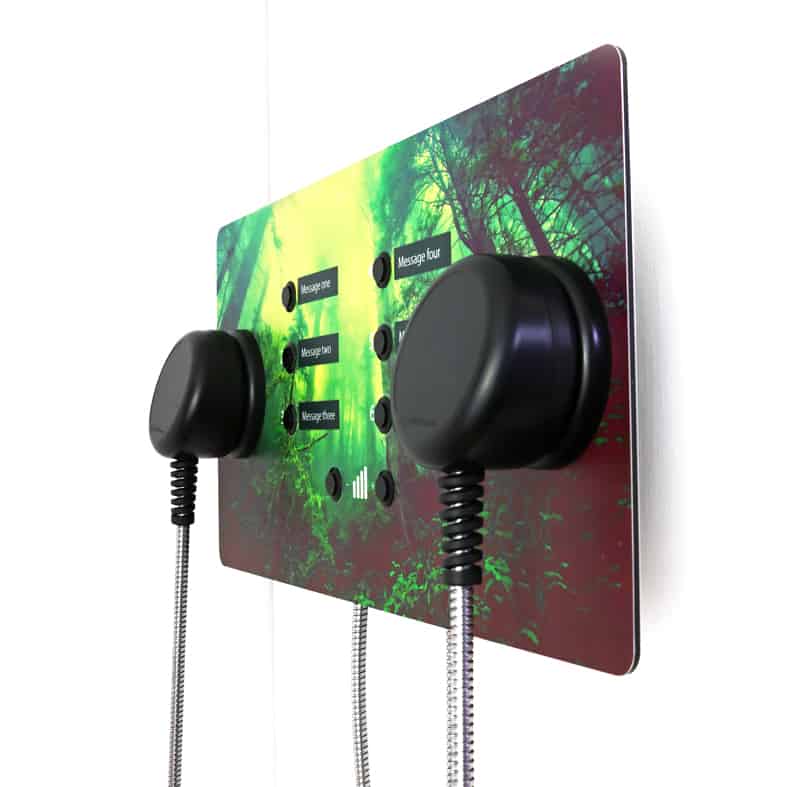

Wall Mounted

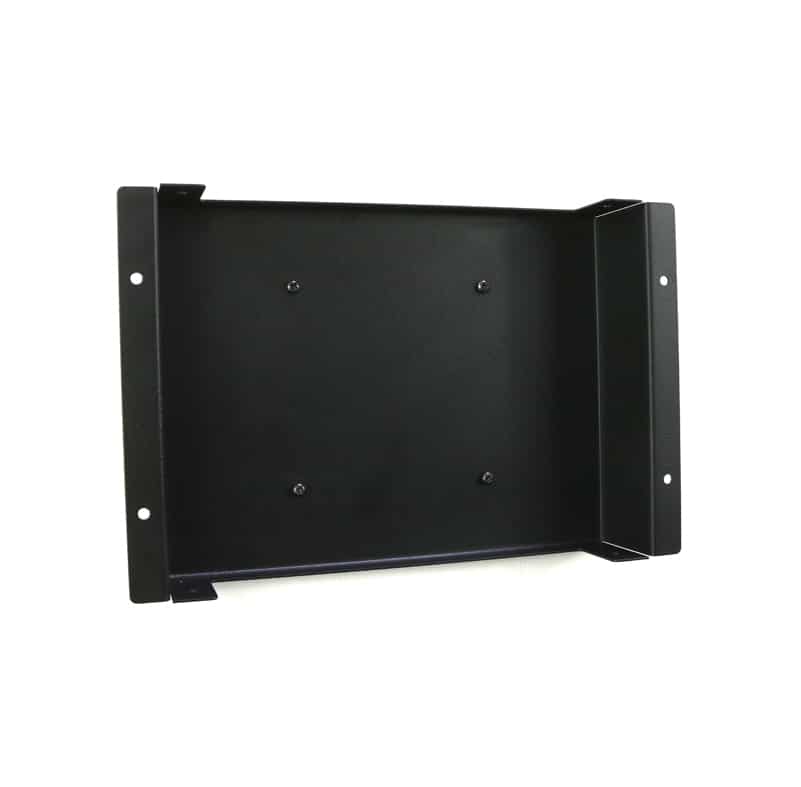

The Audio Frame is easily wall mounted using the VESA backplate. Simply fix the backplate to the wall then slot the front plate over the top and secure in place.

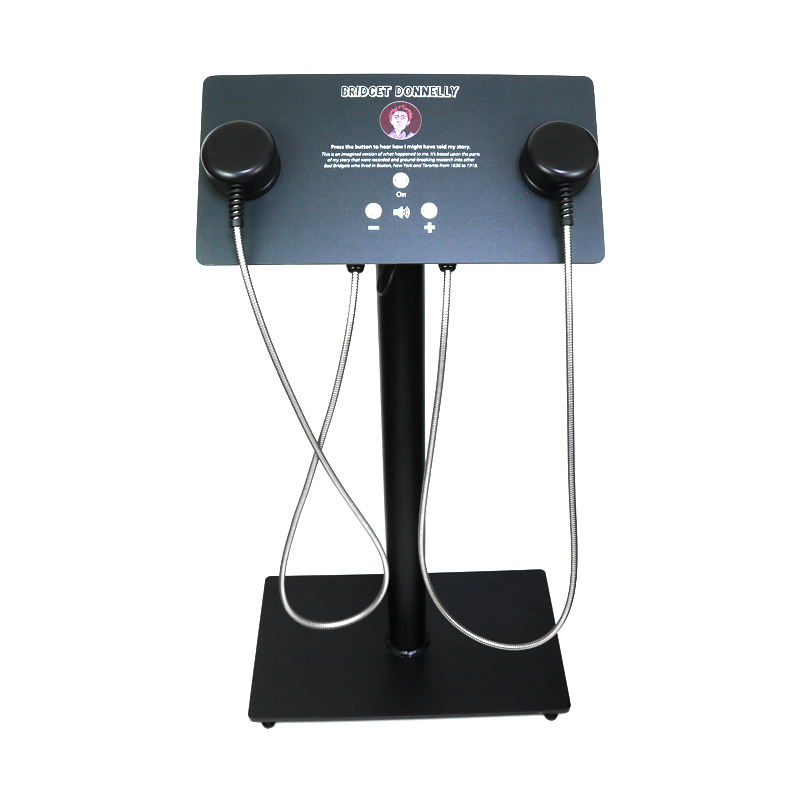

Optional Stand

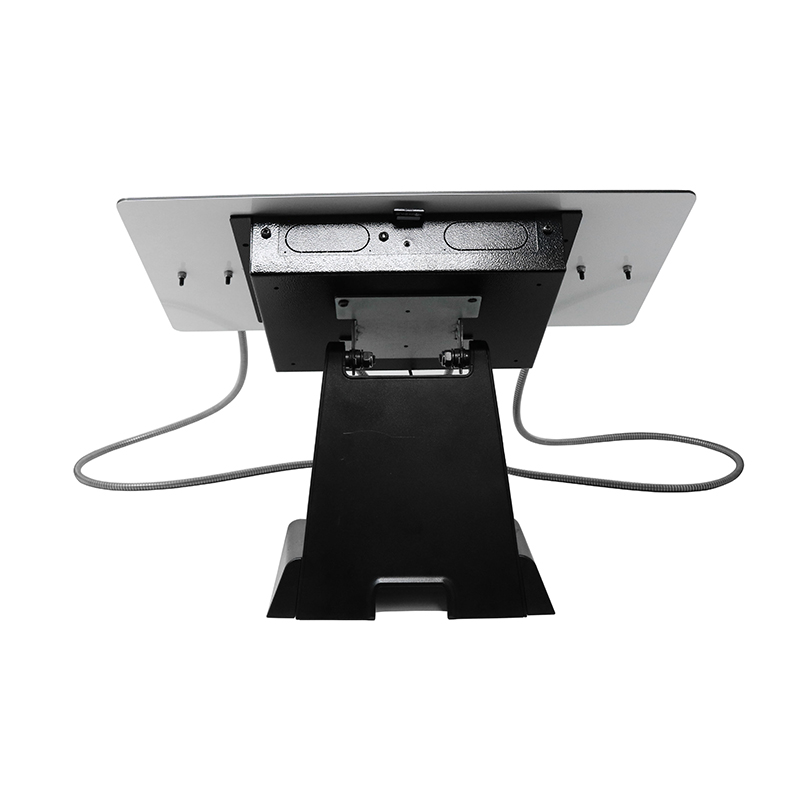

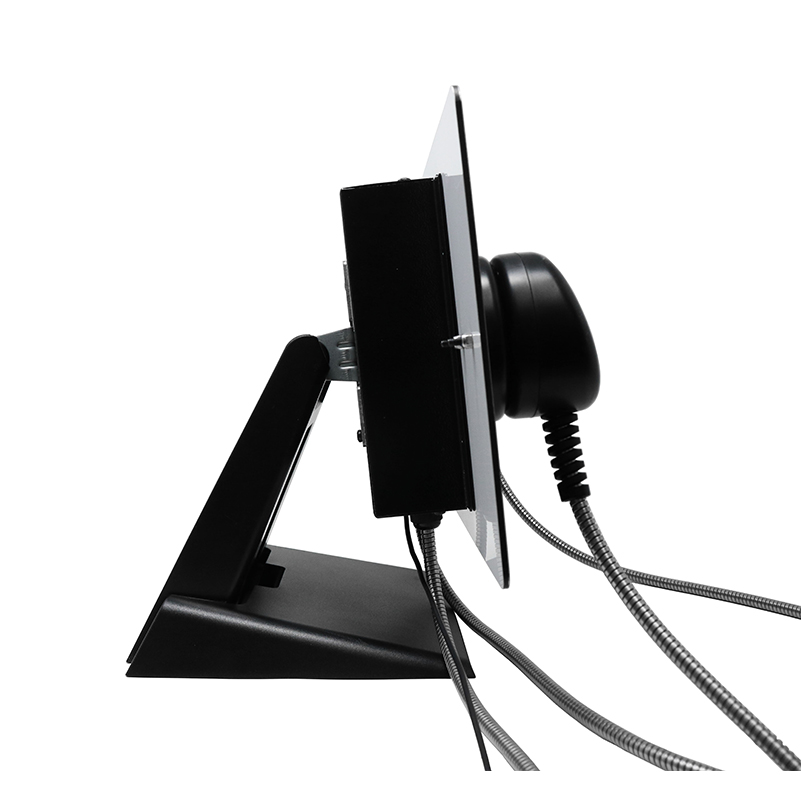

The Audio Frame can be supplied with a weighted stand. This allows the unit to be used as a freestanding kiosk, offering some portability without a high risk of theft.

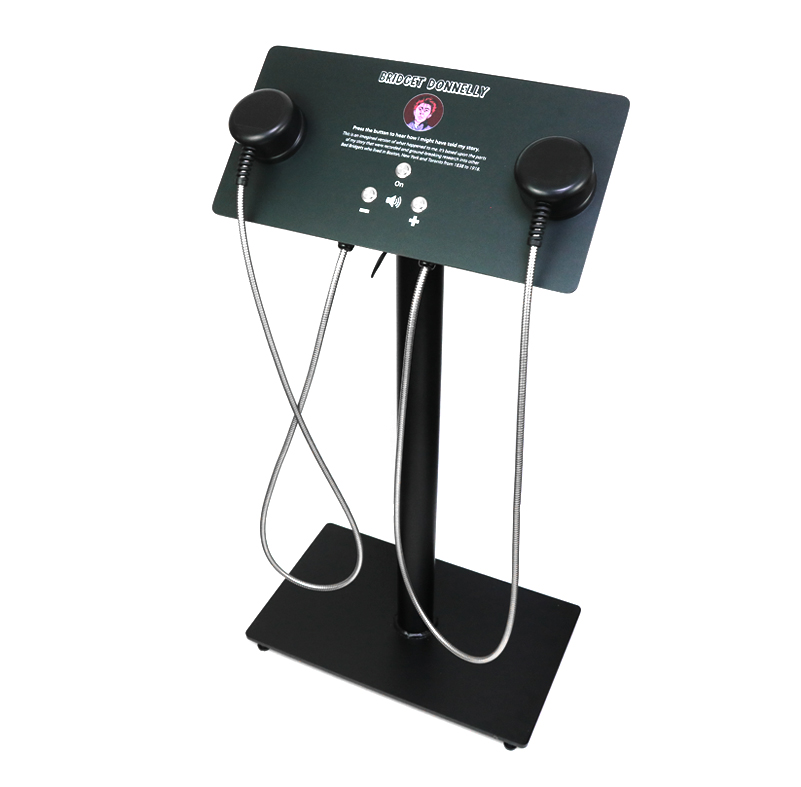

St John's Ambulance Audio Frame angled on Weighted Stand with Standard and Hearing Loop HDH

Customisation Options

The Audio Frame offers a number of flexible options. Upon purchase you will be contacted to discuss the following;

Audio Frame Artwork

You can design the graphics yourself (using our template in the downloads tab), or we can design it for you.

Heavy Duty Handset Black with Sticker Example

Handset Artwork

Customise the handsets with full colour branding labels.

Stainless Steel and Black Push Button

Push Buttons

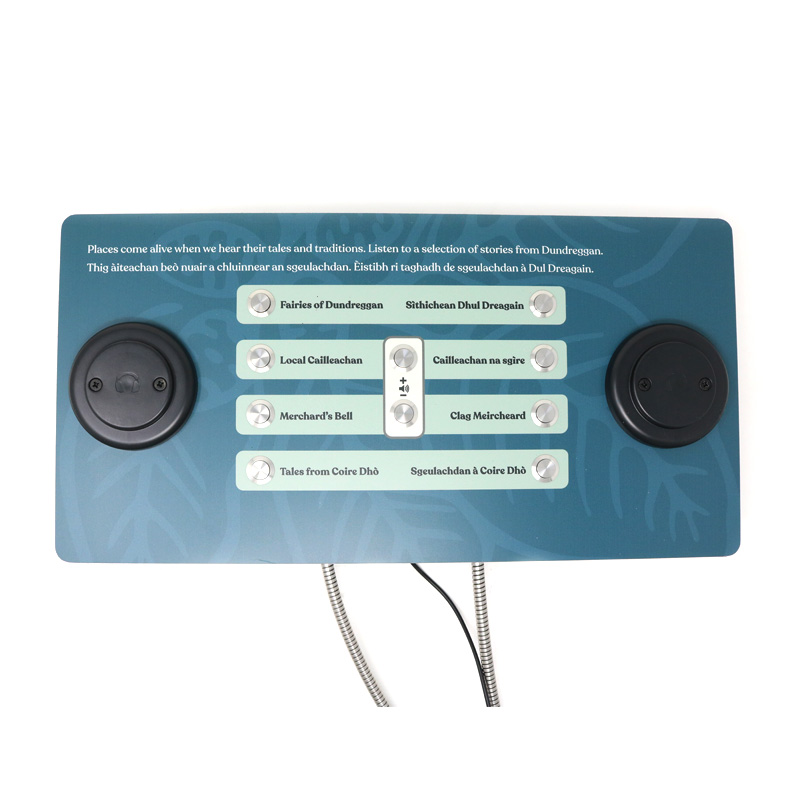

Use up to 12 content activation buttons plus 2 for volume up and down. There is a black or silver option. (See template for button location options).


Note: When selecting client artwork, the artwork needs to be print-ready when we receive it. The template needs to be saved as a PDF or AI, with 10mm bleed and all fonts outlined.

Heavy Duty Handset or Speakers

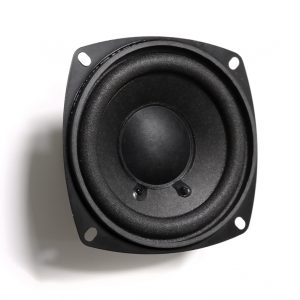

Fitted with up to 1 or 2 robust Heavy Duty Handsets. The impact-resistant plastic design produces an extremely rugged handset, ideal for busy visitor attractions and public spaces. Alternatively, you can use 2 x 8Ω 5W Speakers installed within the metal plate.

Silver Heavy Duty Handset with Magnetic Hanger

Hearing Loop Heavy Duty Handset Black Label Hand Model

Hearing Loop Version

We offer a Hearing Loop version of the Heavy Duty Handset which provides the same high quality audio as the standard HDH but with included T-Coil technology, making it compatible with hearing aids. This version comes with a branding label as standard, depicting the universal T-Coil symbol.

Select this option during checkout and somebody will be in touch to discuss your label requirements after purchase.


Additional information

Weight2 kg
Dimensions55.10 × 441 × 223 mm
Stand Weight


Stand Dimensions

115 x 115 x 820mm (Pole)
500 x 300 x 22mm (Base)

Power Input

DC12V 2A

Audio Output

1 or 2 Handsets / or 2 built in Speakers

Button Inputs

Up to 12 Buttons (as well as 2 separate optional volume controls)

Playable Format

Audio: .MP3


SD Card (128MB Supplied) or USB

Max. Number of audio files

99 (when used in next / prev mode)

Input Power for Heavy Duty Handset

Rated: 30mW – Max: 50mW

Input Power for Speakers


Button Size

16mm – Black or Silver

Screw Sizes

75×75 M3, 100×100 M4, 200×140 M4

VESA Mount Size

75x75mm, 100x100mm, 200x140mm



Audio Frame Manual

0.2MB – March 2023

Audio Frame Spec Sheet

0.2MB – March 2023


Front Panel Artwork Template

0.04MB – September 2022

Heavy Duty Handset Label Template

0.06MB – January 2019


Button Templates

1.3MB – March 2023

Weighted Base Line Drawings

0.2MB – February 2023
