Sound Amp 2 Amplifier

3W Sound Amplifier-2

£75.00

SA2 is a compact 3 Watt per channel stereo 2 zone amplifier with a single feed aux input.

Categories: , Tags: ,

Description

Small and Compact

Sound Amplifier-2 (SA2) is a compact 3 Watt per channel stereo 2 zone amplifier with a single feed aux input.

Sound Amp 2 Amplifier

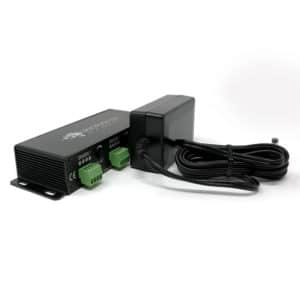

Sound Amp 2 Amplifier and Power Cable

Audio In

The Sound Amp 2 allows for a single line in audio feed via a 3.5mm audio jack plug socket. If you need an audio or video device to use we recommend using a model from the Sound Clip or VideoClip player range.


Playback

The Sound Amp 2 will supply the same audio feed to each of the stereo channel speaker connections via terminal screw connectors (speakers 1 / speakers 2). Each of the stereo speaker outputs has its own independent volume control.

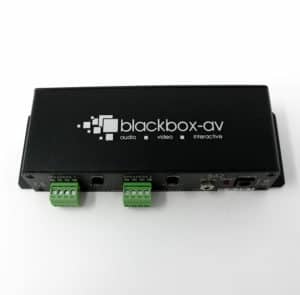

Sound Amp 2 Amplifier Birdseye View

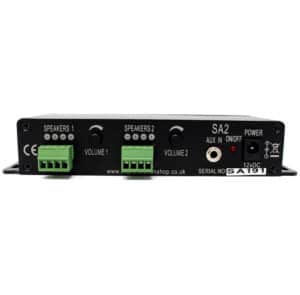

Sound Amp 2 Speaker Inputs

Output

The SA2’s dual output allows for up to four 4 or 8 ohm speakers.

Fitting Options

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SA-2’s design and its two fixing wings means it can be installed securely into any suitable space.

Additional information

Weight 0.4 kg
Dimensions 160 x 55 x 30 mm
Input Connection

3.5mm audio jack

Aux In

2.2v Peak to Peak low level

Power Input

12vDC 2amp

LED Indicator

On/ Off

Frequency Response

50Hz – 18Khz

Speaker Impedance

4Ω – 8Ω per channel

Volume Control

1 Volume control per channel

Output Connection

Terminal Connector

Power Output

3 watt per channel

Downloads

Downloads

SA-2 Spec Sheet

0.1mb – May 2018
