Illuminated Buttons

£14.00 excl. vat

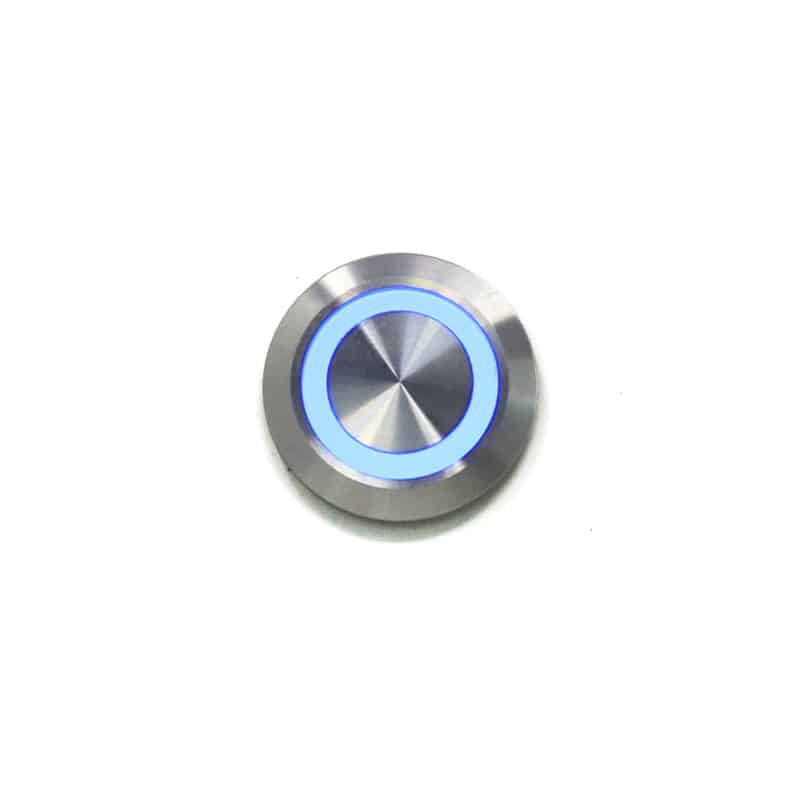

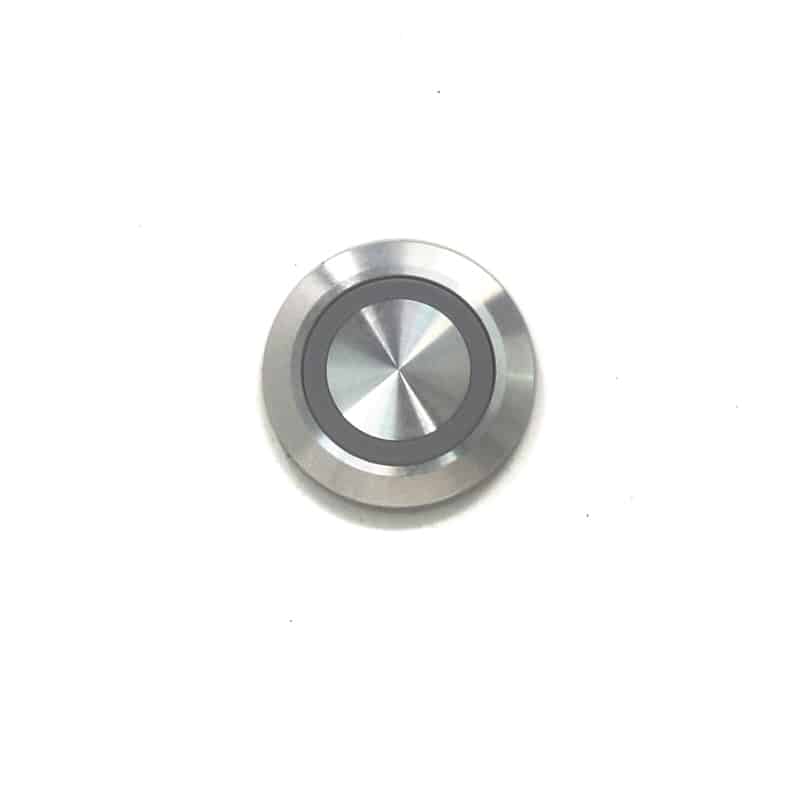

The Illuminated Push Button is a contact switch. It can be connected to our range of SoundClip audio players or our VideoClip HD6, simply press the button to activate a video or audio file. Available in white, red, blue & green.

Description

Illuminated Buttons

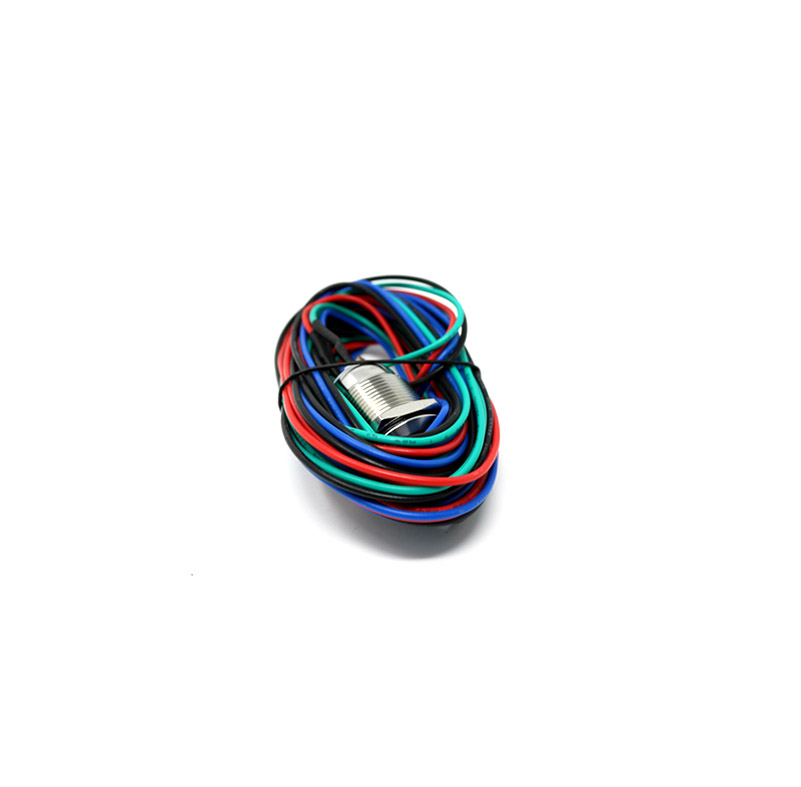

These illuminated push buttons can add a nice twist to an often mundane element of interpretation. Used alongside multiple blackbox-av products, such as our SoundClip range and VideoClip HD6, visitors are able to push buttons in order to activate audio or visual content. Each button is supplied with a cable length of 2 meters.


SoundClip Configuration

Illuminated buttons, as well as Amusement buttons, are usable with our SoundClip range of Audio Players via the unit’s single lighting terminal.

If each button is connected via the 0v and 12v outputs, they will be illuminated at all times.

If connected via the – and + outputs, they will be illuminated when content plays and deactivated when content stops.

If you would like more illuminated buttons to work with a SoundClip V2 or 12, please contact us.


VideoClip HD6 Configuration

When used with our VideoClip HD6 the illuminated buttons will remain on when waiting to be triggered, once triggered only the button currently playing content stays on. Buttons programmed to allow users volume control will remain constantly on no matter what.

Additional information

Weight0.1 kg
Dimensions34.2 × 25.1 × 22 mm
Cable Length

Approx. 2M

Illumination Type

L19-F/R – Ring

Terminal

Wire

Max. Switch Rating

lth: 5A Ui: 250VAC

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000mΩ

Dielectric Strength

2000VAC

Operation Temperature

'-20℃ ~ +55℃

Mechanical Life

1,000,000 Cycles

Electrical Life

50,000 Cycles

Max. Panel Thickness

14mm

Suggested Panel Cutout

18.9mm

Contact Material

Silver Alloy

Torque

5 ~ 14Nm

Operation Pressure

≈ 4N

Material: Actuator

Stainless Steel/ *Anodised Aluminium

Material: Body

Stainless Steel/ *Anodised Aluminium

Type

LED

Colour

White, Red, Blue, Green

Contact

Normal Open

Downloads

Downloads

Illuminated Buttons Spec Sheet

0.3MB – September 2024
