Solar Audio Post – Electronics

£599.00£767.00 excl. vat

The Solar Audio Post – Electronics are everything you need to create an external audio point activated by buttons and powered completely by Solar energy. Includes a USB Programming Dongle for easy upload of content and 2 or 4 Solar Panels.

SKU: N/A Categories: , ,

Description

Powered by the Sun

Activated by two buttons the Solar Electronics allow you to create a self-powered external audio point, capable of playing up to 6 audio messages across 2 buttons (programmable via supplied USB Programming Dongle).


Weather Resistant

Designed specially for outdoor use, the Solar Electronics are able to withstand the elements and provide great sound quality.


Playback Statistics

Gain an insight into unique visitor statistics with the in-built Playback Statistics setting. The Solar Post allows access to to three different stats:

  • Total messages played for a period (You can reset)
  • Total messages played for each track (You can reset)
  • Total messages played

Panel Options

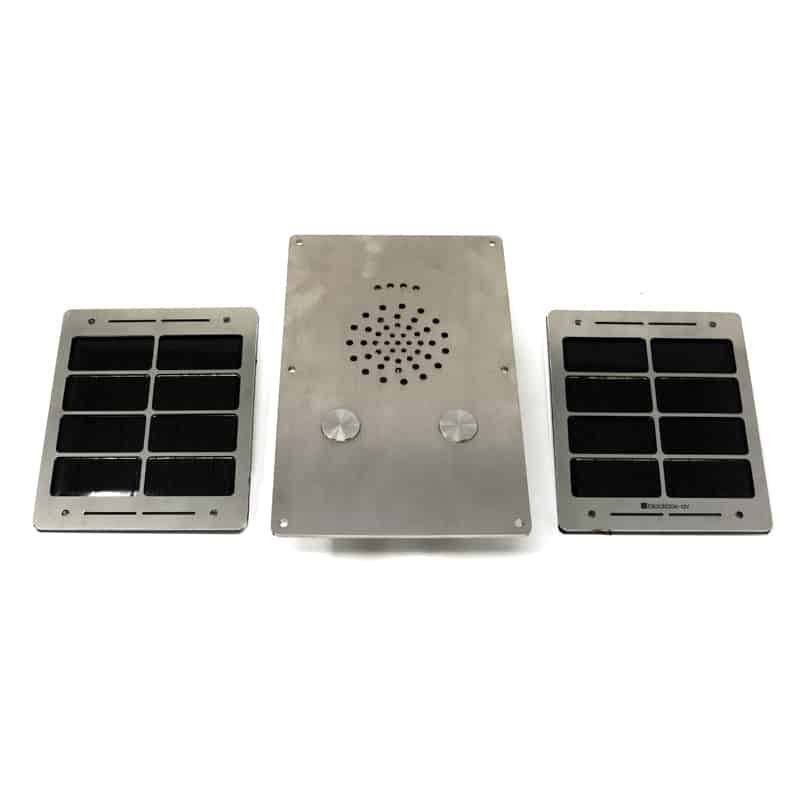

The Solar Electronics is supplied with 2 or 4 solar panels, with an option between two different panel designs. Either Surface (left) or Recessed (right).

Surface

The Surface solar panels will allow you to install the panel on top of a flat surface and simply fix into place.

Recessed

Thanks to a lip design, the Recessed solar panels allow a flush recessed installation within a flat surface, you’ll need to cut the appropriate recess and simply fix into place.


Simple to Fit

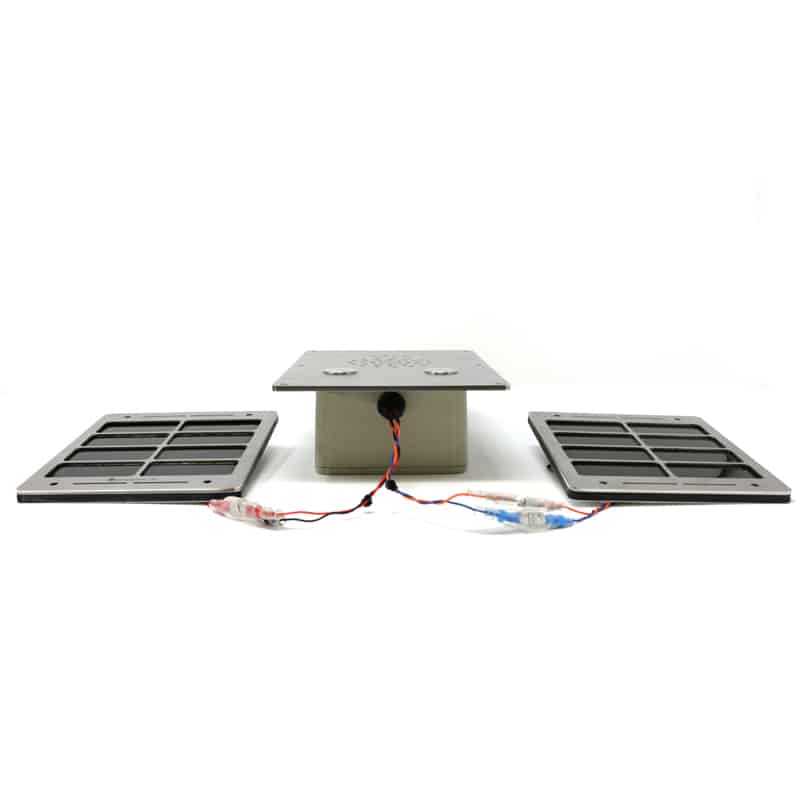

Design your bespoke units to incorporate the Electronics thanks to provided line drawings. Simply connect a wire from the electronics to the solar panel.


Easily Programmable

Easily load your .mp3 content onto the Solar Electronics using the supplied USB Programming Dongle.

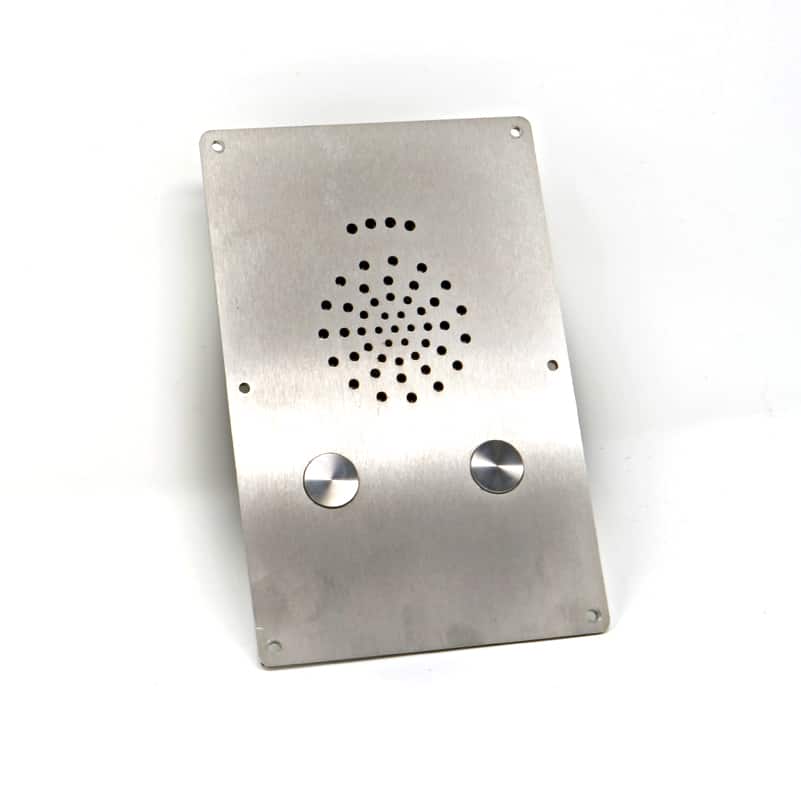

Front Plate Customisation

There’s also the option of a laser etched front plate to your own design. Great for displaying logos / directions of use or button content.



Note: Any content used within the customisation of laser etched panels must be provided as vectors. Please supply these as .ai or compatible PDF files, not jpg/png. Any text should be converted as outlines.

Additional information

Weight1.7 kg
Dimensions47.90 × 140 × 220 mm
Weight (Solar Panel)

0.25Kg

Dimensions (Surfaced Solar Panel)

7.20 (D) x 130 (W) x 155 (H)

Dimensions (Recessed Solar Panel)

7.20 (D) x 140 (W) x 165 (H)

Power

2 Solar Panels charging long life batteries at up to 200mA per hour (+/- 10%)

Message Storage

16MB Flash Memory (on board)

Maximum No. of Messages

6

Message Encoding Format

.MP3

Maximum Total Message Length

16 minutes @ 128kbps

Programming Transfer Rate

Approx. 20 Seconds per MB of message

Audio Output

1W into 8Ω Speaker

Frequency Range

75Hz – 20KHz

Charge Performance

4 hours charge = 12 hours playback (4 panel version)
This test uses spoken word audio at default volume.
The weather condition are on an overcast afternoon.

Number of Buttons

1, 2

Downloads

Manual(s)

Solar Audio Post Manual

1MB – Oct 2023 V2.3

Solar Audio Post – Electronics Spec Sheet

0.3MB – March 2019


Downloads

Solar Audio Post Artwork Template

0.1MB – August 2022
