Audio Bench – Heavy Duty

£1,995.00£2,180.00 excl. vat

Solar Powered Audio Bench

Description

Heavy Duty Modern Bench

The Audio Bench – Heavy Duty integrates our solar electronics with a modern timber (Opepe) bench, providing outdoor audio interpretation of up to 6 messages which can be accessed incrementally by 1/2 buttons (to discuss other button options please contact us). The great thing about the Audio Bench – is how seamlessly the audio electronics are integrated, not detracting from the heavy duty and modern design of the bench in any way.


Heavy Duty Audio Bench Oak

Enhance your Visitor Experience

The audio can be used to enhance your visitor’s experience by narration, interviews, oral histories, animal noises – in fact whatever audio you’d like to reproduce.


Update your Audio

Audio can be updated and changed via the supplied USB programming dongle. Custom engravings on the front solar electronics panel can be used to denote what audio is available, this artwork can be generated by us for a fee or you can supply your own.

NOTE: Windows OS is required to program your Audio Bench using a PC or Laptop (XP – 10). MacOS is not supported due to hidden files generated by the OS.

USB Programmer with 4 Pins

Key Features

  • Up to 6 messages accessed incrementally via 1/2 buttons
  • Able to provide usage statistics
  • Audio content can be reprogrammed via USB dongle (supplied)
  • In Ground or Surface fitting
  • No mains power required
  • Environmentally friendly
  • Engraved front panel
  • Virtually maintenance free
  • Can be installed and used both indoors and out (dependent upon access to appropriate levels of sunlight)

Solar Powered

Instructions on the front of the sign can communicate how to use the audio equipment, but it’s simplicity itself. Just press the touch sensitive buttons and increment through the various audio tracks. Due to the nature of Solar Power it is advised the bench faces a position that is likely to get the majority of sunlight throughout the day.

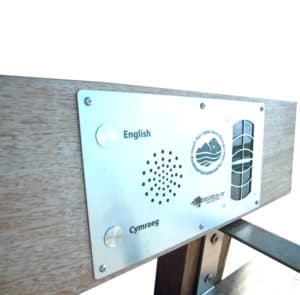

Heavy Duty Audio Bench - Artwork and Solar Panels

The Bench

The bench is commercially rated and ready for public use. Around 180cm (6ft) in size it can comfortably seat 4 people. It’s constructed from oak with an attractive, modern and robust design. There’s a metal arm rest at one end, with the solar electronics installed above, It’s also supplied with metal anchors for installation purposes (to be cemented into the ground).

How to Proceed

Simply determine whether you will be providing the front panel artwork, or if you want us to create it for you (for a fee). To design it yourself please download the template made available in the downloads tab above, and provide your artwork as a vector.

A member of our staff will contact you upon receipt of your order to discuss your requirements. Note that the Audio Bench Oak includes upload of your content onto the device before delivery, so it arrived ready for installation and use.

For bespoke work please contact us on 44 (0)1639 767007 or at sales@blackboxav.co.uk.

Additional information

Weight80 kg
Dimensions1800 × 470 × 790 mm
Bench Material

Opepe

Anchors for Installation

Included

Message Storage Medium

16MB Flash Memory (on board)

Maximum Number of Messages

6

Maximum Total Message Length

>16 minutes @ 64kbs

Updatable Content

Yes

Audio Output

450mW into 8ohm speaker

Audio Freq. range

75Hz-20Khz

Power

2 inbuilt Solar panels charging 4 x 1.2 V long life batteries at up to 200mA per hour

Power Consumption

Average of 50mA

Playtime

A full charge will give 3000 plays of a 30 second audio file /- 150 (25 hours)

Maintenance

Batteries likely require changing every 2/3 years. Solar panels will need to be clean of any moss or debris to ensure that charge is being recieved.

Fixing

In-Ground, Surface

Downloads

Manual(s)

Audio Bench Heavy Duty Manual

0.3MB – October 2024 V2.3

Audio Bench Panel Template (Return as Vector)

0.07MB – Aug 2020
