Solar Audio Post – Metal

£1,020.00£1,180.00 excl. vat

The Solar Audio Post is an external audio point activated by buttons and powered completely by Solar energy. Includes a USB Programming Dongle for easy upload of content.

Clear
SKU: N/A Categories: ,

Description

Solar Audio Post – Metal

Activated by two buttons the solar powered Audio Post is a completely self-powered outdoor audio point, capable of playing up to 6 audio messages across 2 buttons (programmable via the supplied USB Programming Dongle).


Metal Finish

The Solar Audio Post – Metal is constructed from incredibly durable powder coated stainless steel.


Playback Statistics

Gain an insight into unique visitor statistics with the in-built Playback Statistics setting. The Solar Post allows access to to three different stats:

  • Total messages played for a period (You can reset)
  • Total messages played for each track (You can reset)
  • Total messages played

Powered by The Sun

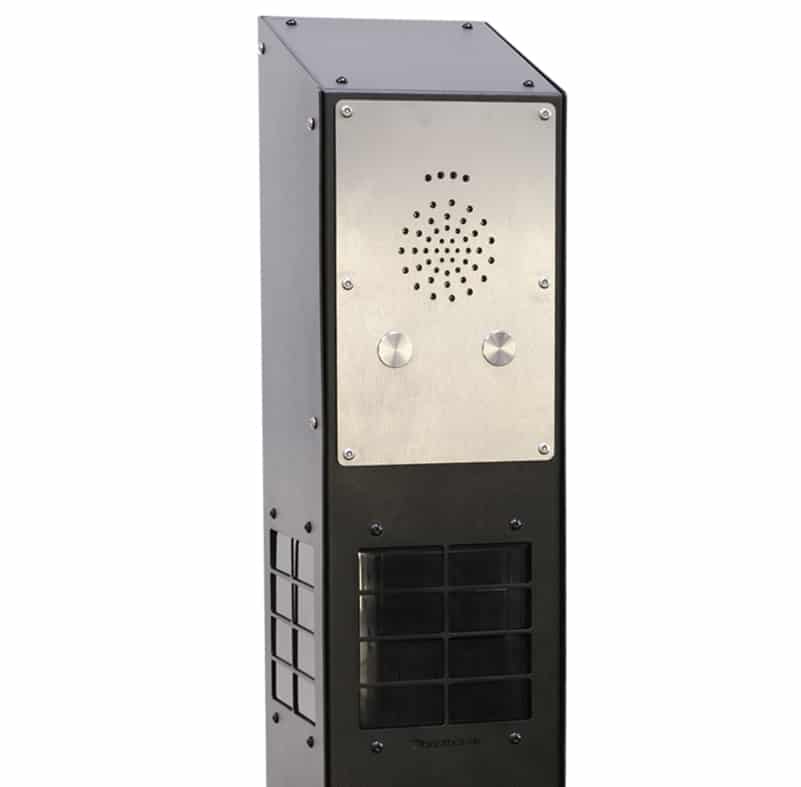

Built into each side of the metal Solar Post are 4 solar panels, providing optimal exposure to sunlight throughout the day.


Front Plate Customisation

For an additional fee we provide laser etching to the front plate. This can be used to provide a list of content on each button, instructions or even logos.

Note: Any content used within the customisation of laser etched panels must be provided as vectors. Please supply these as .ai or compatible PDF files, not jpg/png. Any text should be converted as outlines.

Solar Audio Post In Situ

Top Plate Customisation

There’s also the option for a customised top plate. This can be laser etched metal as the front plate, or for a full colour graphic in reverse printed Polycarbonate


Easily Programmable

Quickly load .MP3 content onto the Solar Audio Post using the supplied USB Programming Dongle.


Purchase Options

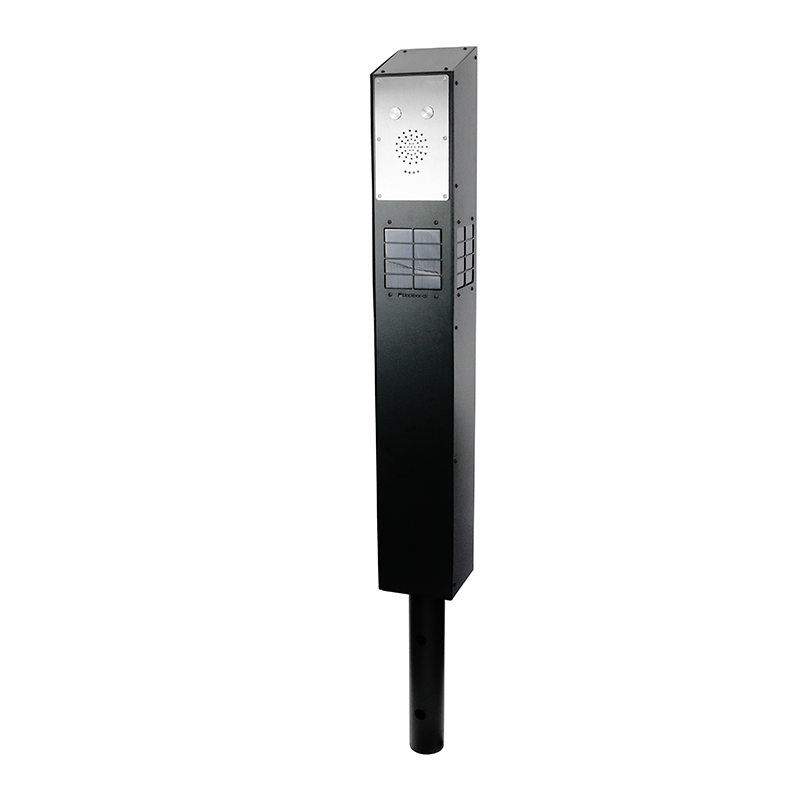

The Solar Audio Post can be installed in 2 ways, bolted to the floor via a plinth mount or installed in-ground via the in-ground mount.

Additional information

Weight13.1 kg
Dimensions300 × 300 × 1066 mm
Weight (In Ground Mount)

15.8Kg

Dimensions (In Ground Mount)

155 (D) x 158 (W) x 1466 (H)

Power

4 built in Solar Panels charging long life batteries at up to 200mA per hour (+/- 10%)

Colour

RAL – 9005 Black Ripple

Message Storage

16MB Flash Memory (on board)

Maximum No. of Messages

6

Message Encoding Format

.MP3

Maximum Total Message Length

16 minutes @ 128kbps

Post Peformance

4 hours charge = 12 hours playback
This test uses spoken word audio at default volume.
The weather condition are on an overcast afternoon.

Programming Transfer Rate

Approx. 20 Seconds per MB of message

Audio Output

1W into 8Ω Speaker

Frequency Range

75Hz – 20KHz

Downloads

Manual(s)

Solar Audio Post Manual

1.5MB – Jan 2021 V2.1

Solar Audio Post – Metal Spec Sheet

0.9MB – June 2020


Downloads

Solar Audio Post Artwork Template

0.1MB – June 2020
