AudioSign Electronics

£599.00£682.00 excl. vat

The AudioSign electronics allow you to easily build Solar Powered audio into your own signage panels.  The electronics are mounted to the rear of your chosen signage.

SKU: N/A Categories: , ,


AudioSign Module

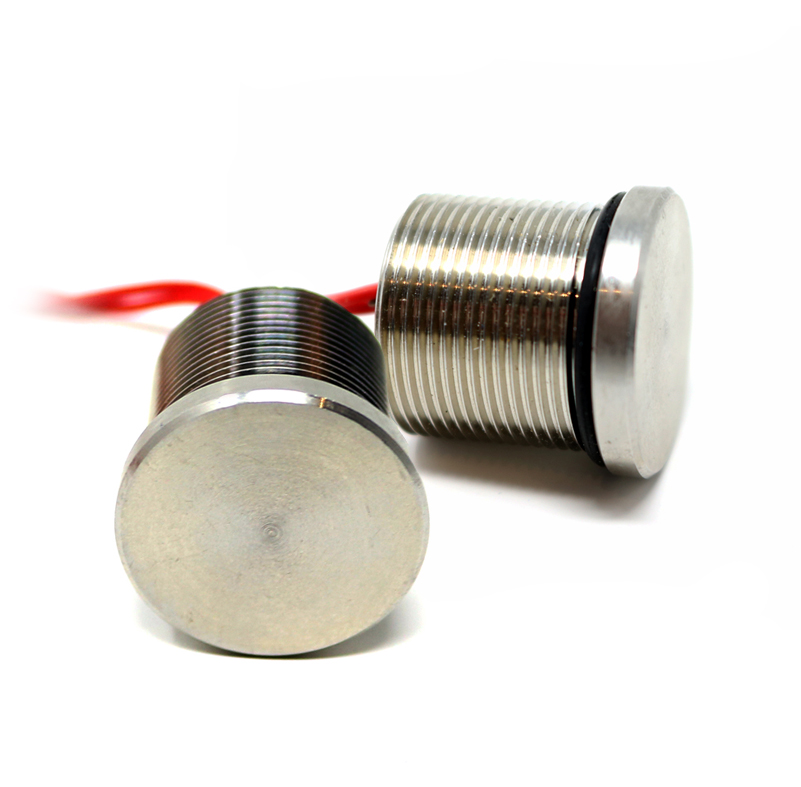

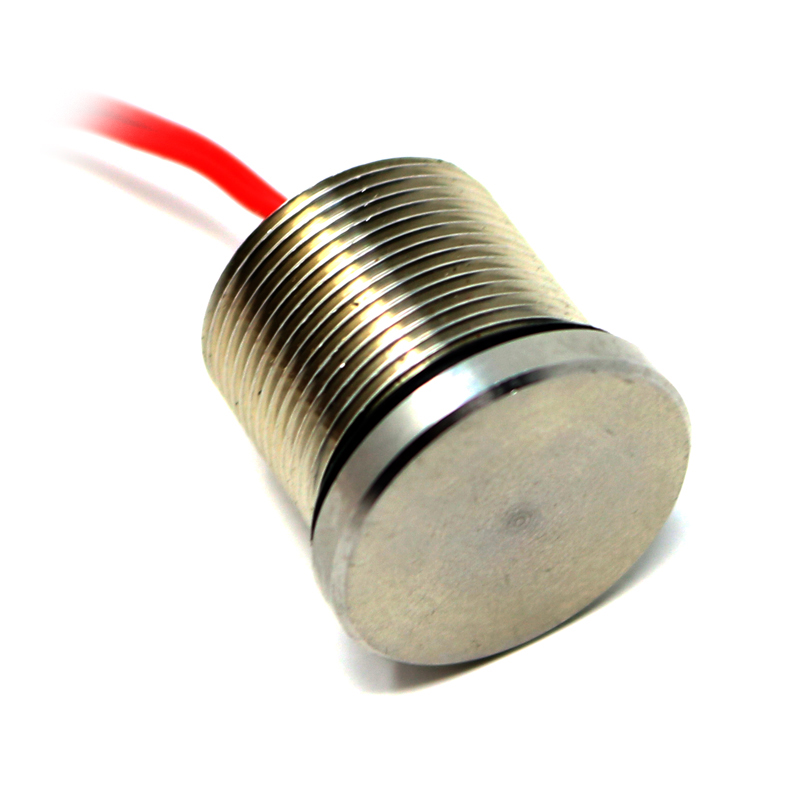

Activated by two buttons, the AudioSign Module is capable of playing up to 6 audio messages across 2 piezo buttons (easily programmed via the supplied USB Stick).

AudioSign Electronics Horizontal 2 Solar Panels

Speaker for AudioSign Electronics (no fade)

Compact Unit

The AudioSign Electronics Module includes the audio control unit and a high quality outdoor speaker, all built into a sturdy compact panel constructed from an incredibly durable aluminium composite.

Simple to install

Build the Electronics module and Solar Panels into your specially designed graphics unit and simply connect the solar panels to the module via easy to attach waterproof connectors.

Solar Audio Post Electronics - Waterproof Cables Closeup

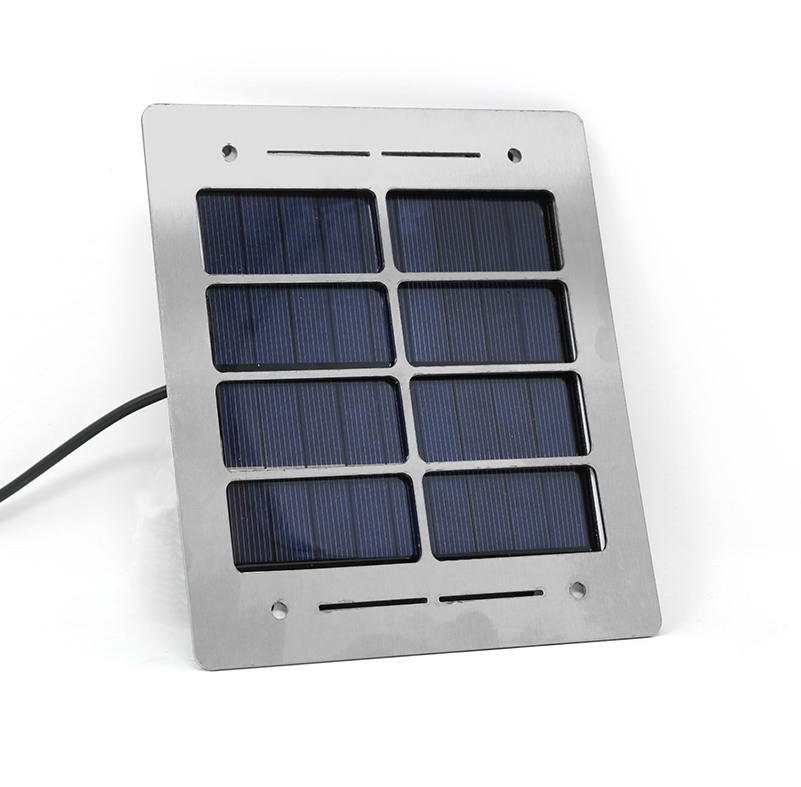

Solar Audio Post Electronics - 2 Surface Panels Side Angle

Completely Powered by Solar

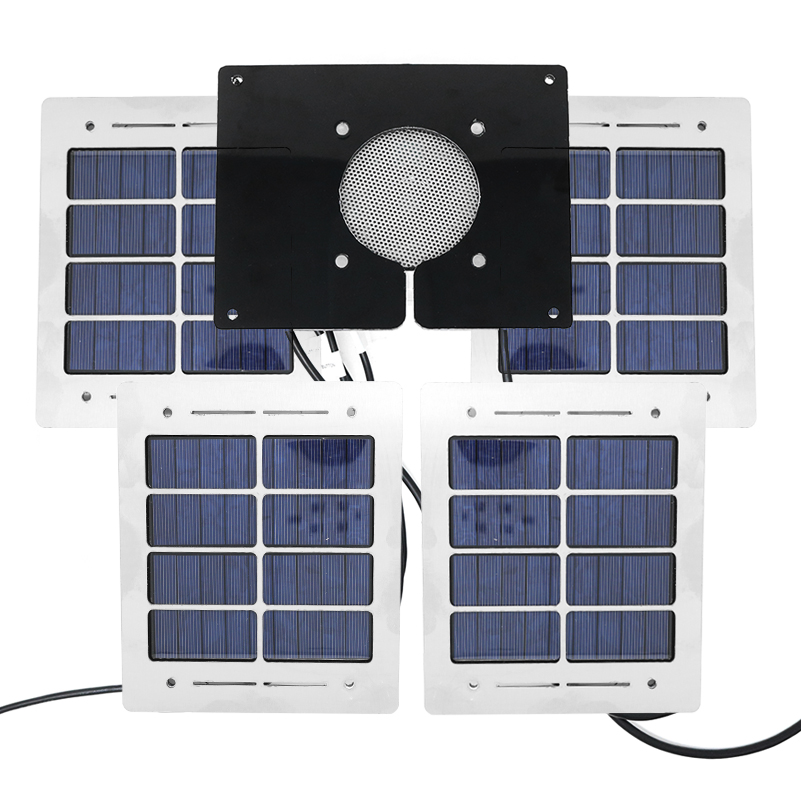

The AudioSign is used in conjunction with 2 or 4 solar panels which when installed correctly will provide a wide area of exposure to sunlight and charge the device quickly throughout the day.

Easily Programmed

The AudioSign Electronics are easily programmed via USB input, available via flying lead. As well as uploading content you can also access various other settings via the USB interface:

  • Set Volume
  • Access Playback statistics (Total for set period, total for each track, overall total)
  • Battery and Solar Test
USB Stick for AudioSign Module

Additional information

Weight1.5 kg
Dimensions125 × 163 × 57.79 mm
Dimensions (Front Panel)

125 x 163 x 3 mm

Dimensions (Back Casing)

90 x 158 x 40.5 mm

Dimensions (Surface Solar Panel)

7.20 (D) x 130 (W) x 155 (H)

Dimensions (Recessed Solar Panel)

7.20 (D) x 140 (W) x 165 (H)

Message storage

16MB Flash Memory

Maximum No. of Messages


Message Encoding Format


Maximum Total Message Length

16 minutes @ 128kbps

Programming Transfer Rate

Approx. 20 Seconds per MB of message

Audio Output

1W into 8Ω Speaker

Frequency Range

75Hz – 20KHz

Number of Buttons

1, 2



AudioSign Electronics Manual

0.9MB – October 2023

AudioSign Electronics Spec Sheet

0.2MB – August 2022


AudioSign Electronics Vertical Drawings

0.06MB – August 2022

AudioSign Electronics Horizontal Drawings

0.06MB – August 2022
