UTR Oversized Through Panel

£1,410.00£1,554.00 excl. vat

U-Turn Round with oversized front plate for installation through a panel. Includes a USB Programming Dongle. Add artwork to the U-Turn Round with a pair of Batwings.

SKU: N/A Categories: , Tag:

Description

Wind-up Digital Sound Store

For installation of the U-Turn Round into a panel we offer the ‘UTR Oversized Through Panel’. We first developed this option for various bespoke installations of the U-Turn Round and due to popularity now offer it as an additional product.

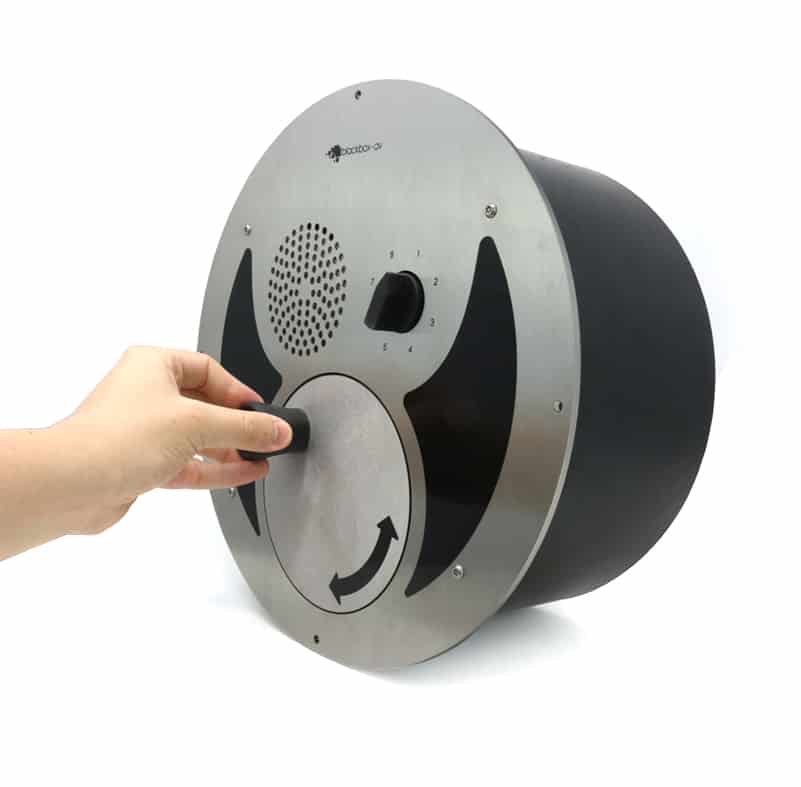

Oversized U-Turn Round Through Panel Wind-up Audio

Weather and Vandal resistant

The U-Turn Round is our unique, third generation, wind-up dynamo powered digital sound store. Weather and vandal resistant, the U-Turn Round is designed for external use.


Version 3.5

Version 3.5 boasts improved functionality and easier updating of content through the new USB programmer. Now supporting mp3 files updated via USB Stick, the ability to enable or disable end of message beeps, single track usage statistics, overall play statistics and 10 volume levels, we’re confident the U-Turn is now even better than before!

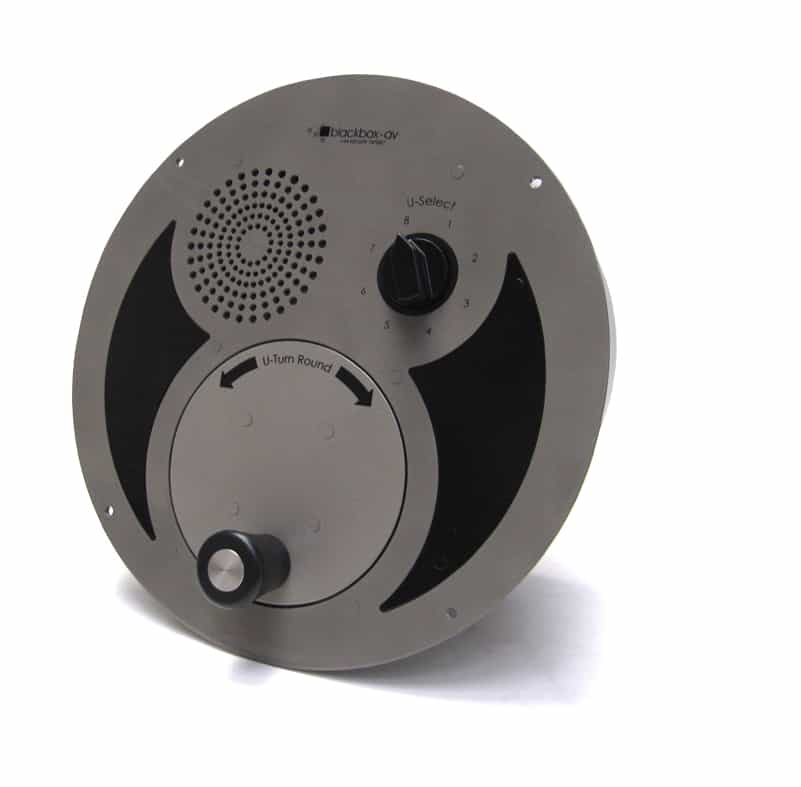

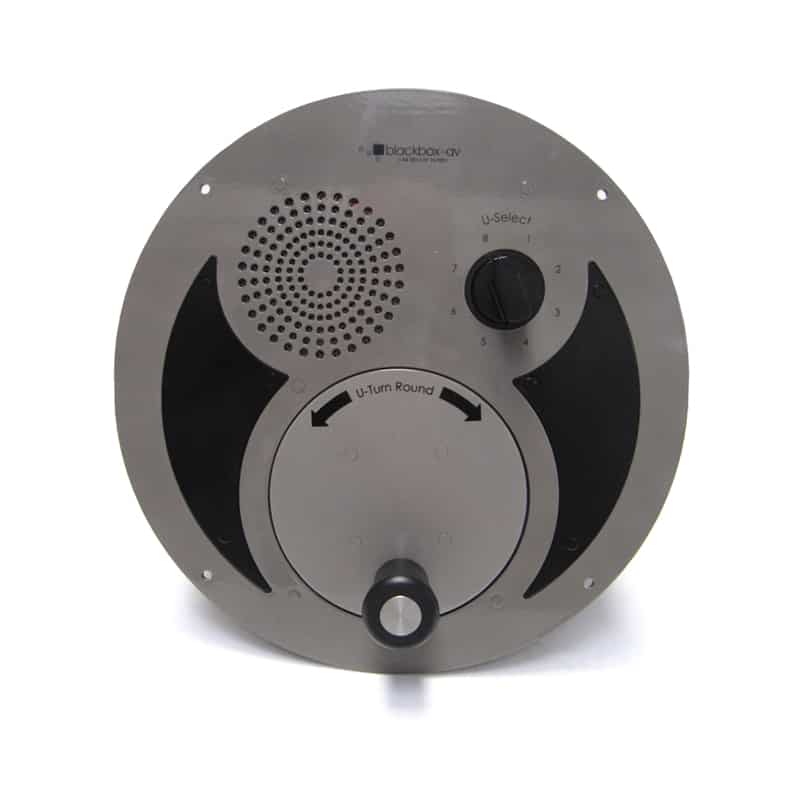

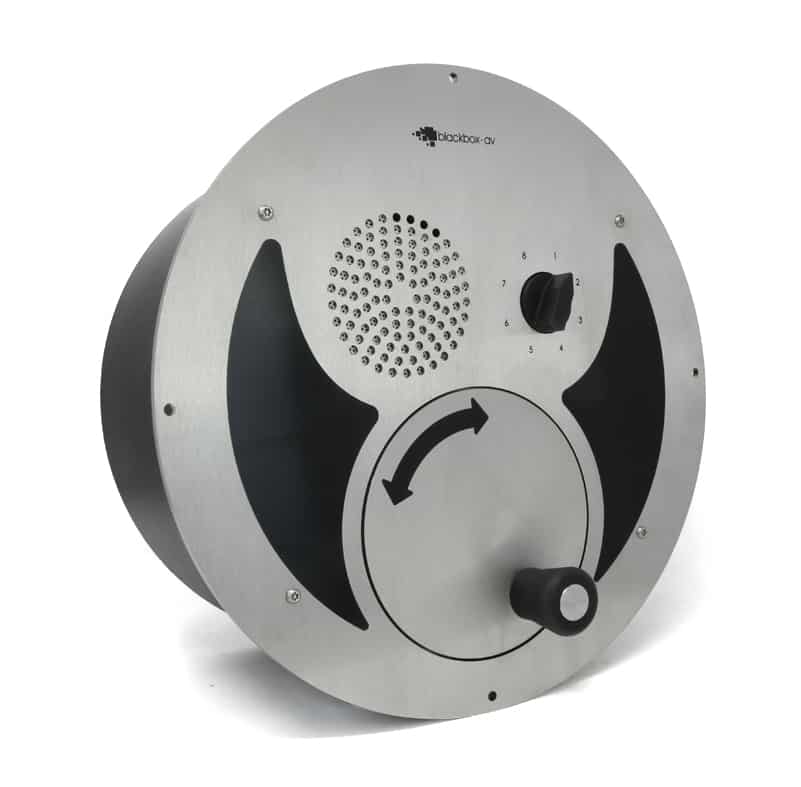

U-Turn Round Oversized Through Panel Front

Oversized U-Turn Round Through Panel 21

Key Features

  • User programmable with supplied USB Programmer
  • Usage statistics as standard
  • No mains power required
  • Environmentally friendly
  • Tough, durable stainless steel casing for high weather and vandal resistance
  • Virtually maintenance free
  • Can be installed and used both indoors and out
  • Stand-alone unit
  • User-friendly interactive operation
  • Up to eight re-programmable messages

Easily Programmable

Our included USB Programmer is perfect for customers that wish to change their own content periodically, perhaps seasonally for example. For instructions on how to update the audio content on your device please see the manual.

Oversized U-Turn Round USB Programmer

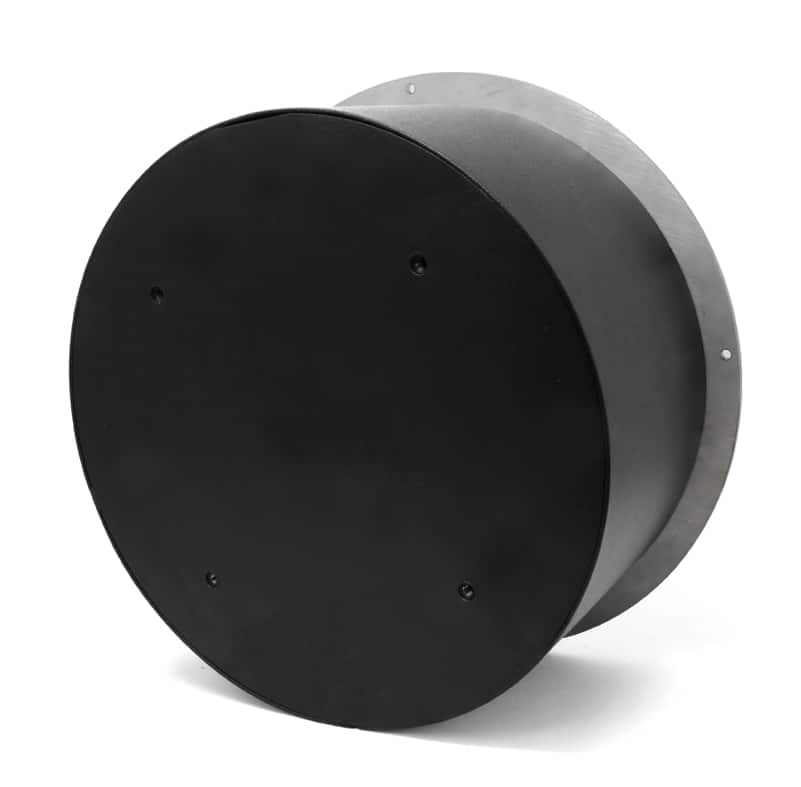

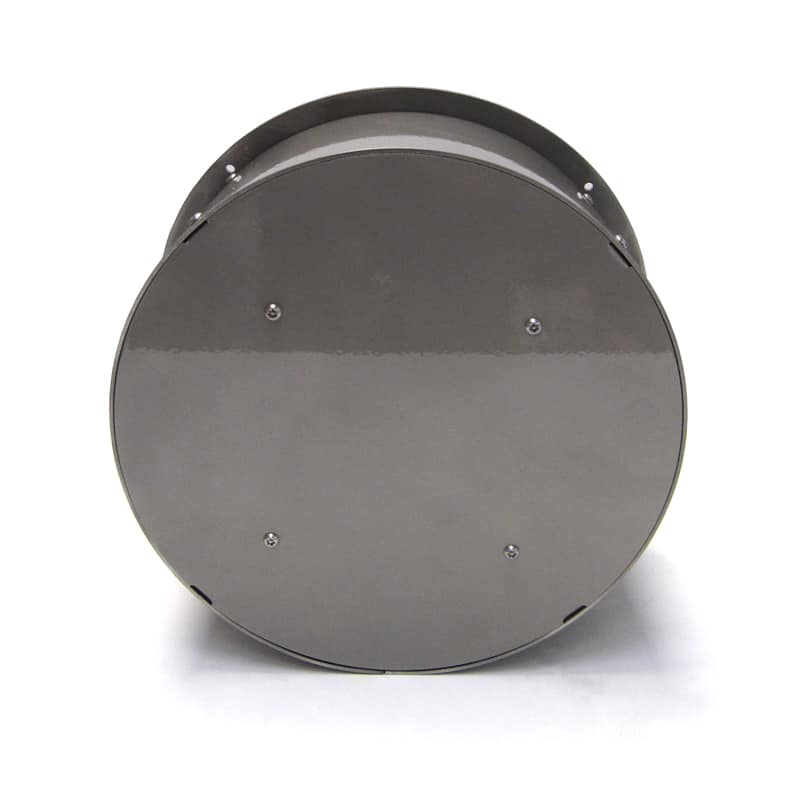

Oversized U-Turn Round Rear 21

Oversized Front Plate

The attached oversized front plate allows the U-Turn to be slotted through a panel and screwed into place. It then sits comfortably thanks to the overhang provided by the larger than normal face plate.


Options

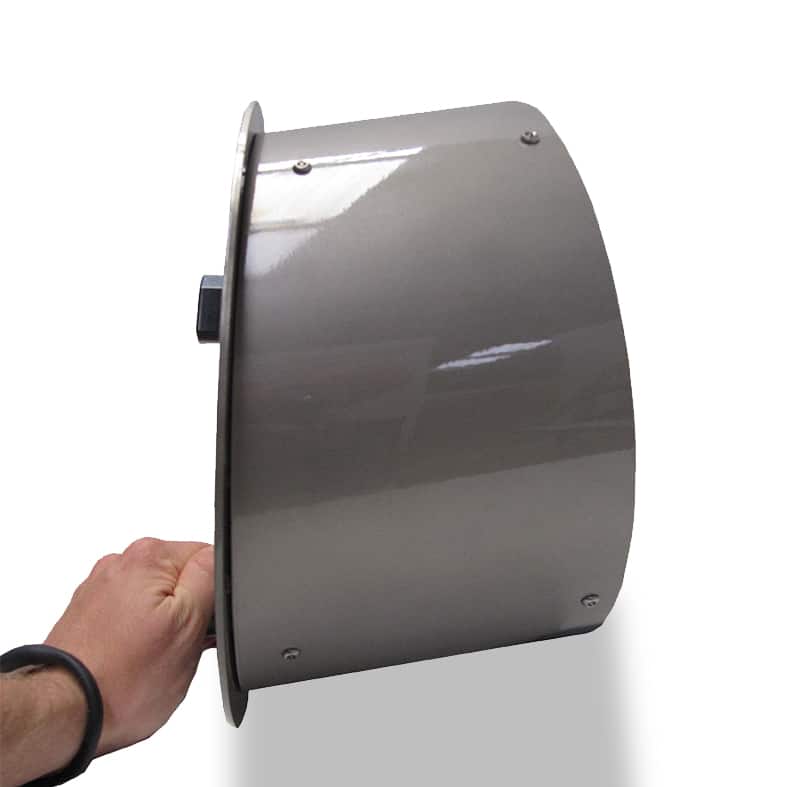

The Oversized U-Turn Round can be purchased either with a rear casing (pictured) or without a rear casing. We provide this option because the UTR is easier to install without the rear casing (a smaller installation area is required, see downloads section for cut-out dimensions).

Additional information

Weight10 kg
Dimensions370 × 360 × 360 mm
Package Weight

10.9kg

Unit Dimensions

150 x 340 x 340 mm

Accessories

USB Programming Dongle and USB Flash Stick included

Message Storage

16MB Flash Memory

Number of Messages

8 Messages

Message encoding format

.MP3

Maximum total message length

16 minutes @ 128kbps

Power

Hand cranked dynamo charging internal capacitors

Frequency Range

75Hz-20kHz

Audio Output

1w into 8ohm Speaker

Downloads

Manual(s)

Oversized U-Turn-Round Manual

0.8MB – Sep 2022 V2.3

Oversized U-Turn-Round Spec Sheet

0.3MB – Jun 2021


Downloads

UTR Oversized Line Drawings

0.3MB – Mar 2022

U-Turn-Round ‘Bat Wing’ Template

1MB – Aug 2021


Test Files

U-Turn Test Files

2.71MB – May 2018
