Reed Sensor

£12.00£15.00 excl. vat

Through panel Reed Sensor for use alongside a variety of our products. Note: Contact us to discuss compatibility of our Reed sensors with your own devices.


Reed Sensor

The reed sensor is a pair of electrical contacts that create a closed circuit when a magnet is in range and an open circuit when not.

Reed sensors when combined with a media player can therefore be used to activate content in bespoke ways.

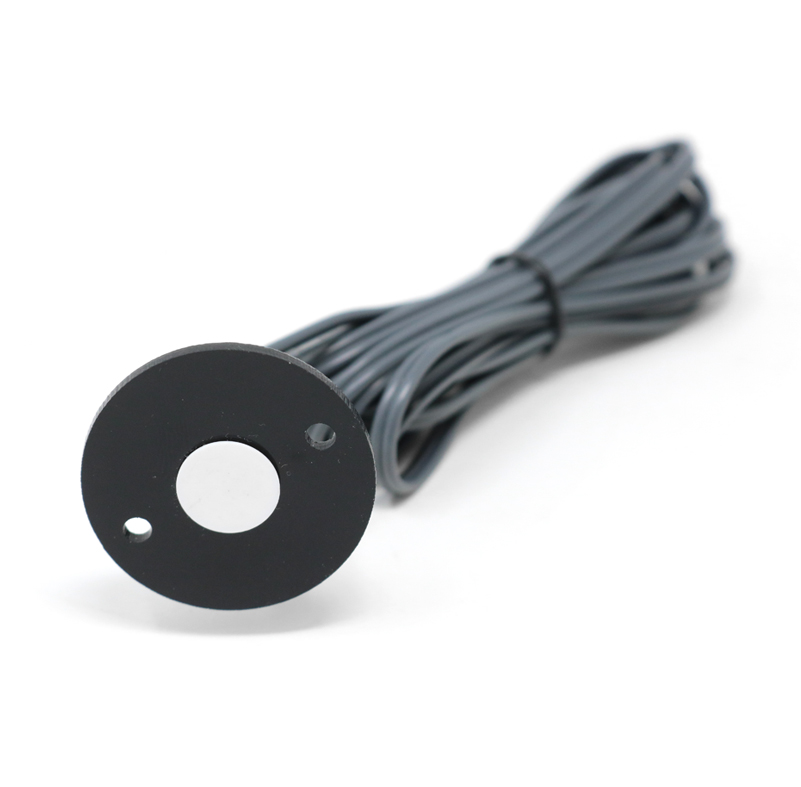

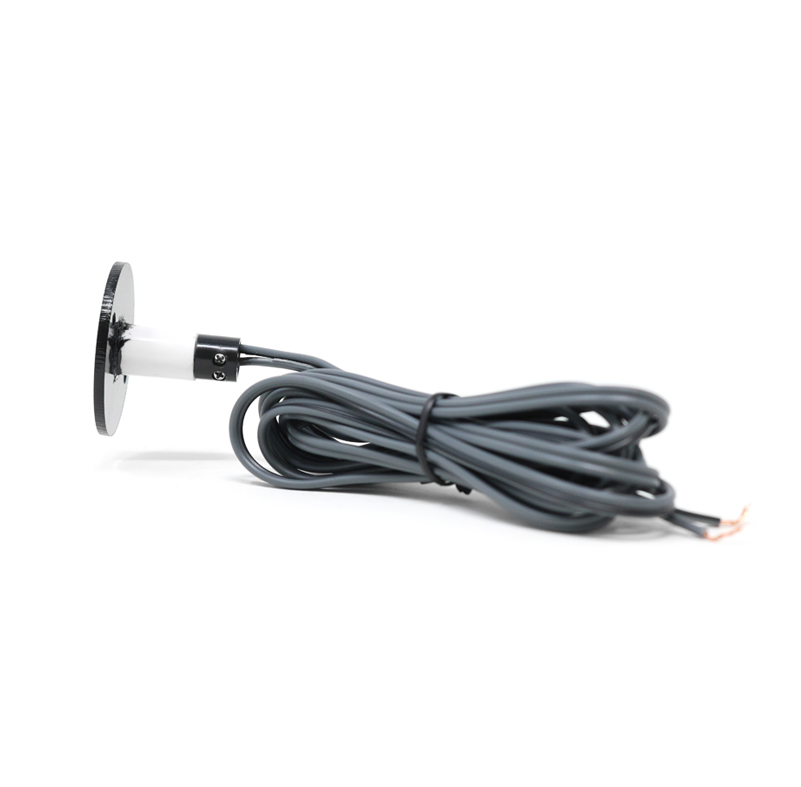

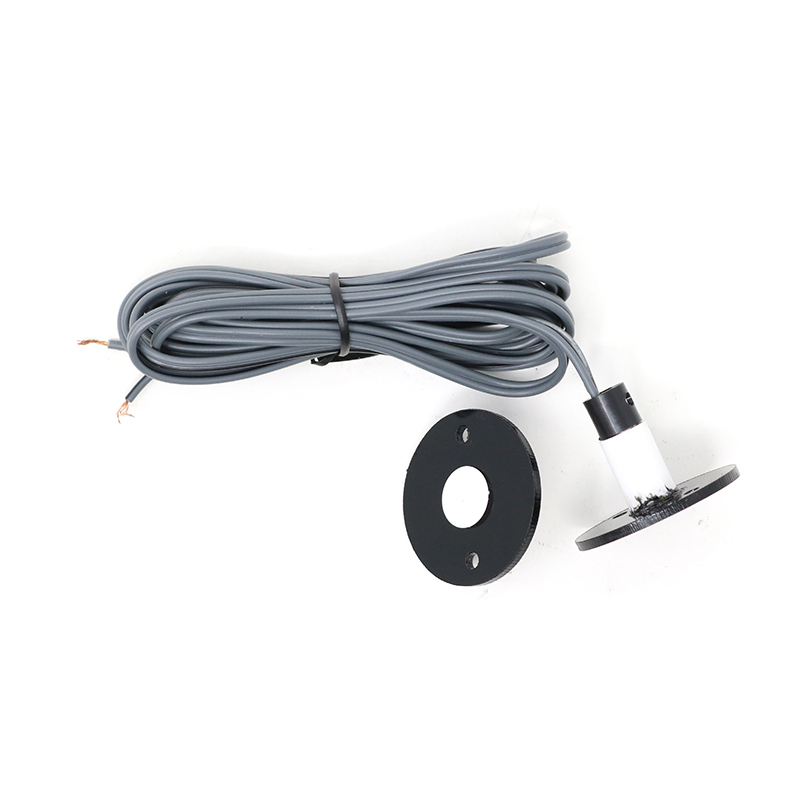

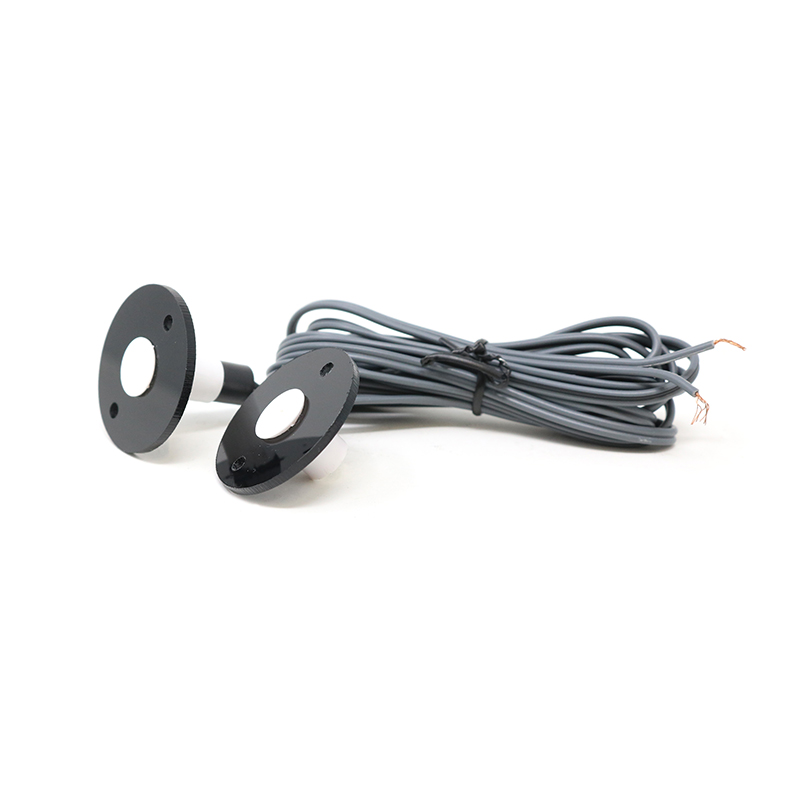

Reed Sensor with Magnet and cable

Reed Sensor with Magnet

10mm Distance to Trigger

The Reed Sensor has a trigger distance of 10mm (1cm) for tightly enclosed spaces/designs. When it detects a magnet within this range, it sends what is the equivalent of a button trigger to your audio or video player, such as the SoundClip and VideoClip-HD.

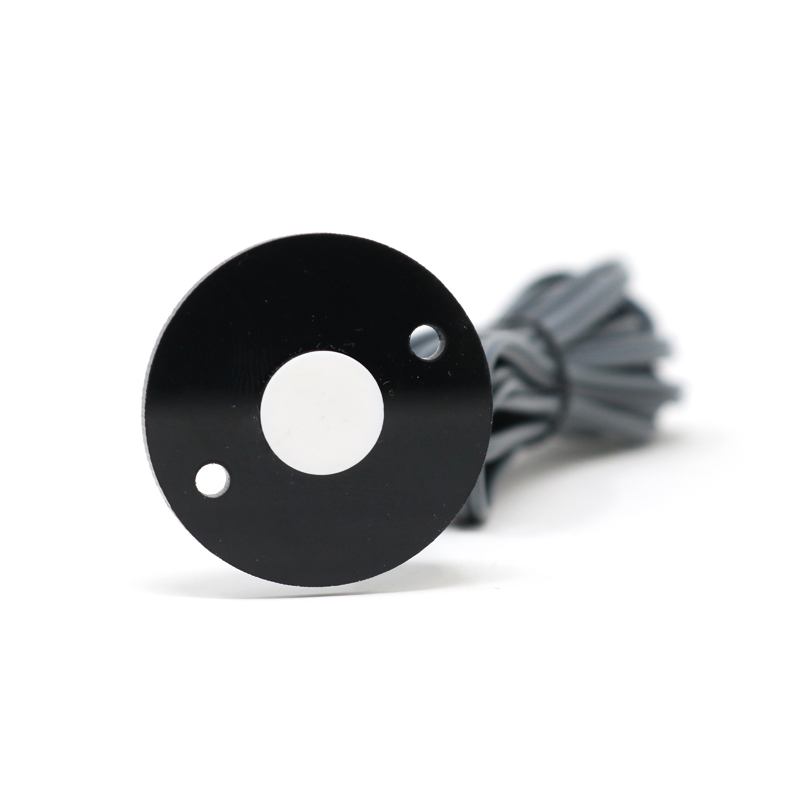

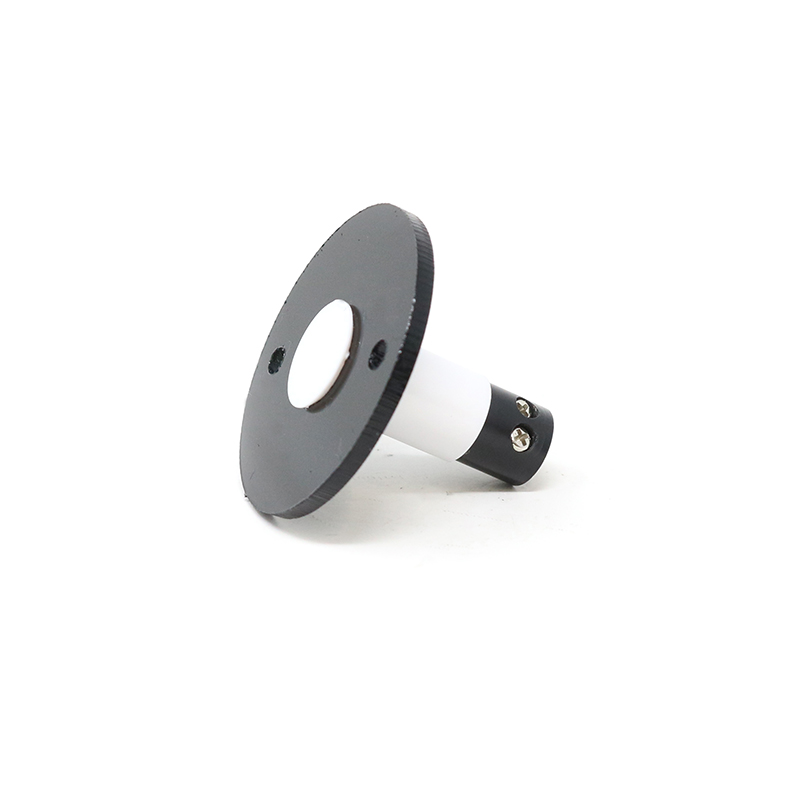

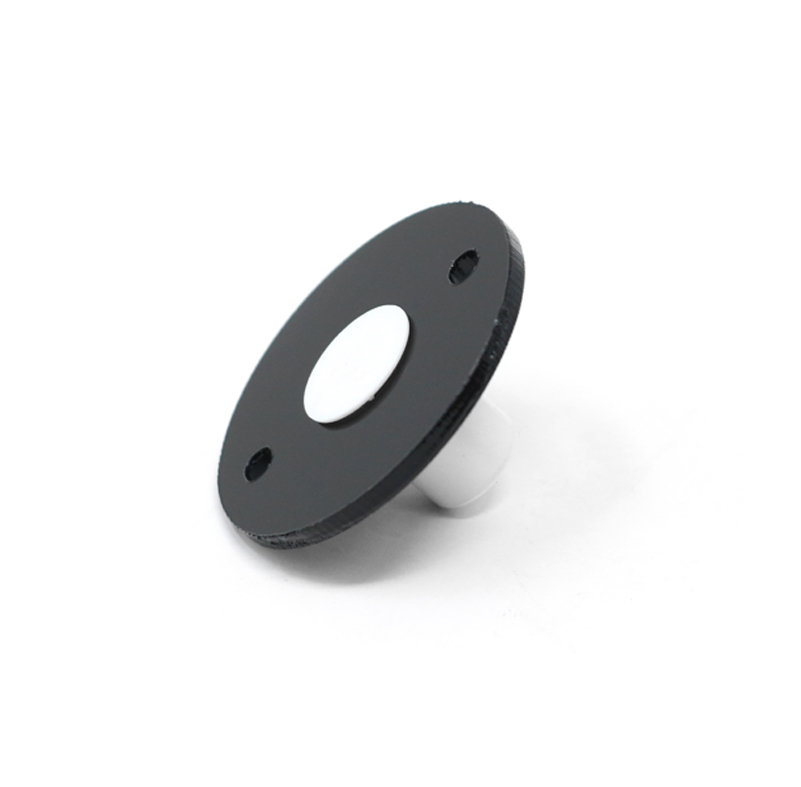

With or Without Mounting Plate

The Reed Sensor is mounted through a surface, you can purchase the sensor and magnet on its own or with a mounting plate attached to both for easier installation into your chosen surface.

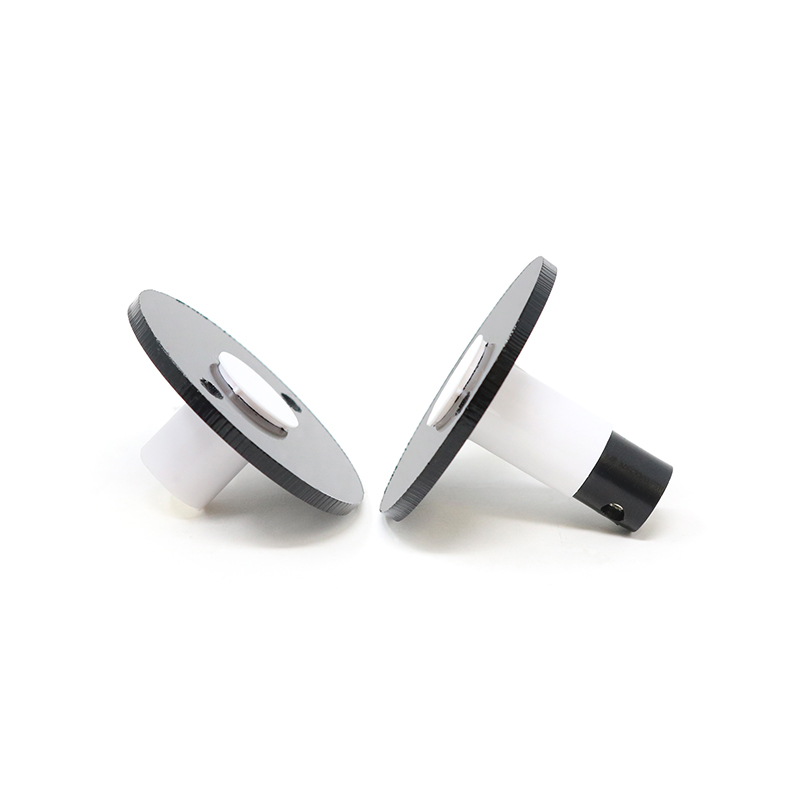

Reed Sensor and Magnet with Mounting Plates back

SoundClip-8 and VideoClip HD8

SoundClip, VideoClip or Own Device

The Reed Sensor has been developed specifically for use with our range of products and is supplied with bare ends.

When used with a SoundClip or VideoClip you simply connect the bare ends to the green terminal connections supplied with those products.

Check with the manufacturer regarding compatibility and installation if using your own device.


Get Creative!

Here is an example of how we utilised the Reed Sensor at the National Oceanography Centre in Southampton. We installed 7 sensors into a bespoke wheel unit connected to a VideoClip. Turning said wheel then activated video on the large screen above.

Reed Sensors Installed at National Oceanography Centre

Additional information

Weight0.006 kg
Dimensions12 × 12 × 27 mm
Sensor Dimensions

12 x 12 x 27 mm ( 35 x 35 x 27 mm with Mounting Plate )

Magnet Dimensions

12 x 12 x 15 mm ( 35 x 35 x 15 mm with Mounting Plate )

Cable Length


Max Power

10W, Max Voltage: 100V, Max Current: 0.5A






10 mm

Switch Type

Normally open (closing when magnet is in range)

Hole Cutout Size

ø 10.5mm
