Proximity / Wave Sensor

£30.00£39.00 excl. vat

The Proximity Sensor can be connected to our range of audio/video players allowing for simple activation of AV content. The sensor has a detection distance of 3-80cm. Alternatively, we offer longer distances with our standard PIR Sensor (4/7M) available here.

Clear

Description

Proximity Sensor

The Proximity Sensor is an all-in-one infrared transmitter and receiver. It is triggered when a hand or an object is placed within a detection range (between 3-80cm). This can be used to trigger audio or video content when used alongside a compatible media player.

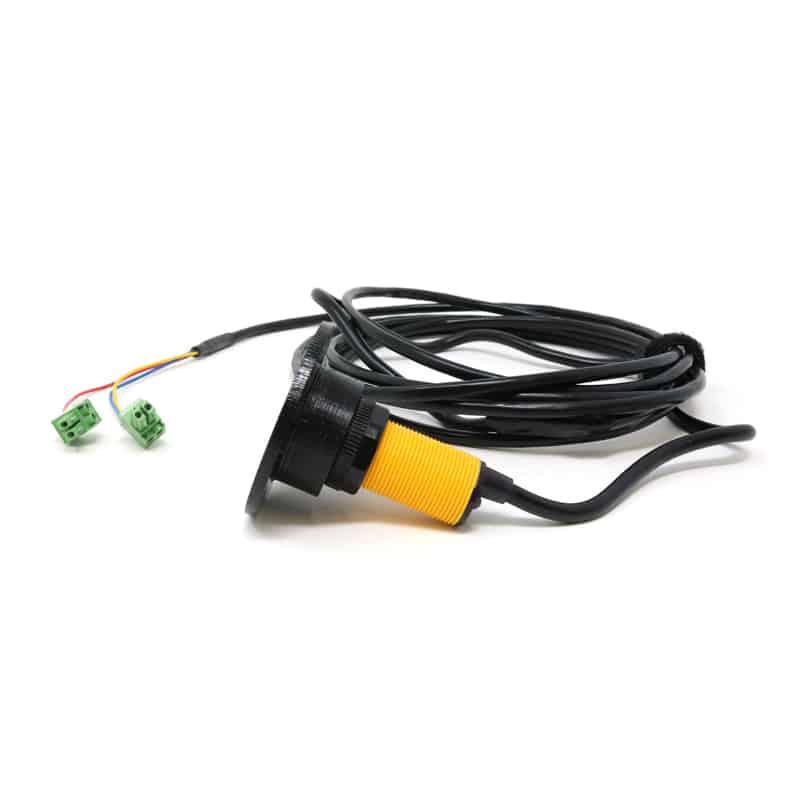

Silver Wall Mounting Proximity Sensor

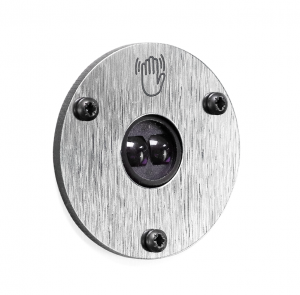

Proximity Sensor Wall Mounted Silver

Through Panel Fixing

Desktop Mounted Proximity Sensor through Wall

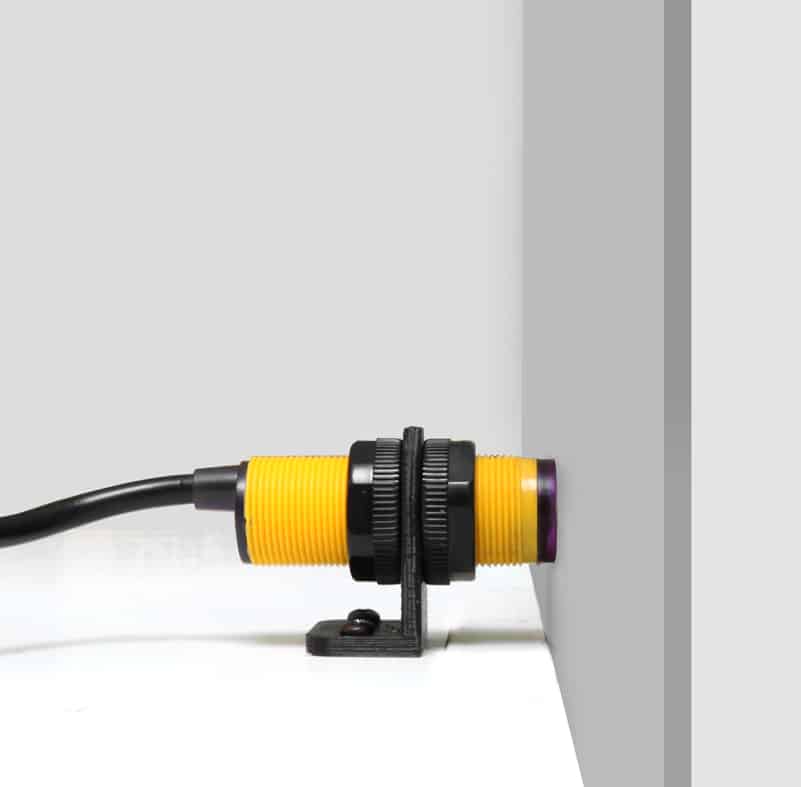

L Bracket Fixing

Easy to Install

The Proximity Sensor is mounted through a panel or on a tabletop via supplied L bracket. Simply fit into place with supplied fixing screws.


Control the Detection Range

The Sensor includes a built-in controller allowing for custom distances between 3-80cm. Simply turn the rear screw-head clockwise for a longer distance, and anti-clockwise for shorter.

Proximity Sensor Distance Controller

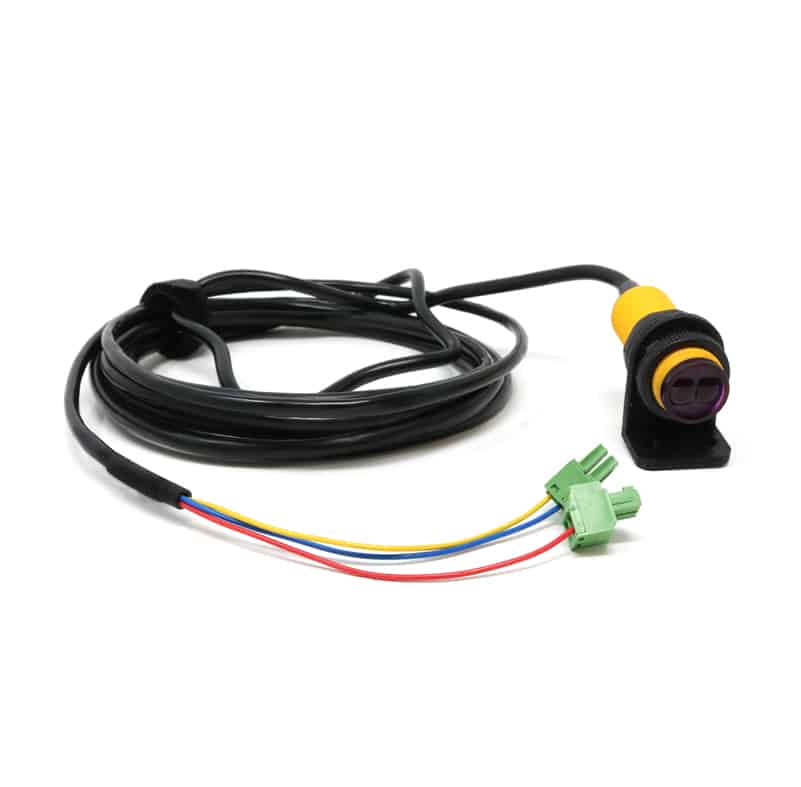

Desktop Mounted Proximity Sensor

Use with a SoundClip

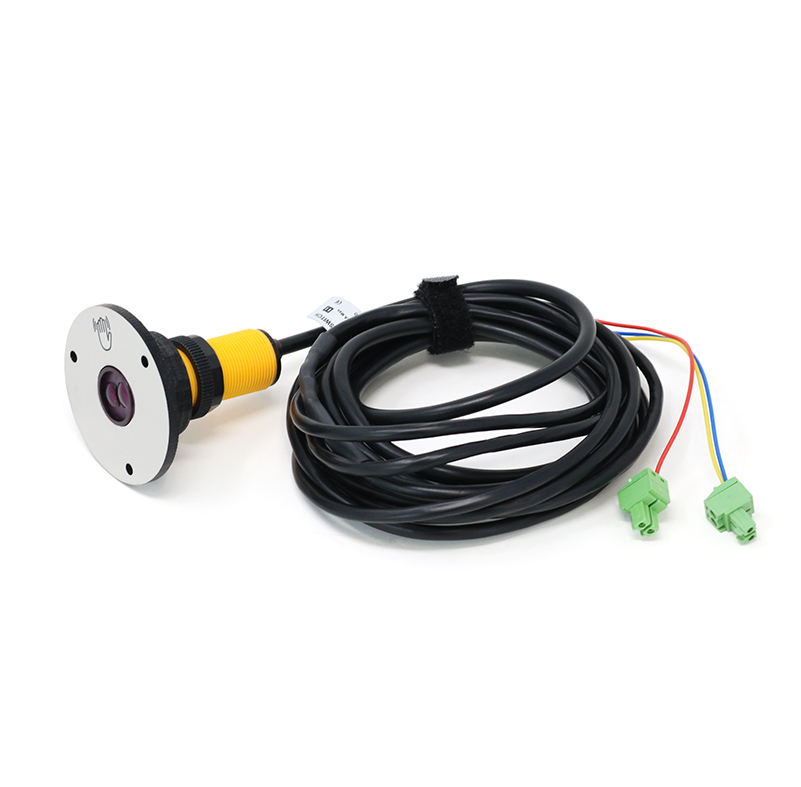

The IR Wave Sensor has been developed specifically for use with our range of products. When used with a SoundClip it will be supplied with the required green terminal connections (SoundClip not supplied). View the SoundClip range here.




Use with a VideoClip HD8

When purchased for use with a VideoClip HD8 the Proximity Sensor will be supplied with the required a 3.5mm Jack connection and specific connection wire (VideoClip not supplied). View the VideoClip HD8 here.

Silver Proximity Sensor with VideoClipHD8

Silver Proximity Sensor with VideoClipHD6

Use with a VideoClip HD6

When purchased for use with a VideoClip HD6 the Proximity Sensor will be supplied with the required a 3.5mm Jack connection and a specific connection wire (VideoClip not supplied). View the VideoClip HD6 here.


Additional information

Weight0.1 kg
Dimensions50 × 50 × 50 mm
Operating Voltage

5VDC

Operating Current

100mA

Distance of Detection

3-80cm

Induction Angle

≤15°

Response Time

<2ms

Operating Temperature

-25°C to +55°C

Downloads

Downloads

Proximity Sensor Spec Sheet

0.1MB – January 2022
