SoundClip8L

SoundClip-8L, 8x Button & Light Outputs

£250.00

SoundClip-8L the 8 button solid-state stereo audio playback device with 8 programmable light outputs. Can play 8 tracks button activated or up to 99 in looping and next / previous mode.

Description

Solid State Audio

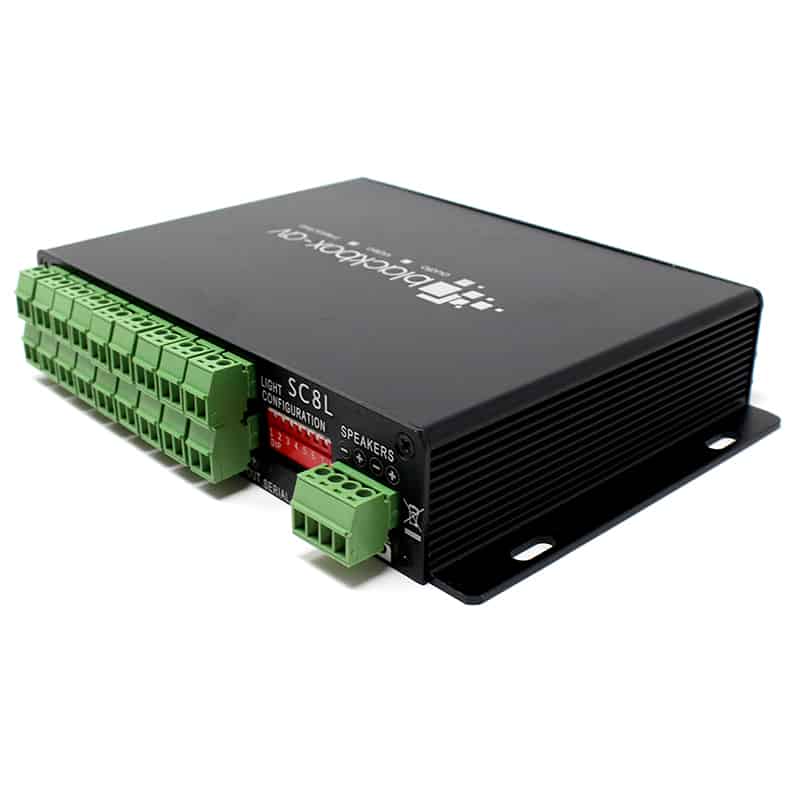

The SoundClip-8L is from our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via wired terminal. It can play in 8 Button activation, looping or PIR activation mode and supports up to 99 tracks.

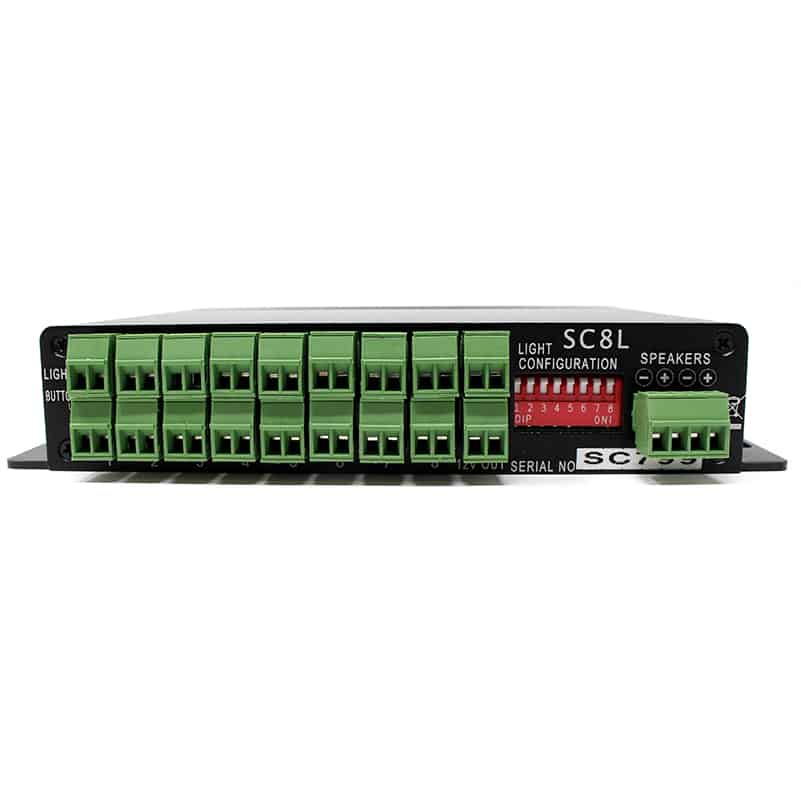

It also includes 8 Light Outputs built-in which can be configured to turn on/off depending upon up to 8 tracks being played. These are compatible with 12v wired terminal lighting such as LED strips.


Play Modes

.mp3 or .wav files are stored on a MicroSD card (included) which is then inserted into the SC-8.

The SC-8L can be programmed to play up to 99 files in a number of ways;

  • Looping play all
  • Play all once upon button or PIR activation
  • Next / Previous mode via 2 buttons
  • 1 file activated on each buttons (8 files)

The SC-8L can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation).

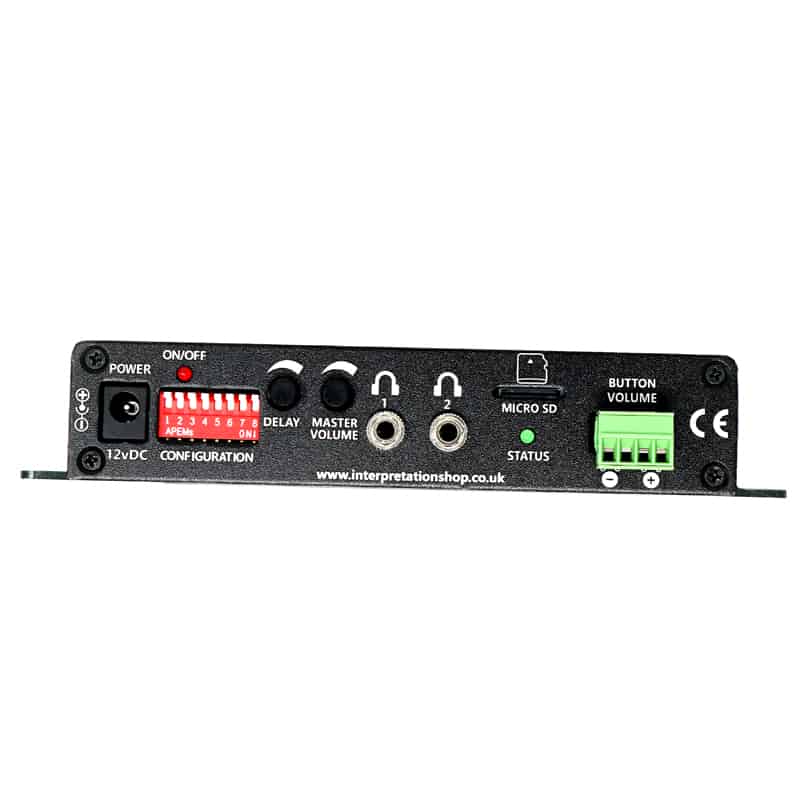

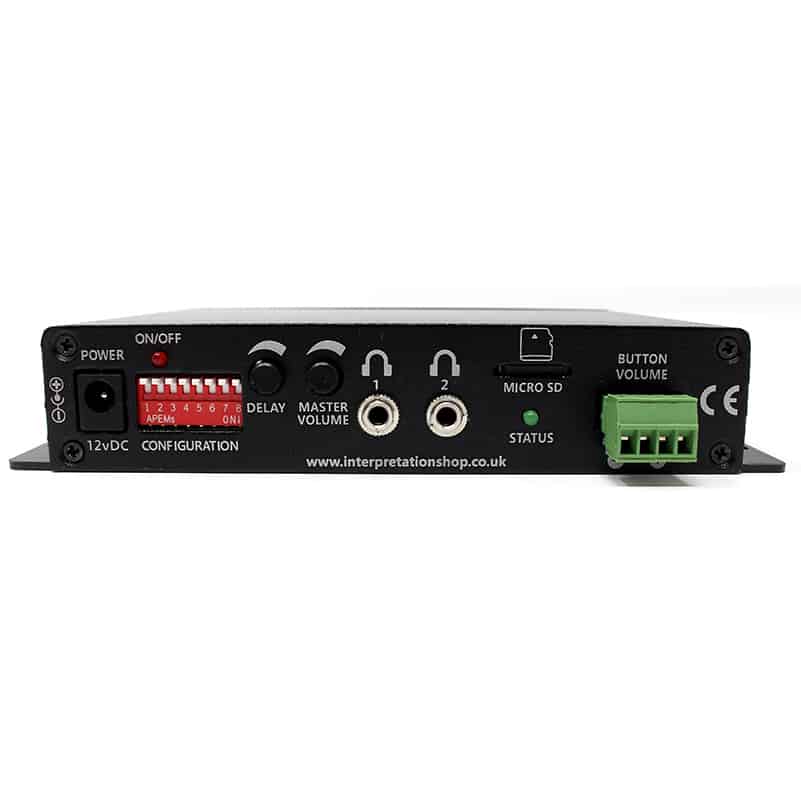

8 lighting outputs are easily programmed via dip-switch to activate or deactivate when a track is played, this supports up to 8 tracks with any additional tracks activating all lighting outputs as standard. See manual for more information (in downloads section).


Key Features

  • Inbuilt 3w dual channel Amp
  • Supports 8 button inputs (not including volume controls)
  • 8 Configurable light outputs
  • Easy to programme via MicroSD card and dip switches
  • PIR compatible
  • Piezo one piece button compatible
  • Button activated or Looping
  • Dedicated volume button input
  • Delay timer between content activation
  • Delay timer between tracks

Output Options

  • Up to two handsets / headsets
  • Up to two speakers
  • Lighting – programmable 8 lighting controller, Set 1 – 8 tracks to activate / deactivate lighting

Easy Fitting

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-8L’s design and its two fixing wings means it can be installed securely into any suitable space.


Additional information

Weight 0.4 kg
Dimensions 110 × 155 × 28 mm
Message storage medium

MicroSD Card

Maximum number of audio Files

The SC-8L can play a maximum of 99 files

Message encoding format

.mp3 or .wav

Speaker audio output

2 x 3w 4/8ohm Speakers (stereo)

Speaker connector

2 x screw terminals

12v Out

Power PIR or other 12v accessories

Lighting Outputs

x 8 lighting output terminals, power 12v lighting such as LED strips or bulbs connected via screw terminals.

Power Consumption

2.5W with Headphones, 8.5W with Speakers (max)

Power Supply

External power supply 12v

Downloads

Manual(s)

SC-8L User Manual

0.3MB – September 2017
