SoundClip-16, 16 button, Looping or PIR

£225.00 excl. vat

SoundClip-16, the 16 button solid-state stereo audio playback device. Can play 16 tracks button activated or up to 99 in looping and next / previous mode.

If you need an extension cable for this device purchase one here.

Description

Activation

The SoundClip-16 is from our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via wired terminal. It can play in 16 Button activation, looping or PIR activation mode and supports up to 99 tracks.


Key Features

  • Inbuilt 3w dual channel Amp
  • Supports 16 button inputs (not including volume controls)
  • Easy to programme via MicroSD card and dip switches
  • PIR compatible
  • Piezo one piece button compatible
  • Button activated or Looping
  • Dedicated volume button input
  • Delay timer between content activation

Play Modes

.mp3 or .wav files are stored on a MicroSD card (included) which is then inserted into the SC-16.

The SC-16 can be programmed to play up to 99 files in a number of ways;

  • Looping play all
  • Play all once, upon button or PIR activation
  • Next / Previous mode via 2 buttons
  • 1 file activated on each buttons (16 files)

The SC-16 can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation). There is also a single light output that’s activated (on) when a track plays, and deactivated (off) when no tracks are playing as standard.


Output Options

  • Up to two handsets / headsets
  • Up to two speakers
  • Lighting – as standard lights will activate when content plays, and deactivate when content stops

Fitting Options

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-16’s design and its two fixing wings means it can be installed securely into any suitable space.


Additional information

Weight0.4 kg
Dimensions110 × 155 × 28 mm
Message storage medium

MicroSD Card

Maximum number of audio files

The SC-16 can play a maximum of 99 files

Message encoding format

.mp3 or .wav

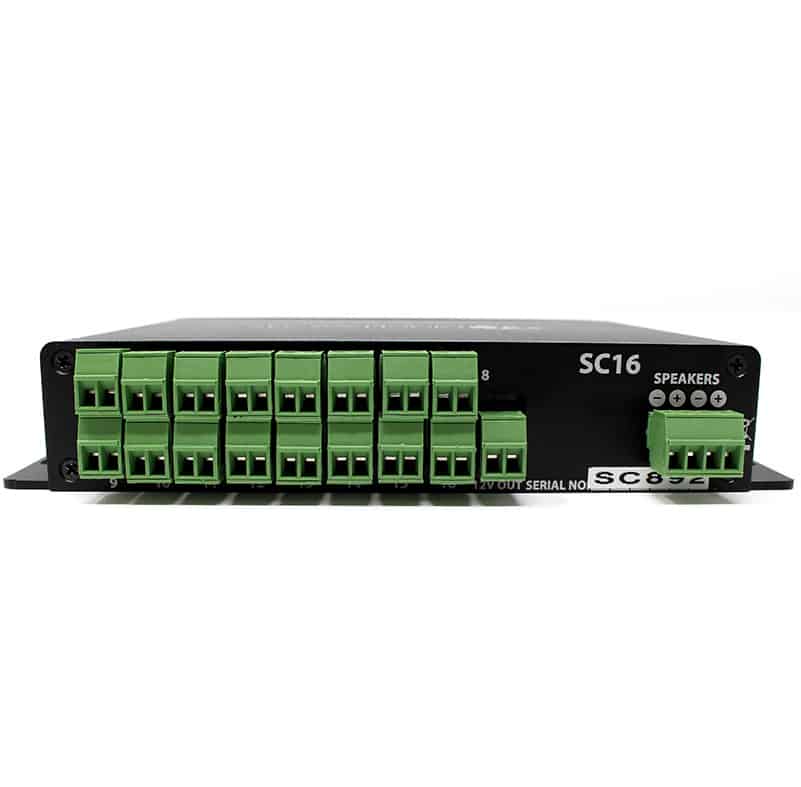

Number of Buttons/Trigger Inputs

16

Number of Lighting Outputs

1 via the 'GPIO / 12V Out' terminal

Lighting Power Output

6W

Speaker audio output

2 x 3w 4/8ohm Speakers (stereo)

Speaker connector

2 x screw terminals

12v Out

Power PIR or other 12v accessories

Power Consumption

1.5W with Headphones, 7.5W with Speakers

Power Supply

External 5.5 x 2.1 DC12V 2A Power Connector

Downloads

Manual(s)

SoundClip-16 Manual

1.2MB – June 2021 V1.1

SoundClip-16 Spec Sheet

0.3MB – June 2020
