SoundClip 2 (2)

SoundClip-2, 2 Button, Looping or PIR

£145.00

SoundClip-2, the 2 button solid-state stereo audio playback device. (Buttons are not included with the product)

Description

Solid State Audio

The SoundClip-2 is the first in our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via wired terminal.


SoundClip-2 Audio Player

Play Modes

.mp3 or .wav files are stored on a MicroSD card (included) which is then inserted into the SC-2.

The SC-2 can be programmed to play up to 99 files in a number of ways;

  • Looping play all
  • Play all once upon button or PIR activation
  • Next / Previous mode via 2 buttons
  • 1 file activated on each buttons

Activation

The SC-2 can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation).

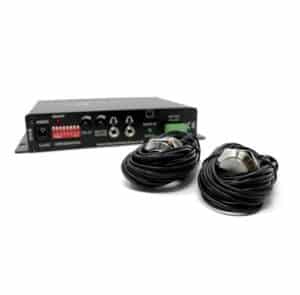

SoundClip-2 Audio Player Buttons

AutoPlay Double Cup Headphones

Output Options

  • Up to two handsets / headsets
  • Up to two speakers
  • Lighting – as standard lights will activate when content plays, and deactivate when content stops

Easy Fitting

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-2’s design and its two fixing wings means it can be installed securely into any suitable space.

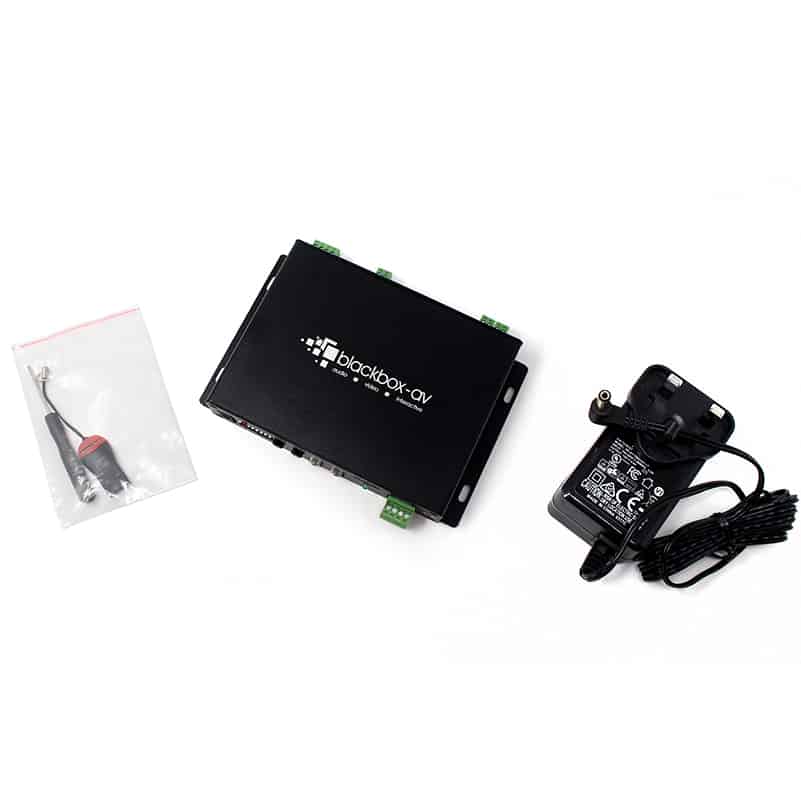

SoundClip-2 What You Get

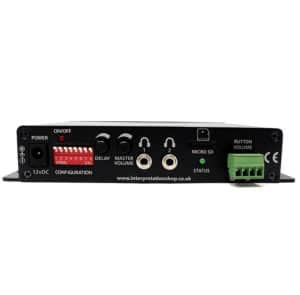

SoundClip-2 Audio Player Dipswitches

Key Features

  • Inbuilt 3w dual channel Amp
  • Supports 2 button inputs (not including volume controls)
  • Easy to programme via MicroSD card and dip switches
  • Simple lighting controller (on with content, off when silent)
  • PIR compatible
  • Piezo one piece button compatible
  • Button activated or Looping
  • Dedicated volume button input
  • Delay timer between content activation

SoundClip Range

We have a range of Soundclips designed to meet various requirements, mainly depending upon the amount of button inputs or lighting outputs you require. Which soundclip is best for your needs?

  • File Format
  • Maximum No. Files
  • Play Modes
  • Button Inputs
  • Speaker Terminal
  • 3.5mm Jacks
  • Lighting Outputs
  • PIR Compatible
  • Dedicated Volume Inputs

SoundClip-2
£145
  • File Format

    .mp3 / .wav

  • Maximum No. Files

    99

  • Play Modes

    Looping / 1 message per button / Next - Prev

  • Button Inputs

    2

  • Speaker Terminal

    2 (Stereo)

  • 3.5mm Jacks

    2

  • Lighting Outputs

    1

  • PIR Compatible

    Yes

  • Dedicated Volume Inputs

    Yes

SoundClip-8
£185
  • File Format

    .mp3 / .wav

  • Maximum No. Files

    99

  • Play Modes

    Looping / 1 message per button / Next - Prev

  • Button Inputs

    8

  • Speaker Terminal

    2 (Stereo)

  • 3.5mm Jacks

    2

  • Lighting Outputs

    1

  • PIR Compatible

    Yes

  • Dedicated Volume Inputs

    Yes

SoundClip-16
£225
  • File Format

    .mp3 / .wav

  • Maximum No. Files

    99

  • Play Modes

    Looping / 1 message per button / Next - Prev

  • Button Inputs

    16

  • Speaker Terminal

    2 (Stereo)

  • 3.5mm Jacks

    2

  • Lighting Outputs

    1

  • PIR Compatible

    Yes

  • Dedicated Volume Inputs

    Yes

SoundClip-8L
£250
  • File Format

    .mp3 / .wav

  • Maximum No. Files

    99

  • Play Modes

    Looping / 1 message per button / Next - Prev

  • Button Inputs

    8

  • Speaker Terminal

    2 (Stereo)

  • 3.5mm Jacks

    2

  • Lighting Outputs

    8

  • PIR Compatible

    Yes

  • Dedicated Volume Inputs

    Yes

Additional information

Weight 0.4 kg
Dimensions 110 x 155 x 28 mm
Message storage medium

MicroSD Card

Maximum number of audio Files

The SC-2 can play a maximum of 99 files

Message encoding format

.mp3 or .wav

Speaker audio output

2 x 3w into 4/8ohm Speakers (stereo)

Headphone audio output

2 x 3.5mm audio jack (headphones / handsets etc,)

Speaker connector

2 x screw terminals

12v Out

Power accessories such as LED lighting strips (turn on when audio plays and off when audio stops) or PIR sensor

Power Supply

External power supply 12v

Downloads

Manual(s)

SC-2 User Manual

0.4mb – September 2017


Downloads

SC-2 Specification Sheet

0.1mb – May 2018
