22 Inch All-in-One Touchscreen & PC screen

All-In-One Touchscreen/PC 22″

£1,499.00£3,494.00

An elegant 22″ All-In-One Touchscreen & PC solution – everything you need to run interactives in a single unit.

Clear
SKU: N/A Categories: , Tag:

Description

All-In-One

The 22″ All-In-One Touchscreen/PC provides a simple yet elegant interactive platform for use within public displays. Contending with a separate PC and screen and all the associated cabling can be a thing of the past. This unit is easily installed via Vesa Mount fixings or the (removable) panel fixing wings which make it perfect for custom installations. Build it into practically any unique displays easily and quickly.

22 Inch All-in-One Touchscreen & PC Fixing Wings

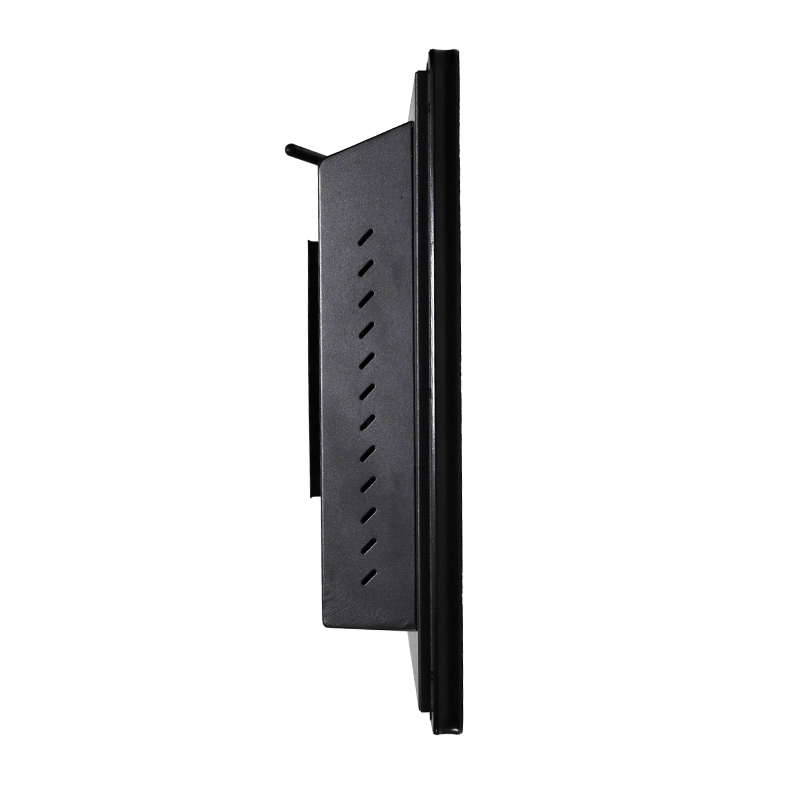

22 Inch All-in-One Touchscreen & PC side angle

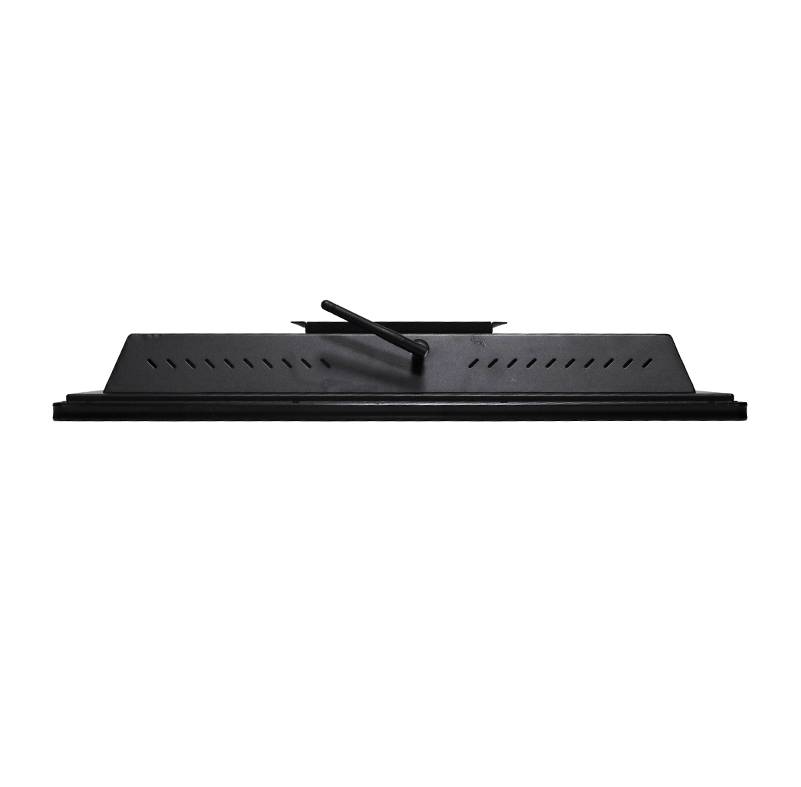

Low profile – High Specs

Just 53.6mm deep the All-in-One Touchscreen/PC boasts a low profile, however the high spec i5 (Intel core i5 4590 CPU @3.3Ghz plus 8GB DDR3 ram and 120gb SSD) PC contained ensures amazing performance. A High quality 1080p display is installed behind a 3mm tempered glass touch panel. The unit can be used in either portrait or landscape and has a 10 point touch capability.

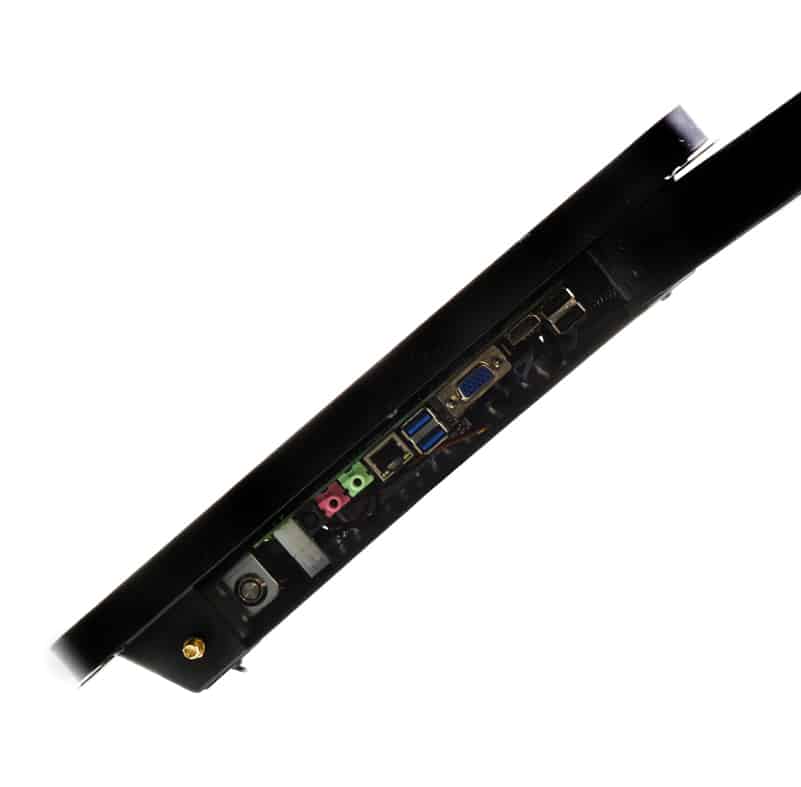

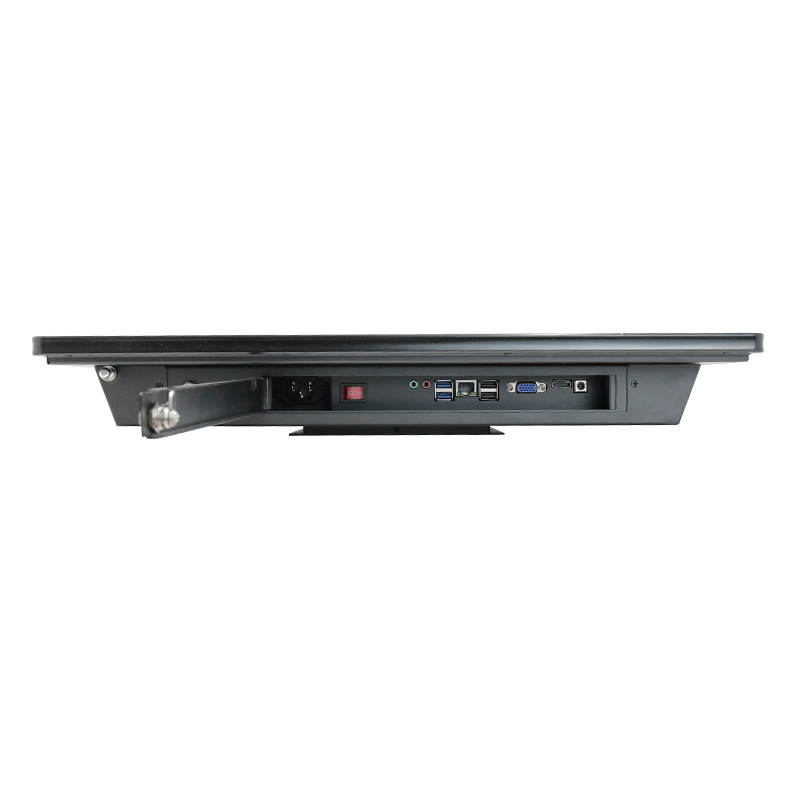

Inputs Behind Lockable Compartment

Access to 4 x USB, HDMI, RGB, MIC, 3.5mm Audio and Ethernet are located behind a lockable door, ideal if you intend to utilise the screen in a public space without needing to build it into a bespoke unit.

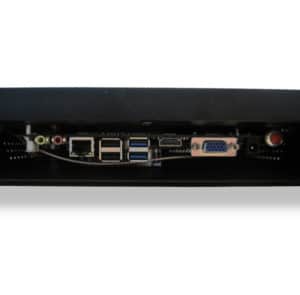

22 Inch All-in-One Touchscreen & PC Inputs

22 Inch All-in-One Touchscreen & PC what you get

Installation Options

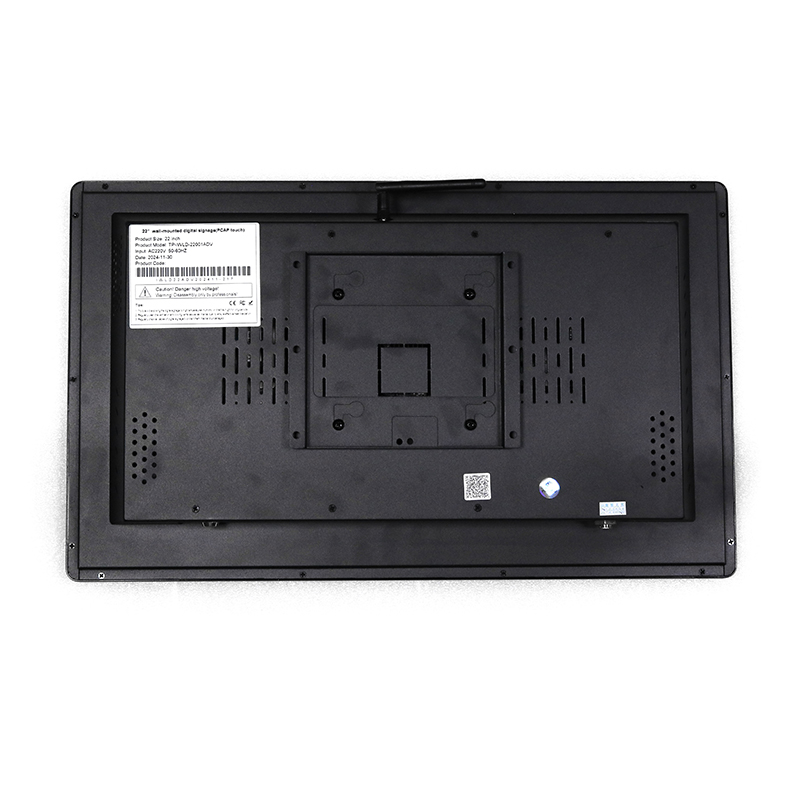

The All-in-One Touchscreen/PC boasts a 100x100mm Vesa mount as well as through panel fixing wings, allowing the easy installation via wall mount or within bespoke units. Making it ideal for exhibition spaces and custom builds. The touchscreen also features a magnetic key which can be used to startup and shutdown via a magnetic sensor.


Purchase Options

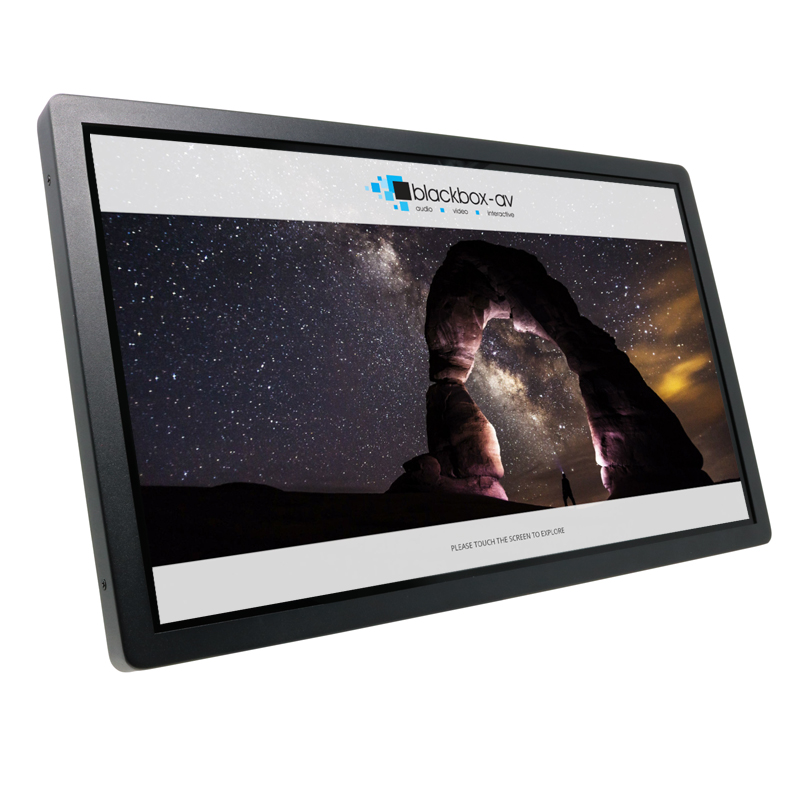

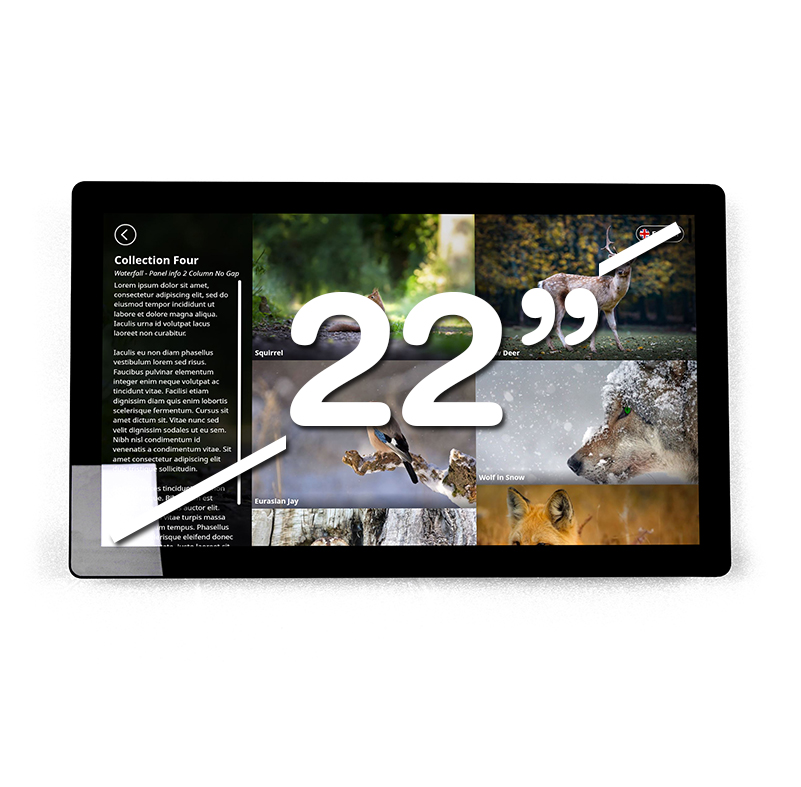

With or Without Lightbox 3. Lightbox 3 is our off-the-shelf media browsing software, fully compatible with multi-touch screens Lightbox allows you to present audio, video, images and textual content to visitors in a fully customisable and brandable interface.

Lightbox 3 Software - Space Theme

Additional information

Weight 8 kg
Dimensions 525 x 58 x 325 mm
CPU

Intel i5 4750 @3.2Ghz 4 Core

RAM

8GB DDR III 1333RAM

HDD

128GB SSD

Graphics

HD4600

Speakers

Dual channel amplified speakers for Stereo, 8Ω 5W

Interface

4 USB Ports, 1 10/100/1000m Net Port, Integrated wireless card, Sound Card

Motherboard

Intel H61

Operating System

Windows 7 64 bit

PC Power Adapter

DC Power

Touch Points

10 Points

Type

Capacitive Touch

Brightness

500 cd/m2 or 450 cd/m2

Viewing Angle

89°/89°/89°/89°

Contrast

3000:1 or higher

Backlight tube life

More than 40,000 hours

Operating Temperature

0-50°c

Response Time

6ms

Max Resolution

1920×1080

Dot Pitch

0.297

Downloads

Manuals

22” All-in-one Multi-Touch Manual v1.2

0.8mb – December 2017

22″ All-In-One Line Drawing

0.2mb – November 2015
