Video Frame 12 in Black

VideoFrame 12 Kiosk


A media playback system which lets users access audio, video or pictures at the touch of a button.

SKU: N/A Categories: , Tag:


Video Frame 12 in Black

12 User Activated Videos

VideoFrame 12 kiosk is our easy-to-use wall mounted media play back system. Capable of holding up to 12 videos and/or photographs and audio tracks, VideoFrame 12 is blackbox-av’s innovative way of allowing users to engage with content easily, giving them the opportunity to select from a considerable array of media through the simple press of a button. The front “artwork” is interchangeable, allowing you to swap out the design to suit your content. VideoFrame 12 also has a standby video/slideshow function allowing the creation of an attractor screen.


The VideoFrame12 Kiosk comes with a high quality 22″ screen giving you the perfect canvas with which to display your visual content. It is also available in two colours, black and silver.

Video Frame 12 in Silver

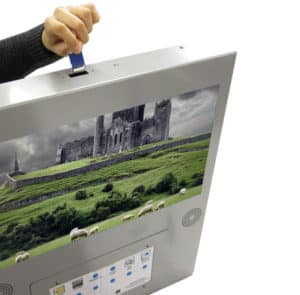

Video Frame 12 Access Slot for SD Card

Easy Updatable

Video content is stored as MPEG 1 (optimal, can play other formats) on an SD card, 4GB maximum, inserted into the top and secured under a screwed down plate. Media files are simply dropped onto the card and left to run without the need for further setup, resulting in a very quick install and next to no maintenance. It also means that updating the content is simple making VideoFrame12 perfect for temporary exhibitions as well as visitor centres and permanent displays.

Fitting Options

The VideoFrame 12 Kiosk can be either fitted using a standard vesa mount bracket (not included) or fixed directly to a wall.

Video Frame 12 SD Slot and Remove Reciever

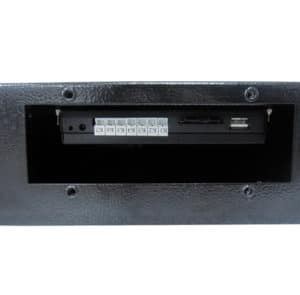

Video Frame 12 SD Card Access

Button Artwork

You will find the template for the button artwork in the downloads section. We recommend printing on 120GSM paper and laminating in 150MIC. Please refer to the manual for instructions on how to secure your button artwork (also in downloads section).

Content Creation

We offer a service should you wish to have visual or audio content created, edited or copied for your VideoFrame 12 kiosk. We can also create the button artwork for an additional fee. Contact us for further details about either product or content at or on 44 (0)1639 874 100.

If you have media already we can pre-load content to your VideoFrame 12 before shipping should you choose, however this service incurs a fee which varies depending upon the job at hand so you will need to contact us, as above, to discuss your project and determine the cost.


If you’re interested in using the VideoFrame 12 platform in a bespoke project, contact us at or on 44 (0)1639 874 100, to discuss your requirements.

Additional information

Weight 18 kg
Dimensions 82 × 571 × 655.6 mm

2mm Steel

Video storage medium

1 CF Card

Maximum SD Card capacity

4 Gb

Maximum number of videos


Playable Format

.Mpg / .JPG / .MP3 / .AVI

Video Output

Composite / S-Video / VGA

Video Format

MPEG 4 (720 x 576, PAL) MPEG 4 (720 x 480, NTSC)

Still Picture Format

JPEG (1280 x 720)

Audio Format

44.1kHz Stereo, 224kbit/s


MPEG 2 (.mpg), MPEG 4 DivX (.avi) JPEG (.jpg



VideoFrame 12 Manual v2

0.1MB – May 2018

VideoFrame 12 Line Drawing

0.09MB – January 2013

EVB Video Converter Guide

0.4MB – May 2018


VideoFrame 12 Button Artwork Template

0.02MB – May 2018
