SoundClip Keypad Device

SoundClip-Keypad

£495.00

SoundClip-Keypad, the simple way to provide access to a high number of audio messages.

Description

Keypad Audio Selection

The SoundClip-Keypad utilises our SoundClip range of audio players alongside a commercial ready Keypad and screen, allowing users to access up to 99 messages through the input of buttons 1 – 99. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via wired terminal.

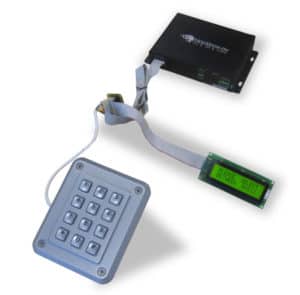

SoundClip Keypad Device

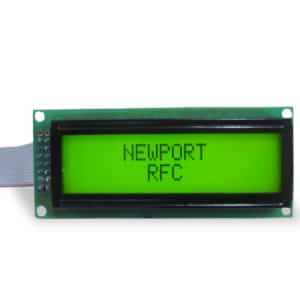

SoundClip Keypad Example Message

Key Features

  • Supports access to up to 99 messages
  • Welcome message programmable screen
  • IP65 rated vandal resistant keypad
  • Inbuilt 3w dual channel Amp
  • Dedicated volume button input (requires 2 buttons, not included)

Easy to Program and Install

Up to 99 .mp3 or .wav files are stored on a MicroSD card (included) which is then inserted into the SC-K. The device is incredibly easy to install due to its compact size. The efficient nature of the SoundClip’s design and its two fixing wings means it can be installed securely into any suitable space.

Here you can see the unit installed into a faceplate as an example – in this scenario we utilised 2 buttons for volume + / – (not included).

SoundClip Keypad Example Faceplate

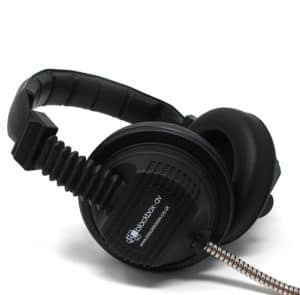

Mark I Armoured Cable Headphones

The Output Options (not included)

As with the standard SoundClip range of solid state audio players, you have the option to output to;

  • Up to two handsets / headsets
  • Up to two speakers

Note that these are not included and must be purchased separately.

Additional information

Weight 0.4 kg
Dimensions 110 x 155 x 28 mm
Message storage medium

MicroSD Card

Maximum number of audio Files

The SC-K can play a maximum of 99 files

Message encoding format

.mp3 or .wav

Speaker audio output

2 x 3w 4/8ohm Speakers (stereo)

Headphone audio output

2 x 3.5mm audio jack (headphones / handsets etc.)

Speaker connector

2 x screw terminals

12v Out

Power accessories such as LED lighting strips (turn on when audio plays and off when audio stops) or PIR sensor

Power Supply

External power supply 12v

Keypad

IP65 Rated, Vandal Resistant

Screen

16×2 character (32 character per message) backlit LCD

Downloads

Manual(s)

SC-K User Manual v1.2

0.6mb – January 2018
