Solar Audio Post - Tall Oak

Solar Audio Post – Oak Finish / Metal

£595.00£850.00

The Solar Post is an external solar powered button activated audio point available in Oak finish or Metal. Includes USB Programming Dongle for user updated content. Weight & Dimensions as packaged.

Clear
SKU: N/A Categories: , Tag:

Description

Solar Audio Post

Activated by two external buttons the solar powered Audio Post is a self-powered external sound store, capable of playing up to 6 audio messages (updatable via supplied USB Programming Dongle). The Solar Audio Post is available in either Oak Finish, Metal or as Electronics Only (to be built into a unit of your own design).

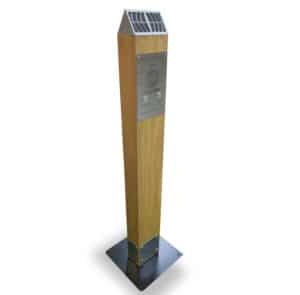

Solar Audio Post - Tall Oak

Oak Finish

The Oak Finish version is constructed from sustainable and robust Accoya® timber with a light oak stain finish – making it incredibly durable as well as environmentally friendly.

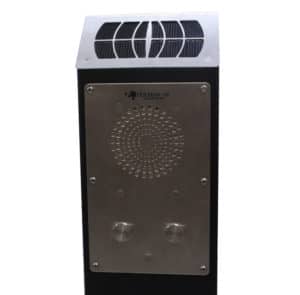

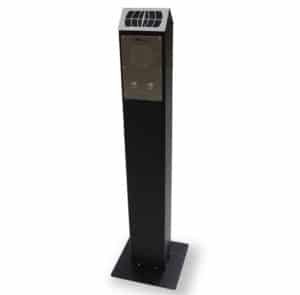

Solar Audio Post - Tall Metal

Metal Finish

The Metal Solar Post is constructed from powder coated aluminium, also incredibly durable.

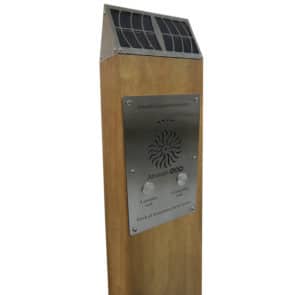

Close up of Solar Audio Post Tall Oak

Powered by Solar Panels

The Solar Audio Post is powered by 4 solar panels, housed behind a stainless steel grille. The panels are angled in such a way as to provide optimal exposure to sunlight throughout the day. Users are able to select which message they wish to hear by pushing each button.

Additional features include 10 volume options and the ability to obtain playback statistics (in audio format) to see how many times the unit has been used. Customers can also easily load new content when desired using the USB Programming Dongle supplied.

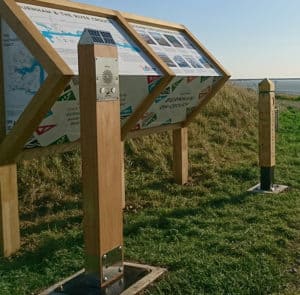

In-Ground Installation

The Solar Audio Post can be fixed to the floor via a mounting plate, or the Oak option can also be installed in-ground (see Oak Line Drawing)


Purchase Options

The Solar Audio Post is available as;

  • Oak With Stand
  • Oak In-Ground
  • Tall Metal (with stand)
  • Short Metal
  • Electronics only*

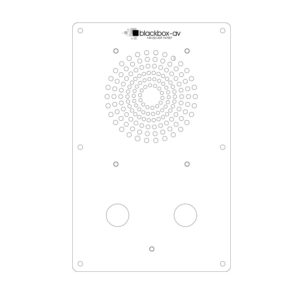

Solar Audio Post Customised Front Plate

Customise your Solar Audio Post

For an additional fee we can laser etch the front plate for customisation.

*For international purchase we also offer the audio post’ solar electronics separate from its post because shipping fees of the heavier posts can become quite extreme, instead you can create your own from the dimension drawings we provide and install the electronics yourself. This version is also good for building the Solar Electronics into a custom housing.

Note: ‘Electronics Only’ comes with 1 Solar panel, When installing the electronics be sure to allow for drainage underneath the metal plate. We suggest a 10mm hole, ensure this does not get blocked over time.

Additional information

Weight 15 kg
Dimensions 190 x 190 x 1200 mm
Oak With Stand Post Dimensions

(LxWxH) 90 x 150 x 1125mm – 13kg

Oak In Ground Post Dimensions

(LxWxH) 90 x 150 x 1479mm – 15kg

Tall Metal Post Dimmensions

(LxWxH) 160 x 128 x 1100mm – 10kg

Power

4 built in Solar Panels charging long life battery(ies) at up to 100mA per hour

Message Storage

64mb Flash Memory (on board)

Maximum No. of Messages

6 (3 on each button)

Message Encoding Format

.mp3

Maximum Total Message Length

>16 minutes @ 64kbs

Programming Transfer Rate

Approx 20 seconds per MB of message

Audio Output

1w into 8ohm speaker

Freq. range

75Hz-20KHz

Downloads

Manual(s)

Solar Post Manual v2.1

0.2mb – April 2017

Solar Post Manual v2

0.1mb – March 2017

Buttons: Solar Audio Post Oak Manual

0.09mb – July 2015

Buttons: Audio Solar Post Manual

0.4mb – June 2013

Audio Solar Post Manual

0.3mb – Pre-February 2013


Downloads

Oak Line Drawing

0.2mb – May 2018

Metal Line Drawing (Short)

0.08mb – May 2018

Metal Line Drawing (Tall)

0.1mb – May 2018

Audio Solar Electronics ONLY Dimensions

0.2mb – May 2018

Audio Solar Post – Audio Files

0.7mb – 2017
