Large PIR Sensors

Large PIR Sensor


PIR Sensors used in conjunction with a variety of our products. Note: Contact us to discuss compatibility of our PIR’s with your own devices.

SKU: N/A Categories: , Tag:


PIR Sensor

A Passive Infrared Sensor (PIR) is an electronic device that measures infrared light radiating from objects within its field of view. We use PIRs to detect human movement to activate or de-activate audio and video devices.

Large PIR Sensors

Large PIR Sensor

Clever Motion Detection

Apparent motion is detected when an infrared source with one temperature, such as a person, passes in front of an infrared source with a different temperature, such as a wall. When the PIR detects movement, it will send a signal to activate your audio video player, such as the SoundClip Audio Player, VideoClip-HD or other media devices.

How are they Fitted?

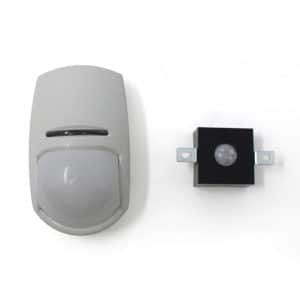

We offer two size of PIR sensors…

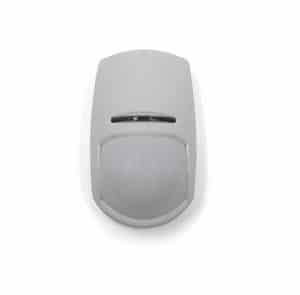

Large Wall/Ceiling PIR: The large version is a modified alarm style sensor which can be mounted onto a wall or on a ceiling. Not compatible with VideoClip-HD.

Small Panel PIR: The Small Panel PIR is a compact unit which can be hidden discretely behind a panel.

With two connection options Bare Ends (compatible with our SoundClip) and 3.5mm jack (compatible with our VideoClip).

Additional information

Weight 1 kg
Dimensions 117 × 69 × 50 mm



PIR Infosheet

0.1MB – May 2018
