AutoPlay Single Cup Headphones with magnetic hanger

AutoPlay Single Cup Headphones

£125.00£145.00

Armoured cable single cup headphones with AutoPlay functionality – content can be triggered when removed from the included magnetic hanger.

Clear

Description

Autoplay

The AutoPlay Singlecup Armour Cable Headphones are the next step from our traditional single cup headphones, now incorporating an Auto-Trigger function which activates content when removed from the new Magnetic Hanger. These reliable, vandal resistant headphones are suitable for any application within the public domain and are a perfect, lightweight alternative to traditional aluminium and plastic handsets.


AutoPlay Single Cup Headphones with magnetic hanger

Unique 90° Swivel Knuckle

The audio cable is protected by a larger 1.2m steel braided cable and are fitted with a unique 90° swivel knuckle to secure the end of the cable in place. We also offer an optional Teardrop Mounting Plate for increased durability at the fitting point as well as a Knuckle Mounting Plate if you wish to install the knuckle elsewhere.

Sound quality from this single closed cup headphone is excellent.


3.5mm Jack

Simply connect the single cup headphone to your audio playback device using the 3.5mm jack. The Auto-Play feature is primarily designed to work when combined with our range of SoundClip audio players, which contain an on-board amplifier. However the Auto-Play function should be compatible with a range of other devices (please confirm with us).

SoundClip-2 Audio Player

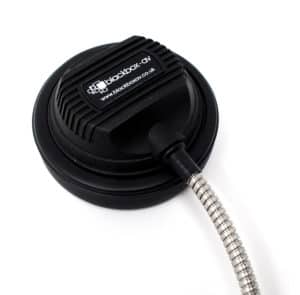

Single Cup Autoplay Armoured Cable Headphone

Fitting Options

The units are very easy to fit on site and are particularly well suited for applications in museums, attractions, retail and other high usage environments. Using the 90° swivel knuckle you fit the headphones through a panel. The optional Teardrop faceplate allows you to combine the Magnetic Hanger and 90° knuckle into a single tidy installation point.


Options

  • Standard (without mounting plates)
  • With Teardrop Mounting Plate
  • With Knuckle Mounting Plate

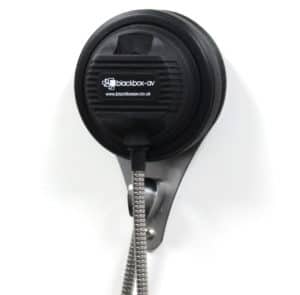

AutoPlay Single Cup Handset with teardrop mounting plate

Additional information

Dimensions N/A
Continuous Power Rating

100 mW

Armoured Cable

1.2m (1.3m fully extended) armoured cable

Driver principle

Dynamic

Nominal Impedance

100 ohm

Freq Response

16 – 21.000 Hz

Sound Pressure Level

96dB (1mW / 1kHz)

External Noise Isolation

appr. 22 dBA

Trigger status

When headphone removed from hanger, the trigger is 'open'

Wiring info

BLACK: Ground – connect to controller, ORANGE: Trigger – contact is n/c

Downloads

Manual(s)

AutoPlay SingleCup Manual

0.2mb – September 2017


Downloads

Line Drawings – Hanger/Knuckle/Headphone

0.07mb – February 2016

Teardrop Mounting Plate Line Drawings

0.02mb – October 2016
