AutoPlay Double Cup Headphones

AutoPlay Double Cup Headphones


Armoured cable double cup headphones with AutoPlay functionality – content can be triggered when removed from the included hanger.

Have you seen our new Heavy Duty Handset?

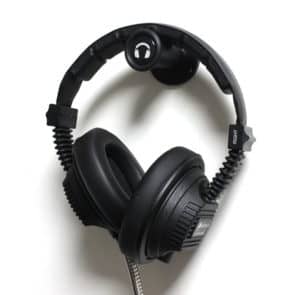

The AutoPlay Double Cup Armour Cable Headphones are the next step for our traditional Double Cups, now incorporating an Auto-Trigger function which activates content when removed from the new Hanger. These reliable, vandal resistant headphones are suitable for any application within the public domain.

90 Degree Swivel Knuckle


The audio cable is protected by a larger 1.2m steel braided cable and are fitted with a unique 90° swivel knuckle to secure the end of the cable in place. Ensuring longevity for the cable when compared with other off-the-shelf options.

Optional Mounting Plate

We also offer an optional Knuckle Mounting Plate for increased durability at the fitting point should it be required. This helps secure the cable in place and avoids wear and tear.

Headphone Knuckle Mounting Plate

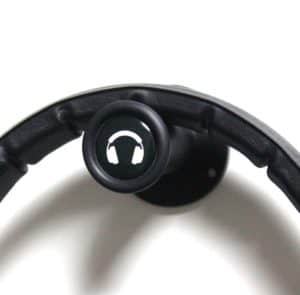

Close Up Of AutoPlay Headphone Hanger

Unique Hanger

The headphones themselves can be connected to any 3.5mm device, the AutoPlay function is enabled via the unique hanger – although primarily designed to work when combined with our range of SoundClip audio players, the Auto-Play function should be compatible with a range of other devices (please confirm with us before purchase).

Easy to Fit

The unit is very easy to fit on site and is particularly well suited for applications in museums, attractions, retail and other high usage environments. Using the 90° swivel knuckle you fit the headphones through a panel, the optional knuckle plate allows you to strengthen this cable connection point and avoid fracturing.


  • Standard (without mounting plates)
  • With Knuckle Mounting Plate
AutoPlay Double Cup Headphones

Additional information

Weight 0.52 kg
Dimensions N/A
Continuous Power Rating

100 mW

Armoured Cable

Steel braided 1.2 meter

Driver principle


Nominal Impedance

100 ohm

Freq Response

16 – 21.000 Hz

Sound Pressure Level

96dB (1mW / 1kHz)

External Noise Isolation

appr. 22 dBA

Trigger status

When headphone removed from hanger, the trigger is 'open'

Wiring info

BLACK: Ground – connect to controller, YELLOW: Trigger – contact is n/c, RED: power 12v



AutoPlay DoubleCup Manual

0.2mb – January 2017


AutoPlay DoubleCup Hanger Line Drawing

0.04mb – Dec 2016

AutoPlay DoubleCup Knuckle Mounting Plate Line Drawing

0.03mb – Jan 2012
