Audio Donation Box Full View

Audio Donation Box

£1,500.00

The Audio Donation Box, give people an audio treat upon receipt of their donation!

Categories: ,

Description

Donation Activated Audio

Whenever a visitor puts a donation through the donation slot, be it coin or note, a message is delivered to the visitor via the built in, solid state playback unit. We feel that more attention can be drawn to donation boxes through the addition of sound, as well as an instant sense of reward and appreciation for a visitor’s contribution.

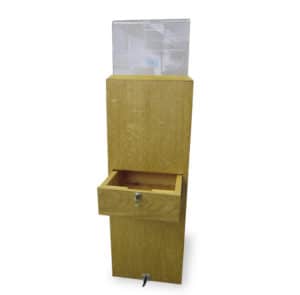

Access Draw for Audio Donation Box

Donations Detected by Sensors

Behind the donation slot are sensors which detect when a donation has been made and will then play a message in response. As standard the solid state playback unit plays a single message (please contact us for bespoke options).


Built-In Security System

A built-in security system has been included which will activate if the unit is moved by an unauthorized person and a special backup battery ensures that the alarm remains active even when the donation box has been removed from mains power, deterring anyone who wishes to make away with donations.

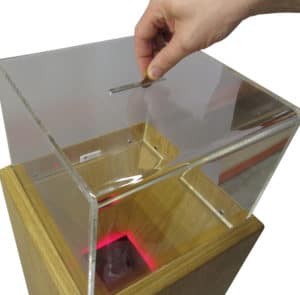

Close up of Audio Donation box in action

Audio Donation Box Angled View

Fitting Options

If you already have a donation box installed, we may be able to provide you with the equipment and instructions to fit it yourself. Alternatively, we would be more than happy to design a customised donation box to your specifications ready for immediate use upon delivery.


Uploading the Audio Content

The Audio Donation box comes with our content upload package as standard, email your audio content to sales@blackboxav.co.uk after ordering your Donation Box, please remember to include your account name and order number! For any enquiries contact us on 44 (0)1639 874 100

Audio Donation Box Full View

Additional information

Weight 17 kg
Dimensions 300 x 300 x 1030 mm
Number of Messages

1 (plus alarm sound) – Contact us for bespoke options

Detection Via

8 beam detection matrix, detects the smallest coin.

Power Supply

External power supply 9 to 16V DC (12V nominal) / 500mA

Message storage medium

64MBit Flash Memory (on board)

Message encoding format

Mp3

Maximum Total Message Length

> 16 minutes @ 64kbs

Audio output

1W into 8ohm speaker

Speaker connector

2 * Screw Terminals SKR /SKRPlay

Alarm Powered Via

Mains power with backup battery supply should the mains be disconnected

Downloads

Manual(s)

Audio Donation Box Manual

0.9mb – May 2018
