7 Inch Open Frame Video Screen to Scale

7″ Open Frame Video Screen & Media Player


7″ Open Frame Video Player – with inbuilt player and easily mounted via Vesa or wing mounts. Can play button activated content via 8 buttons.



The 7″ Open Frame Video Screen (7VS) is an all in one media player and screen. It’s used to display video, images and audio in a small compact manner.

Easily to Programme, Easy to Install

It can play content in a looping fashion or be programmed for push button activation (up to 8 activation). Media files are played from an SDHC Card (card included with test content preloaded) or USB with buttons configured via naming of content in a specific way.

Mountable Speakers

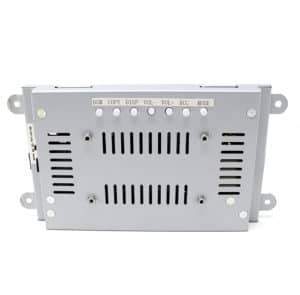

The 7VS comes with mountable speakers attached in the rear of the case. The open frame design allows it to be easily mounted within signage or other such installations.

Key Features

  • Built in Video Player
  • Open Frame with fixing wings and VESA mount for easy mounting
  • Plays video, images or audio in any combination
  • Looping or 8 button activated
  • Supplied with a protective Acrylic 3mm screen protector

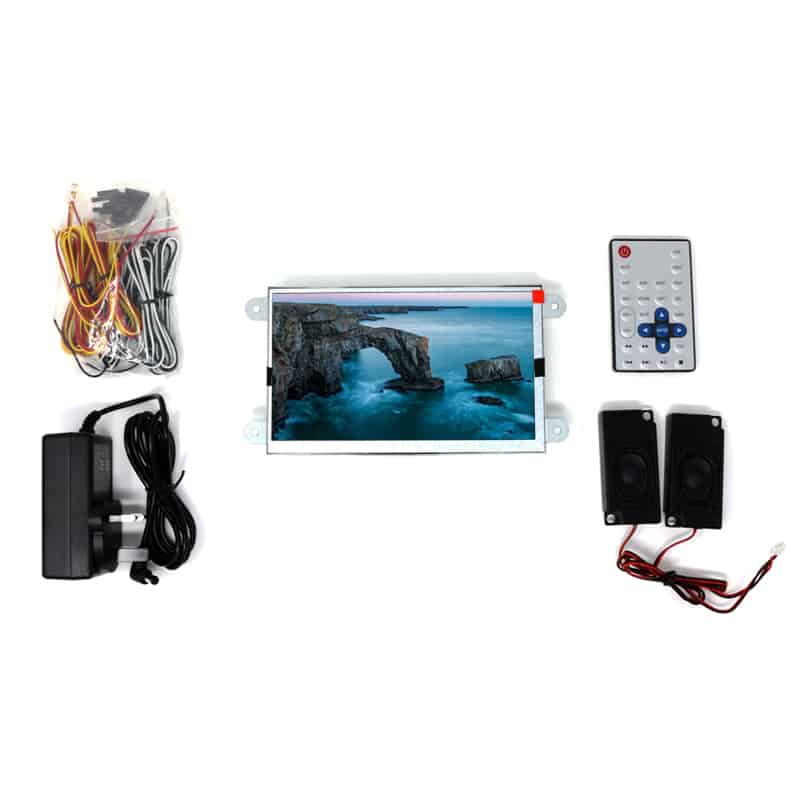

The 7VS is supplied with button connection cables however no buttons. If order with buttons we will pre-fit them before shipping.


The 7VS can output to the included speakers, or if you would rather use headphones (not included) please contact us. As standard the 7VS will output to both speakers and headphones at the same time, which means disabling the speakers is necessary if you wish to output to only headphones (something we need to do here).

Additional information

Weight 0.8 kg
Dimensions 222 × 254 × 100 mm
Screen Size

Frame: 197 (W) x 27.20 (D) x 109 (H)
Video Screen: 154 (W) x 27.20 (D) x 87 (H)

Fixing Options

Fixing wings, 45x75mm Vesa

Audio Encoding

Sample Rate: 8-320KHz, Bitrate: 32 – 448Kbps

Storage medium

USB (4GB USB Supplied)

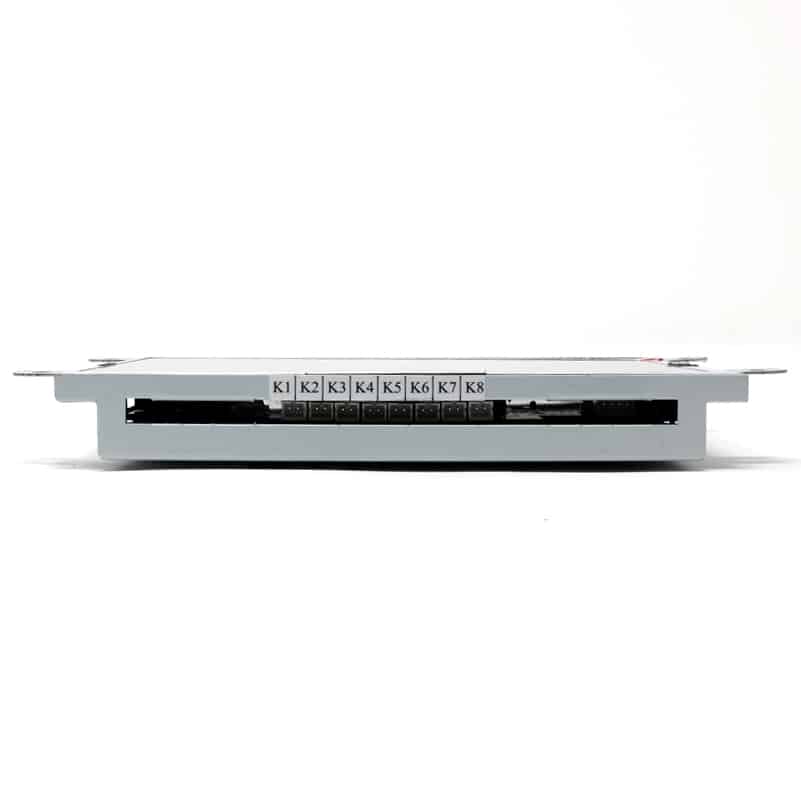

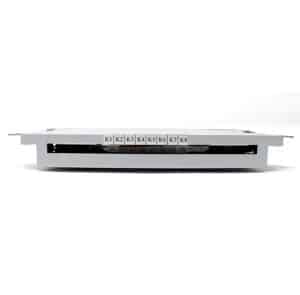

Button inputs

Up to 8

Playable Format

Video: .MP4, Audio: .MP3, Images: .JPG

Still Picture Resolution

Display an image file with maximum 8000x8000px resolution

Video Resolution

1024 x 600

Viewing Angle


Contrast Ratio




Integrated Speakers

2W x 2

Output Type

With Speakers



7VS Manual

0.3MB – March 2019

7VS Spec Sheet

0.4MB – March 2019


7 Inch Open Frame Drawings

0.08MB – June 2018
