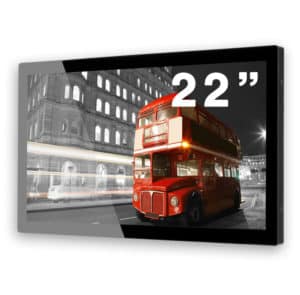

22 Inch Multi Touch Screen Side Angle

22″ Multi-Touch Screen


22″ Multi-Touch Screen



22″ Multi Touch Screen

This 22″ Multi-Touch Screen uses Projective Capacitive Touch Technology. It is built into an attractive yet robust bezel of edge to edge glass. IPS LCD Technology means this screen has great viewing angles, making it ideal for use as interactive digital signage in both the retail and museum/heritage realm.

22 Inch Multi Touch Screen Side Angle

22 Inch Multi-Touch Screen Front View

Key Features

  • Full High Definition
  • Multi-Touch
  • VA Technology
  • Chassis mountable
  • IP54* Rated Screen
  • Attractive Design

IP54* Rated

The IP54* rating means the screen is both dust and water resistant making it stand up extremely well in demanding environments.

This 22″ Multi-Touch Screen has a High Definition resolution of 1920 x 1080 and great colour performance

22 Inch Multi-Touch Screen Inputs

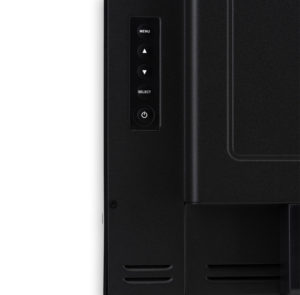

22 Inch Multi-Touch Screen Buttons


This screen is extremely flexible in terms of possible applications, it can be separated from its stand and using a Chassis Mounted Bracket (additional cost) it can be fixed through a panel for seamless integration.

  1. Without Chassis Mounted Bracket
  2. With Chassis Mounting Bracket

*The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

Additional information

Weight 7.2 kg
Dimensions N/A

Diagonal: 21.5" Touchtechnology: projective capacitive, multitouch (2 compatible touch points – supported only under Windows® 7), activated by finger Panel: IPS LED-backlit Glass hardness: 7H minimum Display area h x w: 268.1 x 476.6 mm; 10.6" x 18.8" Response time : 8 ms Contrast: 1 000 : 1 with touch panel Brightness: 225 cd/m² with touch panel Viewing zone: horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up/down: 89°/ 89° Display colour: 16.7 million Pixel pitch h x v: 0.247 x 0.247 mm Native resolution: Full HD 1080p, 1920 x 1080 ( 2.1 megapixel) Horizontal sync : 31.5 – 82.3 KHz Vertical sync: 56 – 75 Hz Synchronization: Separate Sync Aspect ratio: 16 : 9 Light transmittance: 90%


Analog input connector: VGA (D-Sub) Digital input connector: DVI-D Inputs: USB (for touch connectivity)


Controls: On-Screen-Display and 5 front controls (Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select/ Auto, Power) User controls:contrast, brightness, auto adjust, H.position, V.position, H.size, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature Anti-theft-device: Kensington-lock™ prepared Safety: CE, TÜV-Bauart, VCCI, IP54 Tilt angle: 90° up; 5° down VESA mounting: 100 x 100 mm Colour: Black

Accessories Included

AC adapter, power cable, D-Sub signal cable, DVI-D signal cable, USB cable, Touch Panel Driver Disk (CD-ROM), quick start guide, safety guide


Power supply: DC 12V Power Supply Unit: external Power usage: 40 W typical; max. 3 W in Power management mode



22″ Multi-Touch Screen Spec Sheet

0.3MB – May 2018
